Servo-Controlled Electromechanical Universal Testing Machine (UTM) – 50 kN
Servo-Controlled Electromechanical Universal Testing Machine (UTM) – 50 kN
The Servo-Controlled Electromechanical Universal Testing Machine (UTM) – 50 kN is designed for material testing applications, including tensile, compression, and flexural testing with suitable fixtures. The specified configuration includes a 50 kN capacity, multiple load cells, PC-based software, and testing accessories for different materials. The machine configuration and supplied accessories should be confirmed against the applicable technical requirements.
MODEL
IUTM-50kN
OVERVIEW
Description

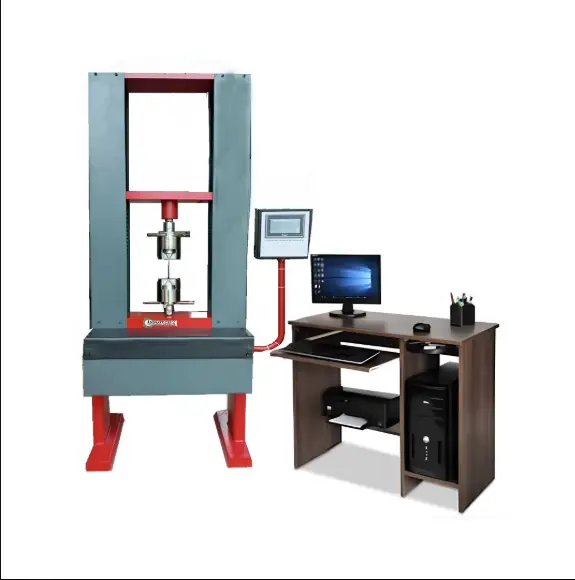

Servo-Controlled Electromechanical Universal Testing Machine (UTM) – 50 kN
The Servo-Controlled Electromechanical Universal Testing Machine (UTM) – 50 kN is intended for material testing in industrial quality control, research, and laboratory environments. It is specified for evaluating material behaviour under different loading conditions using suitable grips, fixtures, and extensometers.
The specified system includes a twin-column frame with ball screw drive, an AC servo motor with servo drive, PC-based control software, and accessories for various testing applications.
Key Features
- 50 kN testing capacity.
- Servo-controlled electromechanical operation.
- Multiple load cells: 1kN, 5kN, and 50 kN.
- PC-based software supportingm ASTM, ISO and IS test methods with automatic calculations.
- Long-stroke displacement extensometer.
- USB/Ethernet communication.
- Fixtures and grips specified for different material testing applications.
- Installation, commissioning, and on-site training as specified in the tender requirements.
Applications
The specified configuration supports material testing applications using the appropriate grips, fixtures, and test methods, including:
- Tensile testing
- Compression testing
- Three-point flexural testing
- Testing of films and rubber
- Foam testing
- Wide-fabric testing
- Shear testing
Enquiry for Universal Testing Machine – 50 kN
Contact Innotech Engineering Devices Private Limited for product details, configuration confirmation, and a quotation.
Location: Bhiwadi, Rajasthan, India
Phone: +91 9810431604
Email: info@innotechgroup.net
Website: www.innotechgroup.net
Consult to Expert for your material testing equipment requirements.
WHY IT WORKS
Key benefits
Multiple Testing Options: Supports different material testing applications using suitable fixtures and grips.
Digital Test Analysis: PC-based software supports automatic calculations using ASTM, ISO and IS test methods.
Wide Speed Range: Specified crosshead speed of 0.001–500 mm/min or better.
Displacement Measurement: Specified displacement resolution of 0.001 mm.
Configurable Testing Setup: Multiple load cells and application-specific accessories can support different testing requirements.
USE CASE
Application range
SPEC
Specifications
Capacity
50 kN
Machine Type
Servo-controlled Electromechanical UTM
Load Cell
1kN, 5kN, 50 kN
Load Cell Accuracy
±0.5% of indicated load
Load Resolution
1/500000 of full scale
Crosshead Speed
0.001–500 mm/min
Speed Accuracy
±0.1%
Effective Test Width
≥400 mm
Crosshead Travel
≥1000 mm
Distance between the column
400 mm
Vertical Test Space
≥1200 mm
Frame Type
Twin Column, Ball Screw Drive
Drive System
AC Servo Motor with Servo Drive
Extensometer
Long Stroke Displacement (ASTM D638/ISO 527,ASTM D882, ASTM D412)
Max. movement distance (mm):
1000 mm
Displacement Resolution
0.001 mm
Data Acquisition
≥1000 Hz
Controller
PC-based software
Software
ASTM, ISO & IS test methods with automatic calculations
Communication
USB/Ethernet
Power Supply
230 V AC, 50 Hz
Wedge grips
UPTO THICKNESS 20mm
Pneumatic grip for film & rubber
No specification stated
Compression platens
No specification stated
Three-point flexural fixture
No specification stated
Shear fixture
No specification stated
Fixture for Foam
No specification stated
Fixture for wide fabrics
No specification stated
Extensometer
No specification stated
latest PC Computer
i7, 8 GB RAM DDR4, 500 SSD, Display 27, keyboard, Mouse, Color printer (Inktankrefillable), A4 size, Scanning resolution 600 x 600 dpi (min. b/w-10 ppm, color-5 ppm)
UPS of suitable capacity with 30 min backup
No specification stated
Others Grip
No specification stated
DIM
Dimensions
Effective Test Width
≥400 mm
Distance between the column
400 mm
Crosshead Travel
≥1000 mm
Vertical Test Space
≥1200 mm
Max. movement distance (mm):
1000 mm
