Pin-on-Disc Wear and Friction Tester (Tribometer)

Why do some materials wear out faster than others when two surfaces rub against each other? The answer depends on factors such as material properties, applied load, sliding speed, surface condition and lubrication.

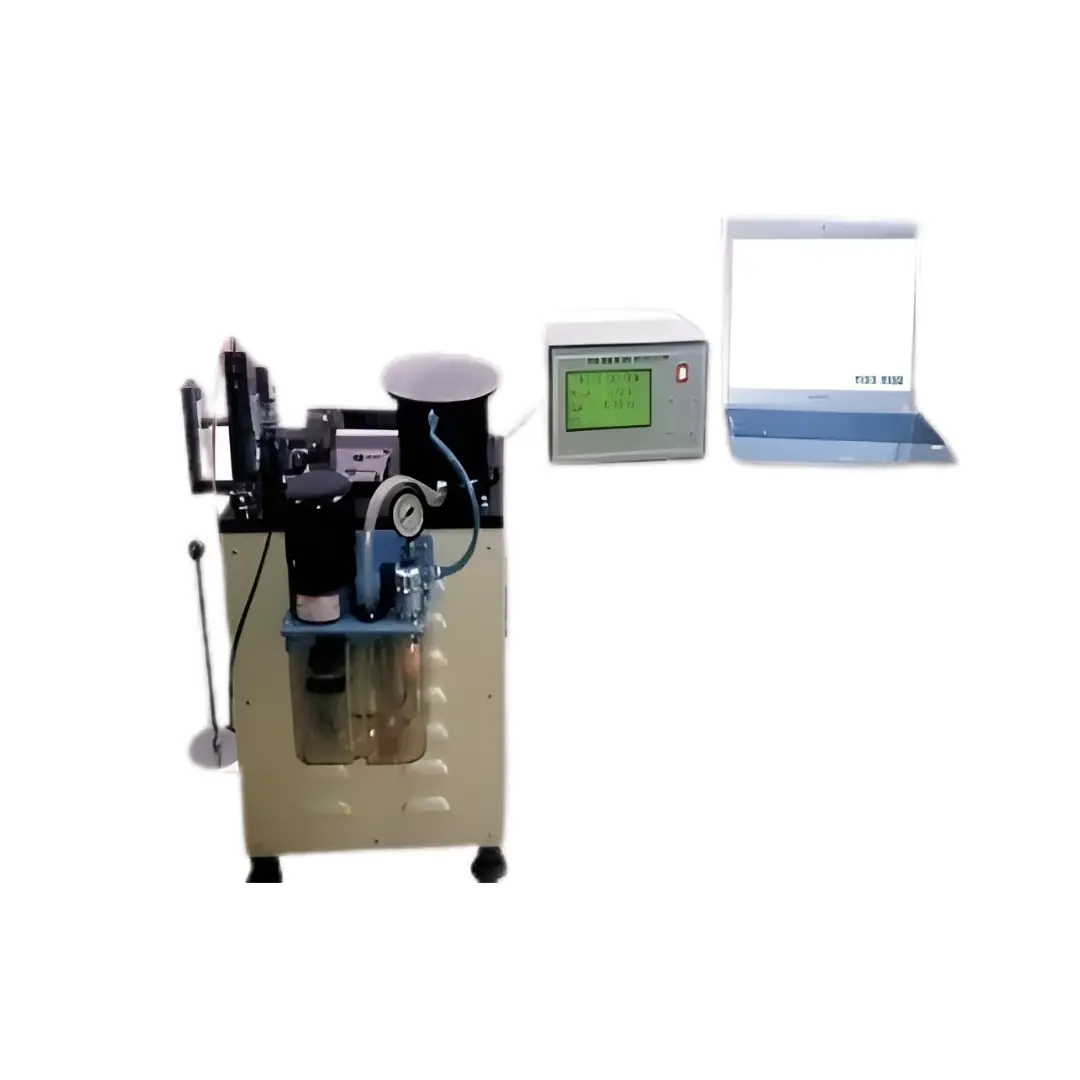

The Pin-on-Disc Wear and Friction Tester, also known as a Pin-on-Disc Tribometer, is a laboratory testing machine used to study friction and wear between materials under controlled sliding conditions.

Manufactured and supplied by Innotech Engineering Devices Private Limited, the machine is suitable for material testing laboratories, industrial research facilities, quality-control departments and product development applications. Its configuration can be discussed according to the required load range, speed, specimen dimensions, measurement parameters and data-recording needs.

What Is a Pin-on-Disc Wear and Friction Tester?

A Pin-on-Disc Wear and Friction Tester evaluates the frictional behaviour and wear of materials when one specimen slides against another.

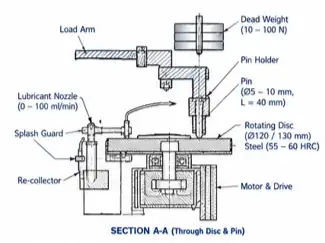

During the test, a pin or suitable specimen is placed against a rotating disc under a selected normal load. As the disc rotates, sliding contact occurs between the two surfaces. The machine can monitor relevant parameters such as friction force and wear, depending on its instrumentation and configuration.

The results help engineers compare materials and understand their behaviour under different testing conditions.

Working Principle of the Pin-on-Disc Tribometer

1. Specimen Preparation

2. Specimen Mounting

3. Disc Rotation

4. Friction and Wear Measurement

5. Result Evaluation

H2: Technical Specifications

Note: Final specifications and available measurement functions should be confirmed with the selected machine configuration and approved technical quotation.

Key Features

• Controlled Sliding Wear Testing
• Adjustable Test Speed
• Normal Load Application
• Friction Monitoring
• Wear Evaluation
• Digital Display
• Data Recording
• Lubrication Arrangement
• Application-Based Configuration




Parameters Evaluated During Testing

The machine can support the study of the following parameters, depending on its installed instrumentation:

• Friction Force
• Wear behaviour
• Coeffcient of friction, where supported by the measurement system
• Rotational speed
• Test Duration
• Material performance undere sliding contact

The coefficient of friction is generally calculated from the measured friction force and applied normal load. Wear evaluation depends on the available wear measurement method and test setup.

Applications

Material Testing Laboratories

Research and Development

Automotive Industry

Mechanical Engineering

Manufacturing and Quality Control

Educational and Research Institutions

Benefits of Using a Pin-on-Disc Wear Tester

• Helps compare the wear behaviour of different materials.
• Supports friction measurement under controlled conditions.
• Allows testing at selected loads and speeds within the machine's range.
• Provides useful information for material selection and development.
• Supports research into lubrication and surface performance.
• Helps laboratories records and review test data when suitable data-acquistion features are included.
• Supports product development and material performance evaluation.

Customization According to Customer Requirements

Different laboratories may require different test conditions, specimen sizes and measurement arrangements. Innotech Engineering Devices Private Limited can discuss the machine configuration according to the intended application and technical feasibility.

Requirements that can be discussed include:

• Normal load range
• Disc and specimen dimensions
• Sped requirements
• Friction and wear measurement arrangements
• Digital display and data-recording requirements
• Lubrication arrangements
• Additional accessories
• Electrical and installation requirements

Share your testing objectives and specimen details with our team so the appropriate configuration can be discussed.

How to Select the Right Pin-on-Disc Tribometer

Before requesting a quotation, consider the materials to be tested, required load and speed ranges, specimen dimensions, desired measurements and whether tests will be conducted under dry or lubricated conditions.

If you require additional features or a specific test procedure, share those details before finalizing the machine.

Frequently Asked Questions

What is a Pin-on-Disc Wear and Friction Tester used for?

It is used to evaluate friction and wear between materials under controlled sliding contact.

What is a Pin-on-Disc Tribometer?

A tribometer is an instrument used to study friction, wear and related surface interactions. A pin-on-disc tribometer uses a pin specimen against a rotating disc.

What materials can be tested?

Suitable metals, coatings and other engineering materials may be evaluated, depending on the specimen arrangement and test requirements.

Can the machine measure the coefficient of friction?

The coefficient of friction can be determined when the required friction force and normal load measurements are available.

Can testing be performed with lubrication?

A lubrication arrangement can be considered for applicable tests, subject to the selected machine configuration and test requirements.

Can the machine be customized?

Yes. Available configuration options can be discussed according to the intended application, specimen dimensions and required measurements.

Request a Quotation

Looking for a Pin-on-Disc Wear and Friction Tester for your material testing laboratory, research facility or industrial application?

Contact Innotech Engineering Devices Private Limited to discuss your specimen requirements, test parameters and preferred machine configuration.

Phone: 9810431604

Email: info@innotechgroup.net

Website: https://www.innotechgroup.net

Share your testing requirements with us to discuss a suitable machine configuration.
