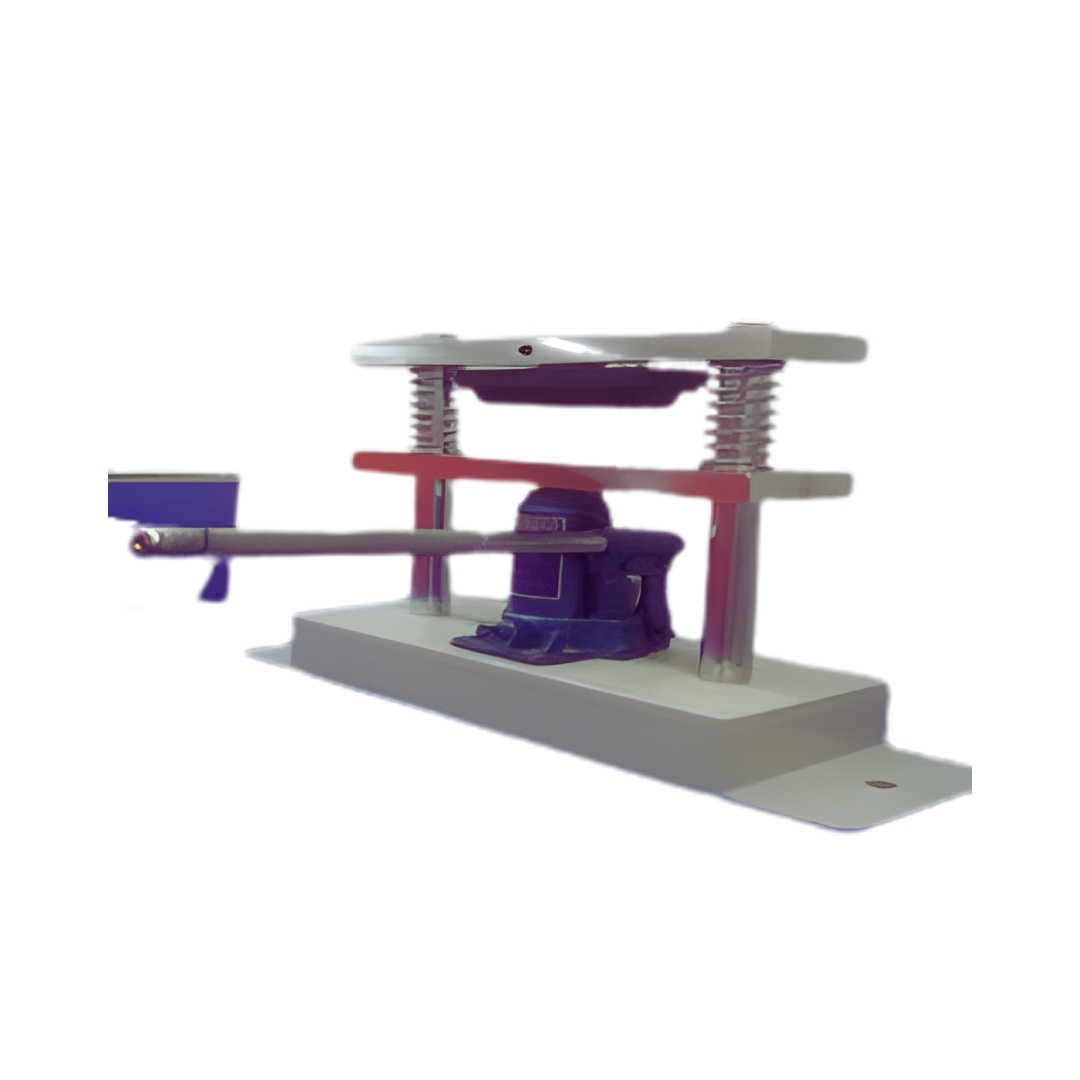

SAMPLE CUTTING PRESS - Image 1
SAMPLE CUTTING PRESS - Image 2
Click to enlarge
HOT AND COLD CHAMBER
HOT AND COLD CHAMBER
Back to products
DIGITAL BURSTING STRENGTH TESTER
DIGITAL BURSTING STRENGTH TESTER

SAMPLE CUTTING PRESS

Technical Specifications

(Specifications may vary by model and capacity)

  • Type: Hydraulic / Pneumatic / Manual Sample Cutting Press

  • Capacity: 5 Ton / 10 Ton / 20 Ton / 25 Ton / 30 Ton (or as required)

  • Pressing Area: 300 × 300 mm to 500 × 500 mm

  • Daylight Gap: 100 – 250 mm

  • Ram Stroke: Adjustable

  • Pressure Control: Manual / Digital Pressure Gauge

  • Operation Mode: Push Button / Foot Switch / Dual Hand Safety Control

  • Cutting Accuracy: High repeatability with clean edges

  • Platen Material: Hardened Steel / EN-grade Steel

  • Frame Construction: Heavy-duty welded steel frame

  • Power Supply: 230V / 415V AC, 50 Hz

  • Safety Features: Emergency stop, overload protection, safety guard

  • Standards Compliance: ASTM, ISO, IS, DIN, BS

Applications

  • Rubber and plastic testing laboratories

  • Automotive and aerospace material testing

  • Textile and leather industries

  • Packaging and polymer testing

  • Quality control and R&D labs

Key Features

  • Uniform cutting pressure

  • Rugged and vibration-free structure

  • Easy die replacement

  • Low maintenance operation

  • High operator safety

  • Suitable for standard and custom dies

Add to compare
Add to wishlist
Category: Tags: , , , , , , , , , , ,
Description

A Sample Cutting Press is a robust, precision-engineered machine used for preparing standardized test specimens from materials such as rubber, plastic, leather, textiles, paper, foams, and laminated sheets. The press applies uniform pressure through hydraulic or pneumatic force to cut samples accurately using standard or custom cutting dies. It ensures repeatability, clean edges, and compliance with international testing standards, making it ideal for quality control, R&D laboratories, and production environments.
