PIN ON DISC WEAR TESTING MACHINE
PIN ON DISC WEAR TESTING MACHINE
Add to compare
Quick view
Add to wishlist

PIN ON DISC WEAR TESTING MACHINE

Read more

Technical Specifications (Typical)

  • Test Type: Dry / Lubricated sliding wear test

  • Principle: Pin-on-disc tribological method

  • Disc Diameter: 100–165 mm (customizable)

  • Disc Material: Hardened alloy steel (or as required)

  • Speed Range: 100 – 2000 RPM (variable)

  • Load Range: 5 N to 200 N (dead weight or lever loading system)

  • Wear Track Radius: Adjustable

  • Friction Force Measurement: Strain gauge / load cell based

  • Coefficient of Friction Display: Digital real-time display

  • Wear Measurement: Linear displacement sensor / LVDT

  • Motor: Variable speed DC / AC motor with controller

  • Data Display: Digital display / Computerized interface (optional)

  • Data Output: USB / Software-based data logging (optional)

  • Power Supply: 220–240V AC, 50 Hz

  • Safety Features: Guard cover, overload protection

  • Standards Compliance: ASTM G99 / ISO 7148 (or equivalent)

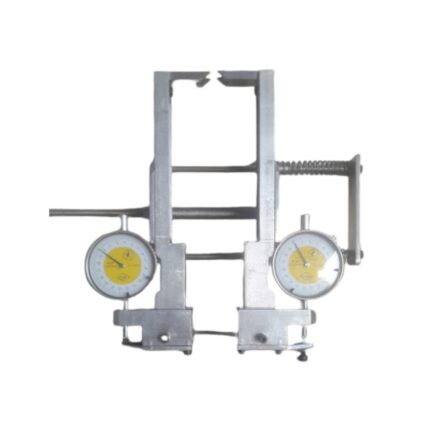

MECHANICAL EXTENSOMETER
MECHANICAL EXTENSOMETER
Add to compare
Quick view
Add to wishlist

MECHANICAL EXTENSOMETER

Read more

Technical Specifications

  • Measurement Type: Linear elongation / strain measurement

  • Gauge Length Options: 25 mm, 50 mm, 100 mm, 200 mm (customizable)

  • Measuring Range: 0–5 mm / 0–10 mm (model dependent)

  • Least Count / Resolution: Up to 0.001 mm (with dial indicator)

  • Accuracy: ±0.5% or better

  • Output Type: Mechanical dial reading

  • Mounting: Knife-edge or clip-on attachment

  • Frame Material: Hardened steel / aluminum alloy

  • Contact Points: Replaceable knife edges

  • Compatibility: Universal Testing Machines (UTM), Tensile Testing Machines

  • Operation: Manual

  • Power Requirement: Not required

  • Application Standards: ASTM / ISO compliant models available

UNIVERSAL-TESTING-MACHINE
UNIVERSAL-TESTING-MACHINE
Add to compare
Quick view
Add to wishlist

UNIVERSAL-TESTING-MACHINE

Read more

Technical Specifications

Load Capacity Range

  • From: 1 kN to 2000 kN (or higher depending on model)

  • Common ranges: 10 kN, 50 kN, 100 kN, 200 kN, 600 kN, 1000 kN

Machine Types

  • Electromechanical UTM

  • Servo Hydraulic UTM

  • Computerized / Digital UTM

Control Modes

  • Load control

  • Displacement control

  • Strain control

  • Pace rate control

Accuracy

  • Load accuracy: ±0.5% to ±1% of indicated load

  • Class 0.5 / Class 1 as per ISO standards

Load Measurement

  • High precision load cell

  • Multiple load cell options

Crosshead Travel

  • Typically 600–1200 mm (model dependent)

Speed Range

  • Very low to high test speeds

  • Example: 0.001 to 500 mm/min

Data Acquisition

  • Real-time force vs displacement curve

  • Stress–strain graph generation

  • PC based software with test reports

Safety Features

  • Overload protection

  • Emergency stop

  • Limit switches

  • Safety guards

Standards Compliance

  • ASTM

  • ISO

  • IS

  • EN

  • DIN

Common Tests Performed

  • Tensile test

  • Compression test

  • Flexural test

  • Shear test

  • Peel test

  • Tear test

  • Bend test

LOAD TESTING MACHINE
LOAD TESTING MACHINE
Add to compare
Quick view
Add to wishlist

LOAD TESTING MACHINE

Read more

Technical Specifications

  • Load Capacity Range: 50 kN to 5000 kN (customizable)

  • Type: Hydraulic / Electro-Mechanical

  • Control Mode: Manual / Semi-Automatic / Computerized

  • Load Measurement: Digital Load Cell / Pressure Sensor

  • Accuracy: ±1% or better

  • Display: Digital indicator / Computer software display

  • Resolution: High resolution load reading

  • Loading Rate Control: Adjustable

  • Frame Construction: Heavy-duty steel frame

  • Power Supply: 220V / 415V AC

  • Hydraulic System: Motorized hydraulic power pack

  • Data Output: USB / RS232 / Software-based reporting (computerized models)

  • Safety Features: Overload protection, emergency stop

  • Test Modes: Compression / Tension / Flexural (depending on model)

  • Standards Compliance: IS / ASTM / BS / EN standards (model dependent)

OPTICAL BRINELL HARDNESS TESTER
Add to compare
Quick view
Add to wishlist

OPTICAL BRINELL HARDNESS TESTER

Read more

Technical Specifications

  • Hardness Scale: Brinell (HBW / HBS)

  • Test Loads: 62.5 kgf, 100 kgf, 187.5 kgf, 250 kgf, 500 kgf, 750 kgf, 1000 kgf, 3000 kgf

  • Indenter Type:

    • Tungsten Carbide Ball

    • Hardened Steel Ball

  • Ball Diameters: 2.5 mm, 5 mm, 10 mm

  • Optical System:

    • Built-in measuring microscope or digital optical system

    • Magnification: 20× / 40× (model dependent)

  • Measurement Method: Manual or digital optical indentation measurement

  • Load Application: Dead-weight or hydraulic system

  • Dwell Time: Adjustable (typically 10–30 seconds)

  • Accuracy: Conforms to ASTM E10 / ISO 6506 standards

  • Specimen Height (Max): 200–300 mm (model dependent)

  • Throat Depth: 150–200 mm (model dependent)

  • Resolution: Up to 0.01 mm indentation measurement

  • Power Supply: 220–240 V AC, 50 Hz

  • Display:

    • Optical scale (manual models)

    • Digital display/software output (advanced models)

Add to compare
Quick view
Add to wishlist

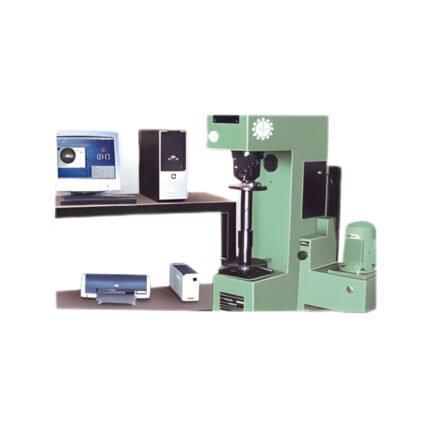

COMPUTERIZED BRINELL HARDNESS TESTER

Read more

Technical Specifications

  • Testing Method: Brinell Hardness (HB / HBW)

  • Load Range: 62.5 kgf to 3000 kgf (selectable as per model)

  • Load Application: Closed-loop servo motor / hydraulic with electronic control

  • Indenter: Tungsten Carbide Ball (Ø 1 mm, 2.5 mm, 5 mm, 10 mm)

  • Dwell Time: Programmable (1–99 seconds)

  • Measurement System: Digital optical system with CCD camera

  • Accuracy: Conforms to ASTM E10 / ISO 6506

  • Resolution: 0.01 HB

  • Display: PC-based software interface

  • Data Output: USB / LAN / Printer connectivity

  • Software Features:

    • Automatic indentation measurement

    • Statistical analysis

    • Test history storage

    • Report generation

  • Power Supply: 230V AC, 50 Hz

  • Standards Compliance: ASTM E10, ISO 6506, IS 1500

Add to compare
Quick view
Add to wishlist

COMPUTERIZED HYDRAULIC UNIVERSAL TESTING MACHINE

Read more

Technical Specifications

Capacity Range

  • 100 kN to 2000 kN (10 Ton to 200 Ton or higher)

Load Frame

  • Four-column or two-column rigid steel frame

  • High stiffness for accurate testing

Loading System

  • Hydraulic power pack with servo or proportional valve

  • Smooth and controlled load application

Control Mode

  • Computerized closed-loop control

  • Load, displacement, and strain control

Load Measurement

  • High-precision load cell or hydraulic pressure transducer

  • Accuracy: ±1% or better of indicated load

Crosshead Travel

  • Up to 300–500 mm (customizable)

Grips & Fixtures

  • Hydraulic wedge grips for tensile testing

  • Compression platens, bending fixtures, shear tools

Software Features

  • Real-time load vs displacement / stress-strain curves

  • Automatic calculation of UTS, yield strength, elongation

  • Test standard library (ASTM, ISO, BIS)

  • Test data storage, export, and printing

Display & Interface

  • PC-based system with LCD/LED monitor

  • Digital indicators for load, displacement, and extension

Power Supply

  • 415V AC, 3 Phase, 50 Hz

Safety Features

  • Overload protection

  • Emergency stop button

  • Hydraulic pressure relief valve

Add to compare
Quick view
Add to wishlist

COMPUTERIZED TENSILE TESTING MACHINE

Read more

Technical Specifications (Typical)

  • Capacity Range: 1 kN to 1000 kN (or higher on request)

  • Drive System: Servo motor / AC variable frequency drive / Hydraulic (as per model)

  • Load Measurement: High-precision strain gauge load cell

  • Accuracy: ±1% or better of indicated load

  • Crosshead Speed: 0.01 to 500 mm/min (programmable)

  • Speed Accuracy: ±1%

  • Stroke Length: 800 – 1200 mm (customizable)

  • Grips: Wedge, pneumatic, hydraulic, compression platens, bending fixtures

  • Control Mode: Load, displacement, and strain control

  • Software: PC-based testing software with graph plotting, test methods, and report generation

  • Data Output: Load vs extension, stress vs strain curves

  • Safety Features: Overload protection, limit switches, emergency stop

  • Power Supply: 230V / 415V AC, 50 Hz

  • Standards Compliance: ASTM E8, ASTM A370, ISO 6892, BIS standards

Add to compare
Quick view
Add to wishlist

SERVO CONTROLLED UTM

Read more

📊 Typical Technical Parameters

(Specifications vary by model & capacity: 100 kN–2000 kN or more)

Parameter Typical Range / Value
Load Capacity 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN, 2000 kN etc.
Load Accuracy ±1 % or better
Test Speed 0.001 to 500 mm/min (configurable)
Position Resolution 0.01 mm or better
Control Modes Load, strain/elongation, displacement, hold
Measurement Feedback Load cell, encoder/extensometer
Data Output Real-time graph, exportable results
