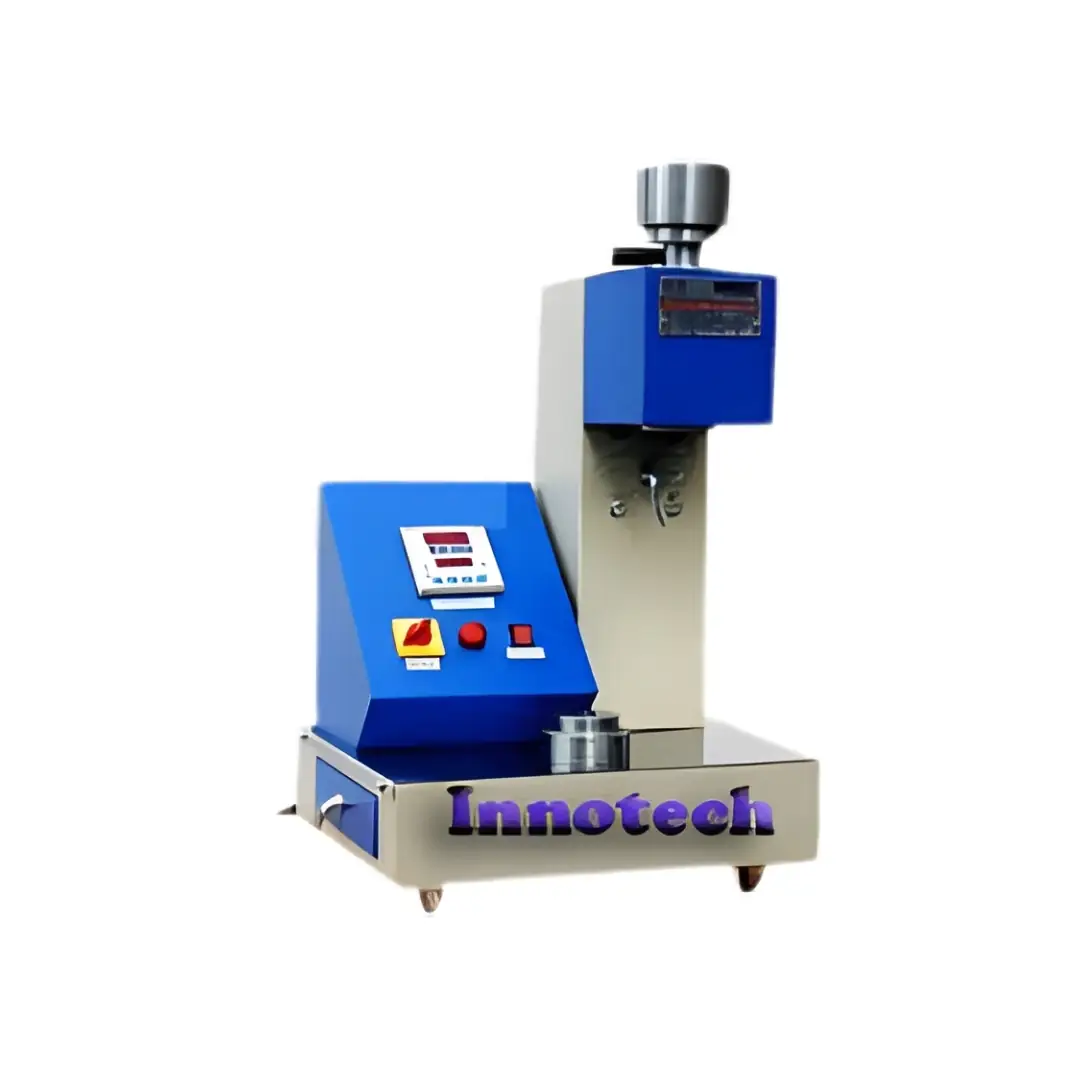

Digital Melt Flow Index Tester

Melt Flow Index Tester: Working Principle, Test Procedure, Applications and Importance

The flow behaviour of a thermoplastic material is an important consideration in plastic processing, manufacturing and quality control. A Melt Flow Index Tester is a laboratory testing instrument used to evaluate the melt flow behaviour of thermoplastic materials under controlled temperature and load conditions.

Melt Flow Index, commonly referred to as MFI, provides a useful indication of how easily a molten thermoplastic material flows under specified test conditions. The test can help manufacturers and laboratories compare materials, monitor raw material consistency and support quality-control activities.

A digital MFI tester provides controlled heating and test conditions, along with digital monitoring of relevant parameters depending on the machine configuration.

Innotech Engineering Devices Private Limited manufactures and supplies testing equipment for plastic, polymer and material testing applications, including digital Melt Flow Index testing equipment for laboratory and quality-control requirements.

What Is a Melt Flow Index Tester?

A Melt Flow Index Tester is a laboratory instrument used to determine the melt flow behaviour of thermoplastic materials.
During the test, a polymer sample is heated inside a controlled-temperature barrel until it reaches the required testing condition. A specified load is then applied to the material, causing the molten polymer to flow through a die.

The amount of material flowing through the die over a specified period is used to determine the melt flow characteristic of the material under the selected test conditions.

The test is useful for comparing thermoplastic materials and monitoring consistency between different batches of raw material.

What Is Melt Flow Index?

Melt Flow Index, or MFI, is an indicator of the flow behaviour of a thermoplastic material under specified temperature and load conditions.

It is commonly expressed as the mass of material that flows through a standard die during a specified time period under defined test conditions.

A higher measured melt flow value generally indicates greater flow under the particular test conditions, while a lower value indicates lower flow under those conditions.

However, MFI results should always be interpreted in relation to the material type and the specified test temperature and load. MFI is not a universal measurement of all processing or mechanical properties of a polymer.

Working Principle of a Melt Flow Index Tester

The working principle of an MFI tester is based on controlled heating of a thermoplastic material followed by extrusion through a standard die under a specified load.

The general process involves the following steps:

1. Sample Preparation

A suitable quantity of thermoplastic material is prepared for testing. Depending on the material and test requirements, the sample may be supplied in the form of pellets, granules or other suitable forms.

2. Heating the Material

The material is placed inside the heated barrel of the MFI tester.

The temperature is controlled according to the required testing condition so that the thermoplastic material reaches the specified molten state.

3. Application of Load

After the material reaches the required testing condition, a specified load is applied through the piston.

The load pushes the molten material towards the die.

4. Extrusion Through the Die

The molten polymer flows through the die under the applied load.

The quantity of material extruded over the specified period is measured or determined according to the test procedure.

5. MFI Evaluation

The resulting measurement is used to determine the melt flow characteristic of the tested material.

The result can then be used for material comparison, quality control and process-related evaluation.

What Does a Melt Flow Index Test Measure?

An MFI test provides information about the flow behaviour of a thermoplastic material under specified testing conditions.

It can help laboratories and manufacturers evaluate:

• Melt flow behaviour
• Material consistency
• Batch-to-batch variation
• Flow characteristics of thermoplastic raw materials
• Suitability for certain processing applications
• Differences between material grades
• Changes in material behaviour

The test result should be interpreted according to the material, test conditions and applicable testing procedure.

Melt Flow Index Test Procedure

The exact test procedure depends on the material and the selected test method. In general, an MFI test involves controlled temperature, a specified sample quantity, a specified load and measurement of material extruded through the die.

A typical workflow includes:
1. Prepare the thermoplastic sample.
2. Set the required temperature on the instrument.
3. Allow the barrel and test system to reach the required temperature.
4. Introduce the sample into the barrel.
5. Allow the material to reach the required test condition.
6. Apply the specified load.
7. Allow the molten polymer to flow through the die.
8. Collect or measure the extruded material according to the test procedure.
9. Determine the melt flow result.
10. Record and compare the test data.

Laboratories should follow the relevant test method and material-specific requirements when performing MFI testing.

Important Features of a Digital Melt Flow Index Tester

A digital MFI tester can include features designed to provide controlled and convenient laboratory testing.

Common features may include:

• Digital temperature control
• Digital temperature display
• Controlled heating system
• Stable testing temperature
• Controlled load application
• Melt flow evaluation
• Suitable test barrel and die arrangement
• Laboratory-oriented construction
• User-friendly operation
• Repeatable testing conditions
• Easy monitoring of test parameters
• Suitable design for plastic and polymer testing

The exact specifications and features depend on the machine model and configuration.

What Materials Can Be Tested Using an MFI Tester?

Melt Flow Index testing is generally associated with thermoplastic materials.

Depending on the test requirements and instrument configuration, applications can include:

• Thermoplastic polymers
• Plastic granules
• Plastic pellets
• Polymer compounds
• Plastic raw materials
• Thermoplastic processing materials
• Suitable polymer blends

The appropriate test temperature and load depend on the material and applicable test procedure.

Applications of Melt Flow Index Testing

MFI testing is used across several areas of the plastics and polymer industry.

Plastic Manufacturing

Plastic manufacturers can use MFI testing to monitor the consistency of incoming raw materials and production batches.

Polymer Manufacturing

Polymer producers can use melt flow measurements to characterize and compare suitable thermoplastic grades.

Quality Control Laboratories

MFI testing can support routine quality-control procedures by providing a repeatable way to compare material flow behaviour.

Raw Material Inspection

Manufacturers can test incoming plastic or polymer materials before using them in production.

Production Quality Control

MFI testing can be used as part of quality-control programs to monitor material consistency during manufacturing.

Research and Development

R&D laboratories can use MFI results when comparing polymer grades or studying changes in material behaviour.

Product Development

Melt flow characteristics can provide useful information during the development and selection of thermoplastic materials for different processing requirements.

Educational and Engineering Laboratories

MFI testers can also be used in laboratories for practical study of polymer flow behaviour and material testing.

Why Is Melt Flow Index Testing Important?

Thermoplastic materials can have different flow characteristics, and these characteristics can influence their processing behaviour.

MFI testing provides a relatively simple laboratory method for comparing the flow behaviour of thermoplastic materials under specified conditions.

It can support:
• Raw material quality control
• Batch comparison
• Material identification and comparison
• Process-related evaluation
• Supplier material verification
• Product development
• Research and development
• Production quality control
• Laboratory testing

MFI should be considered as one material characteristic rather than a complete measure of polymer quality.

Digital Melt Flow Index Tester for Quality Control

A Digital Melt Flow Index Tester provides controlled temperature operation and digital monitoring for laboratory MFI testing.

Digital controls can make it easier for operators to set and monitor the required test temperature. Depending on the machine configuration, digital displays can also provide convenient monitoring of test parameters.

For quality-control laboratories, consistent temperature control and proper test procedures are important for obtaining comparable results.

Benefits of Using a Melt Flow Index Tester

Controlled Temperature Testing

The instrument provides controlled heating of the test material according to the required test conditions.

Material Comparison

MFI testing can help laboratories compare the flow behaviour of different thermoplastic materials or batches.

Quality Control

Manufacturers can use MFI testing as part of raw material and production quality-control procedures.

Easy Laboratory Operation

Digital controls and displays can simplify routine testing and monitoring.

Repeatable Testing

Controlled test conditions can help laboratories perform consistent tests when the same procedure is followed correctly.

Product Development Support

MFI results can provide useful information during material selection and polymer product development.

MFI vs Melt Flow Rate

The terms Melt Flow Index (MFI) and Melt Flow Rate (MFR) are often used when discussing thermoplastic flow testing.
MFI commonly refers to the amount of polymer extruded through a specified die under defined temperature and load conditions over a specified time.

MFR is also used to describe the mass flow rate of molten polymer under specified conditions.

The terminology and reporting requirements should be considered according to the applicable test method and material being tested.

Factors That Can Affect Melt Flow Results

MFI results depend on the test conditions and characteristics of the material.

Important factors can include:
• Test temperature
• Applied load
• Material composition
• Polymer grade
• Sample preparation
• Moisture or conditioning of the material
• Residence time at the test temperature
• Test procedure
• Die condition
• Instrument condition

Because these factors can influence results, laboratories should maintain consistent testing procedures and appropriate equipment condition.

How to Choose the Right Melt Flow Index Tester?

When selecting an MFI tester, laboratories should consider the intended materials and testing requirements.

Temperature Control

Check the temperature range and temperature-control capability required for the materials to be tested.

Load Requirements

Consider the loads required for the intended test procedures

Die and Barrel Configuration

Ensure that the instrument configuration is suitable for the intended material and test method.

Digital Display and Controls

A clear digital display and convenient controls can simplify routine laboratory operation.

Testing Repeatability

Consider the machine's ability to maintain consistent test conditions.

Laboratory Requirements

Consider available workspace, operating environment, sample throughput and the type of testing performed in the laboratory.

Future Testing Requirements

If the laboratory expects to test additional polymer materials in the future, consider those requirements before selecting the instrument.

Melt Flow Index Tester for Plastic and Polymer Industries

Plastic and polymer industries require reliable methods for evaluating raw materials and maintaining consistent production quality.

An MFI tester can be used alongside other polymer and plastic testing equipment to evaluate different characteristics of materials.

It can support:
• Incoming material inspection
• Production quality control
• Material comparison
• Supplier evaluation
• R&D testing
• Product development
• Laboratory analysis

MFI testing is particularly useful when consistent test conditions are maintained and results are interpreted together with other relevant material properties.

Melt Flow Index Tester Manufacturer in India

Innotech Engineering Devices Private Limited manufactures and supplies testing equipment for material testing laboratories and industrial applications.

Our Digital Melt Flow Index Tester is designed for evaluating the melt flow behaviour of suitable thermoplastic materials under controlled temperature and load conditions.

The equipment can be suitable for plastic manufacturers, polymer industries, quality-control laboratories, R&D facilities and educational or engineering laboratories, depending on the required testing application.

For organizations looking for Melt Flow Index Tester manufacturers and suppliers in India, Innotech Engineering Devices Private Limited provides laboratory testing equipment for plastic and polymer testing applications.

Frequently Asked Questions About Melt Flow Index Testers

What is a Melt Flow Index Tester used for?

A Melt Flow Index Tester is used to evaluate the melt flow behaviour of thermoplastic materials under specified temperature and load conditions.

What does MFI mean in plastics?

MFI stands for Melt Flow Index. It is a measurement related to the amount of molten thermoplastic material that flows through a specified die under defined test conditions over a specified period.

Which materials can be tested using an MFI tester?

MFI testers are generally used for suitable thermoplastic polymers, plastic granules, pellets, polymer compounds and other compatible thermoplastic materials.

Why is MFI testing important?

MFI testing can help manufacturers and laboratories compare thermoplastic materials, monitor batch consistency, inspect raw materials and support quality-control and product-development activities.

What is the difference between MFI and MFR?

MFI and MFR are closely related terms used to describe thermoplastic melt flow behaviour. The exact terminology and reporting method depend on the applicable testing procedure.

Does a higher MFI mean better plastic quality?

Not necessarily. A higher MFI indicates greater flow under the specified test conditions, but it does not by itself mean that a material is better or worse. The appropriate MFI depends on the material and intended application.

Why is temperature important in MFI testing?

Temperature affects the viscosity and flow behaviour of molten polymer. Therefore, maintaining the specified test temperature is important for obtaining meaningful and comparable results.

What factors affect MFI test results?

Temperature, applied load, material composition, sample preparation, moisture, residence time, die condition and test procedure can all influence the measured result.

Where are Melt Flow Index Testers used?

MFI testers are used in plastic manufacturing, polymer production, quality-control laboratories, material testing laboratories, R&D facilities, product development and educational laboratories.

Conclusion

A Melt Flow Index Tester is a useful laboratory instrument for evaluating the flow behaviour of thermoplastic materials under controlled temperature and load conditions.

MFI testing can support raw material inspection, batch comparison, quality control, material development and polymer research. By maintaining appropriate test conditions and following the applicable testing procedure, laboratories can obtain useful and comparable information about thermoplastic melt flow behaviour.

For plastic and polymer manufacturers, material testing laboratories and R&D facilities, a properly selected Digital Melt Flow Index Tester can become an important part of a broader material testing and quality-control system.

Innotech Engineering Devices Private Limited manufactures and supplies material testing equipment for plastic, polymer and other laboratory testing applications.

For more information about Melt Flow Index Testers and Plastic & Polymer Testing Equipment, contact Innotech Engineering Devices Private Limited.
