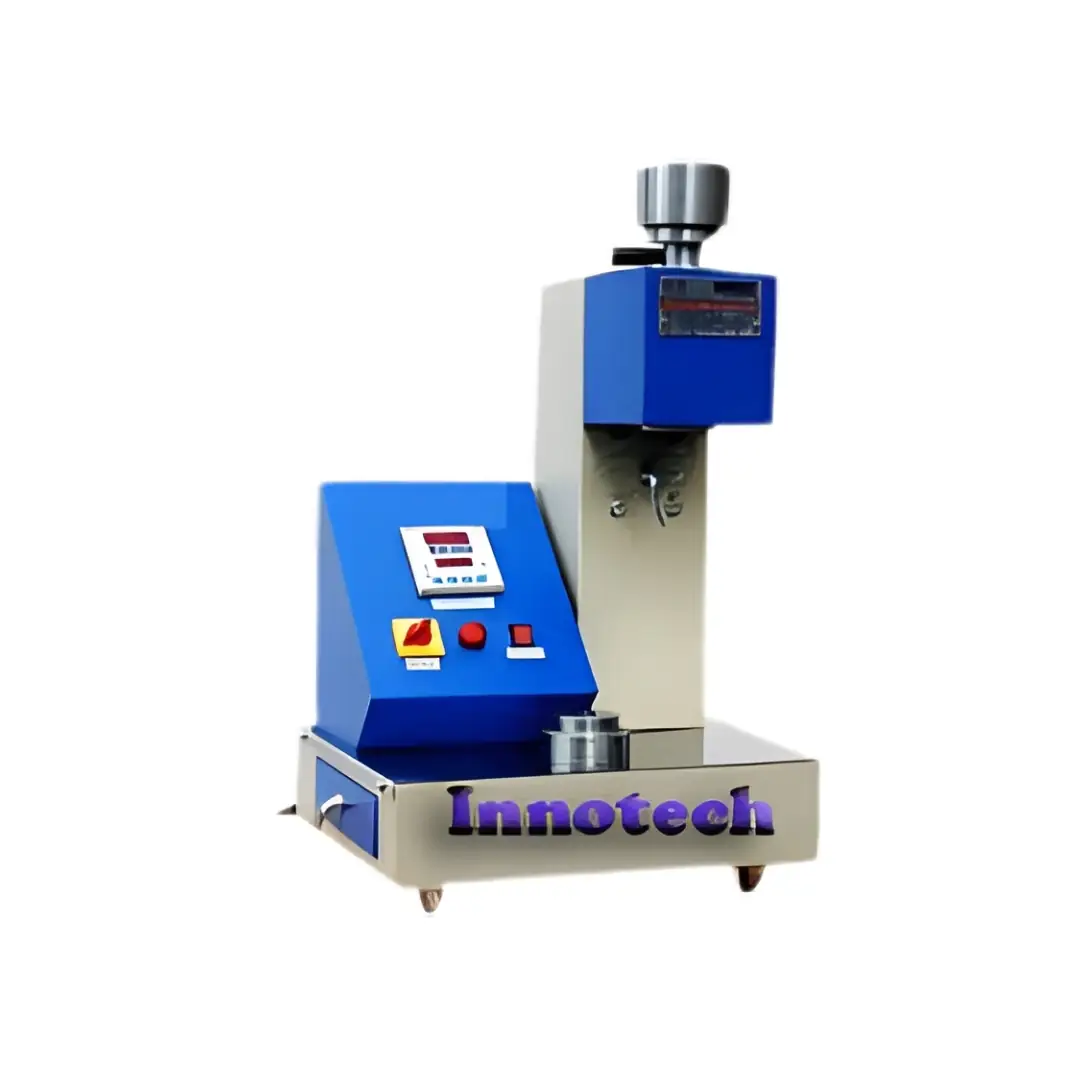

Digital Melt Flow Index (MFI) Tester

How can plastic manufacturers check whether incoming polymer material has consistent flow characteristics before using it in production? A Digital Melt Flow Index (MFI) Tester helps answer this question by measuring the flow rate of molten thermoplastic material under specified temperature and load conditions.

Melt flow testing is widely used in the plastics industry for raw material inspection, batch comparison, production quality control and polymer research. It provides a practical way to compare the flow characteristics of suitable thermoplastic materials under defined testing conditions.

Manufactured and supplied by Innotech Engineering Devices Private Limited, the Digital Melt Flow Index Tester is intended for plastic processing industries, polymer manufacturers, material testing laboratories and quality-control departments.

What Is a Digital Melt Flow Index Tester?

A Digital Melt Flow Index Tester is a laboratory instrument used to determine the melt flow rate of suitable thermoplastic materials. The sample is heated inside a barrel to the specified test temperature, and a defined load forces the molten polymer through a standard test die.

The amount of material extruded during a specified period is measured according to the selected test procedure. Results can be used to compare material batches and support routine quality-control decisions.

Digital temperature monitoring helps the operator monitor an important test parameter during the process.

What Is Melt Flow Index (MFI)?

Melt Flow Index, commonly known as MFI, is a measure of the mass of molten thermoplastic material that flows through a specified die over a defined period under prescribed test conditions. It is commonly expressed in grams per 10 minutes (g/10 min) when reported as melt mass-flow rate.

MFI is useful for comparing materials tested under the same conditions. However, the result depends on the test temperature, applied load and material characteristics. It should not be treated as a complete measure of every property or actual processing behaviour of a polymer.

Working Principle

The tester works by heating a polymer sampel and applying a specified load to force the molten material through a die.

The general testing process includes:

1. Sample Preparation

2. Sample Loading

3. Temperature Stabilisation

4. Application of Load

5. Measurement and Evaluation

Features

• Digital Temperature Control
• Digital Display
• Controlled Test Conditions
• Melt Flow Evaluation
• Laboratory-Oriented Design
• Convenient Operation
• Repeatable Test Procedures
• Robust Construction

Exact features, measurement arrangements and available accessories depend on the supplied machine configuration.

Technical Specification

Parameter	Details
Equipment name	Digital Melt Flow Index (MFI) Tester
Testing application	Melt Flow evaluation of thermoplasatic materials
Temperature control	Digital temperature control
Display	Digital display
Test principle	Extrusion of milten polymer through a specified die under load
Test temperature	As required by the selected material and test method
Test Load	As required by the selected material and test method
Measurement method	According to the supplied configuration
Test standards	ASTM D1238 or ISO 1133, subject to verified machine configuration and applicable procedure

Application

Plastic testing, polymer evaluation and quality control

Note: Maximum operating temperature, available test loads, temperature accuracy, die dimensions, measurement resolution and other model-specific specifications should be confirmed before purchase. Do not assume compliance with a standard unless the supplied configuration supports the required procedure.

Applications

The Digital Melt Flow Index  Tester can support a variety of  plastic and polymer testing activities, including:

• Plastic manufacturing and processing
• Polymer production
• Plastic raw material inspection
• Incoming material quality control
• Batch to Batch material comparison
• Polymer compund evaluatin
• Plastic product development
• Production quality monitoring
• Research and development
• Material testing laboratories
• Educational and engineering laboratories
• Supplier material evaluation

Materials Suitable for MFI Testing

Depending on the machine configuration and test conditions, the tester can be used for suitable thermoplastic materials such as:

• Polyethylene (PE)
• Polypropylene (PP)
• Polystyrene (PS)
• Acrylonitrile butadiene styrene (ABS)
• Other suitable thermoplastic polymers
• Plastic granules and pellets
• Thermoplastic compounds

The appropriate temperature, test load and procedure must be selected for the specific material. Not every polymer can be tested under the same conditions.

Benefits

1. Raw Material Inspection
2. Batch Comparison
3. Quality Control
4. Material Evaluation
5. Production Monitoring
6. Research and Development

MFI results should be interpreted alongside other relevant material tests and production requirements rather than used as the only measure of polymer quality.

How to Select the Right Melt Flow Index Tester

Before purchasing an MFI testing machine, consider the following factors:

• Types of polymers to be tested
• Required test temperature range
• Required test loads
• Applicable test procedure
• Die and accessory requirements
• Temperature control accuracy
• Measurement and display arrangements
• Manual or automated measurement requirements
• Test frequency and laboratory workload
• Data recording and reporting needs

If you are unsure which configuration is suitable, share the polymer name, available material datasheet and intended test method with our team. We can discuss the requirements before finalising the machine configuration.

Digital Melt Flow Index Tester Manufacturer in Bhiwadi, Rajasthan

Innotech Engineering Devices Private Limited manufactures and supplies testing equipment for material testing laboratories and industrial quality-control applications.

Our Digital Melt Flow Index Tester is intended for evaluating the melt flow characteristics of suitable thermoplastic materials under controlled test conditions. The appropriate configuration can be discussed according to your polymer type, test requirements and laboratory application.

We serve customers looking for melt flow index testing equipment in Bhiwadi, Rajasthan, and other locations across India.

Frequently Asked Questions

What is a Digital Melt Flow Index Tester used for?

It is used to determine the melt flow rate of suitable thermoplastic materials under specified temperature and load conditions. The results help with material comparison and quality control.

What does MFI stand for?

MFI stands for Melt Flow Index. It is commonly used to describe the flow rate of molten thermoplastic material under defined testing conditions.

What is the unit of Melt Flow Index?

Melt mass-flow rate is commonly expressed in grams per 10 minutes (g/10 min).

Which materials can be tested using an MFI Tester?

Suitable thermoplastic materials, including selected grades of polyethylene, polypropylene, polystyrene and ABS, may be tested using the appropriate temperature, load and procedure.

Why is temperature control important in MFI testing?

Temperature affects the flow behaviour of molten polymers. Maintaining the specified test temperature is important for obtaining meaningful and comparable results.

Is MFI testing useful for quality control?

Yes. It can help manufacturers compare incoming materials and production batches. Results should be interpreted using the relevant material specifications and other necessary quality checks.

Which standards are used for melt flow testing?

ASTM D1238 and ISO 1133 are recognised methods for determining the melt mass-flow rate and, where applicable, melt volume-flow rate of thermoplastics. The correct procedure and test conditions depend on the material and testing requirements.

How can i select the right MFI Tester?

Consider the polymre type, rquired test temperature, test load, applicable method, measurement arrangement and laboratory workload. Confirm the available specifictiuon with the supplier before ordering.

Request a Quote for a Digital Melt Flow Index Tester

Looking for a Digital Melt Flow Index Tester for your plastic or polymer testing laboratory? Contact Innotech engineering Devices Private Limited to discuss your application and machine requirements.

If you do not know the exact testing specification, you can share the polymer name, material datasheet or a photograph of your existing test setup. Our team can help clarify the requirements for selecting a suitable configuration.
