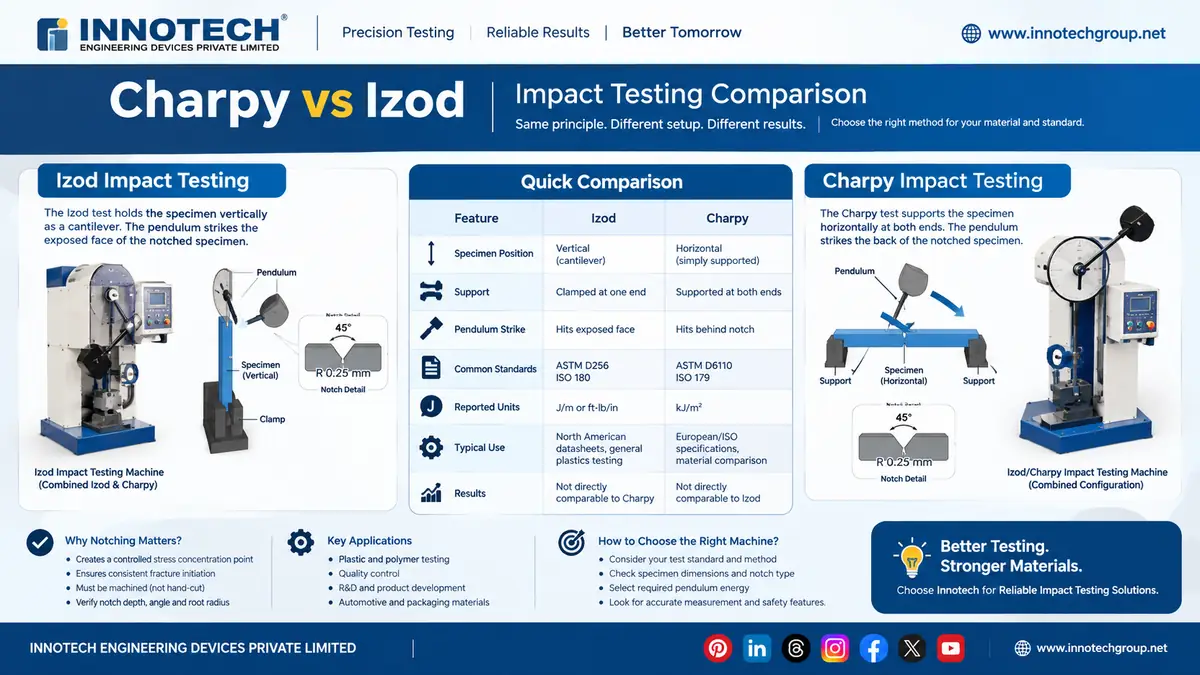

Izod vs Charpy Impact Testing of Plastics: Methods, Notching & Machine Selection

Plastic products and polymer components can experience sudden impacts during transportation, assembly, handling and actual service. A material may have good tensile strength and still fail when exposed to a sudden shock. Impact testing helps laboratories understand how a plastic material behaves when a rapidly applied load causes fracture.

Two widely used pendulum impact methods for plastics are Izod impact testing and Charpy impact testing. Both methods use a pendulum impact tester to apply a controlled impact to a prepared specimen and determine the energy absorbed during fracture. However, the specimen arrangement, support conditions, notch orientation and reporting requirements are different.

An Izod and Charpy Impact Testing Machine can be configured to perform both types of impact tests, making it useful for laboratories that evaluate different plastics, polymers and engineering materials according to their applicable testing procedures.

What Is Impact Testing of Plastics?

Impact testing measures the ability of a material to absorb energy when subjected to a sudden load. Unlike a slowly applied tensile or compression test, an impact test applies energy over a very short period.

The result provides useful information about the material's resistance to sudden fracture. This is particularly important for plastics used in products that may experience accidental drops, knocks, assembly impacts or sudden loading.

Impact behaviour can be influenced by several factors, including:

* Polymer type
* Material formulation
* Reinforcement and fillers
* Specimen thickness
* Temperature
* Moisture and conditioning
* Notch geometry
* Manufacturing process
* Specimen orientation
* Test method

Therefore, impact results should always be interpreted according to the applicable test standard and specimen preparation procedure.

What Is an Izod Impact Test?

The Izod impact test is a pendulum impact method in which the specimen is generally held vertically as a cantilever. The specimen is secured at one end while the pendulum strikes the exposed portion.

For notched testing, the notch is positioned according to the applicable standard and test configuration. When the pendulum strikes the specimen, the specimen may fracture at the notch and the energy absorbed during the impact is determined.

Izod testing is widely used for evaluating the impact behaviour of plastics and polymer materials.

ASTM D256 and ISO 180 are important standards associated with Izod impact testing of plastics. The exact specimen dimensions, notch geometry, conditioning and reporting requirements should be followed according to the applicable standard.

What Is a Charpy Impact Test?

The Charpy impact test also uses a pendulum to deliver a sudden impact to a specimen. However, the specimen is supported at both ends rather than being clamped as a cantilever.

The pendulum strikes the specimen in the specified impact position, and the energy absorbed during fracture is determined.

Charpy testing of plastics is covered by standards such as ASTM D6110 and ISO 179, with the applicable part and procedure depending on the testing requirement.

Charpy testing is useful for studying the impact behaviour of plastics, polymers and other engineering materials where the specified material standard calls for this method.


The numerical results from Izod and Charpy testing should not be directly converted or compared as though they represent the same test. Differences in specimen geometry, support conditions and impact configuration can influence the measured result.

Why Is Notching Important in Plastic Impact Testing?

Notching is one of the most important parts of specimen preparation for many impact tests.

A notch creates a controlled stress-concentration point in the specimen. During impact, the crack can initiate from this defined location, allowing laboratories to compare material behaviour under controlled conditions.

Small differences in notch preparation can affect the test result. Factors that need attention include:

* Notch depth
* Notch angle
* Notch root radius
* Specimen dimensions
* Surface finish
* Notching tool condition
* Cutting speed
* Burrs or damage around the notch

A poorly prepared notch may introduce unintended stress concentrations or damage that can influence fracture behaviour.

For this reason, laboratories should use suitable specimen preparation and notching equipment rather than relying on inconsistent manual methods.

Izod and Charpy Impact Testing Machine

An Izod and Charpy Impact Testing Machine is designed to perform pendulum impact testing according to the required test configuration.

A suitable machine can provide a controlled pendulum impact and allow the operator to measure the energy associated with specimen fracture. Depending on the machine configuration, interchangeable fixtures or testing arrangements can allow both Izod and Charpy testing to be carried out using the same basic equipment.

For laboratories testing multiple grades of plastics and polymers, a combined impact tester can reduce the need for separate machines while providing flexibility for different testing procedures.

The machine selection should always be based on the required standards, specimen dimensions, pendulum energy, fixture arrangement and laboratory testing requirements.

Applications of Izod and Charpy Impact Testing

Izod and Charpy impact testing can be used in several areas of plastic and polymer evaluation.

Plastic Material Testing

Manufacturers and laboratories can evaluate the impact behaviour of thermoplastics and engineering plastics.

Polymer Research and Development

Impact testing helps researchers compare material formulations and investigate how additives, reinforcement and processing affect impact behaviour.

Quality Control

Production laboratories can use impact testing as part of quality-control procedures where the applicable material specification requires impact resistance evaluation.

Automotive Components

Plastic and polymer components used in automotive applications may require impact evaluation because components can experience sudden loading during service, handling or assembly.

Packaging Materials

Selected rigid and semi-rigid plastic packaging materials can be evaluated for resistance to impact according to their applicable testing requirements.

Product Development

Impact testing can help engineers compare candidate materials during the development of plastic components and products.

Educational and Research Laboratories

Universities, engineering institutions and research centres can use pendulum impact testers to demonstrate and investigate material fracture behaviour.

How to Select the Right Impact Testing Machine?

Choosing an impact tester should begin with the test standard and application rather than simply selecting a machine based on maximum pendulum energy.

Important factors include:

* Required test method: Izod, Charpy or both
* Applicable ASTM or ISO standard
* Specimen dimensions
* Notched or unnotched testing requirements
* Required pendulum energy
* Fixture and striker configuration
* Measurement and display requirements
* Laboratory space
* Safety features
* Calibration requirements
* Future testing requirements

If a laboratory performs both Izod and Charpy tests, a combined machine configuration can be considered.

Importance of Specimen Conditioning

Plastic impact properties can change with temperature, moisture and conditioning history. Therefore, specimens should be conditioned according to the applicable test method before testing.

Testing specimens under inconsistent environmental conditions can make it difficult to compare results between batches.

Laboratories should maintain consistent specimen preparation, conditioning, test configuration and reporting procedures whenever comparative impact data is required.

Advantages of Izod and Charpy Impact Testing

Pendulum impact testing provides a practical way to investigate the sudden-impact behaviour of plastics and polymers.

Key advantages include:

* Measures resistance to sudden impact
* Helps compare different plastic formulations
* Useful for material development
* Supports quality-control procedures
* Suitable for research laboratories
* Can be used for different impact test configurations
* Provides quantitative impact-energy measurements
* Helps identify differences in material fracture behaviour

Why Choose Innotech Engineering Devices for Impact Testing Equipment?

Innotech Engineering Devices Private Limited manufactures and supplies testing equipment for material testing, plastics, polymers and laboratory applications.

Our Izod and Charpy Impact Testing Machine is intended for laboratories requiring controlled pendulum impact testing of suitable specimens. The machine configuration can be selected according to the required test method and application.

For laboratories working with multiple plastic and polymer materials, an appropriate Izod/Charpy configuration can provide a practical testing solution while supporting standardized specimen preparation and impact evaluation.

Before purchasing an impact tester, laboratories should identify the applicable testing standards, specimen requirements and testing objectives so that the machine can be configured appropriately.

Frequently Asked Questions

What is the difference between Izod and Charpy impact testing?

The primary difference is the specimen configuration and support arrangement. Izod testing generally uses a vertically clamped cantilever specimen, while Charpy testing generally uses a horizontally supported specimen. The two test results should not be treated as directly interchangeable.

Can the same machine perform both Izod and Charpy tests?

Yes. An appropriately configured combined Izod and Charpy Impact Testing Machine can perform both test methods using the required fixtures and testing arrangements.

Why is a notch used in plastic impact testing?

A notch creates a controlled stress-concentration location where fracture can initiate. This helps provide more consistent and comparable impact testing conditions.

Does notch quality affect impact test results?

Yes. Notch depth, geometry, root condition, surface finish and specimen preparation can influence impact behaviour and therefore the measured result.

Which standards are used for Izod impact testing of plastics?

ASTM D256 and ISO 180 are commonly associated with Izod impact testing of plastics. The applicable edition and detailed procedure should be confirmed for the specific material and testing requirement.

Which standards are used for Charpy impact testing of plastics?

ASTM D6110 and the applicable ISO 179 procedure are associated with Charpy impact testing of plastics. Laboratories should verify the applicable standard and edition for their specific application.

Can Izod and Charpy values be directly compared?

No. Because the test configurations and specimen loading conditions differ, values from the two methods should not be treated as directly equivalent.

What materials can be tested using an Izod and Charpy Impact Testing Machine?

Depending on the machine configuration and applicable test procedure, the equipment can be used for suitable plastics, polymers and other engineering materials.

Why is specimen conditioning important?

Temperature, moisture and conditioning history can influence the impact behaviour of plastics. Consistent conditioning helps laboratories obtain meaningful and comparable test results.

How should I select an Izod and Charpy Impact Testing Machine?

Start by identifying the required test standard, test method, specimen dimensions, notch requirements, pendulum energy and fixture configuration. The machine should then be selected according to those testing requirements.

Conclusion

Izod and Charpy impact testing are important methods for understanding how plastics and polymers respond to sudden loading. Although both methods use pendulum impact principles, their specimen configurations and testing procedures are different.

Proper specimen preparation, accurate notching, conditioning and selection of the correct testing standard are essential for obtaining meaningful results. For laboratories that need flexibility between the two methods, an appropriately configured Izod and Charpy Impact Testing Machine can provide a practical solution for plastic and polymer impact testing.
