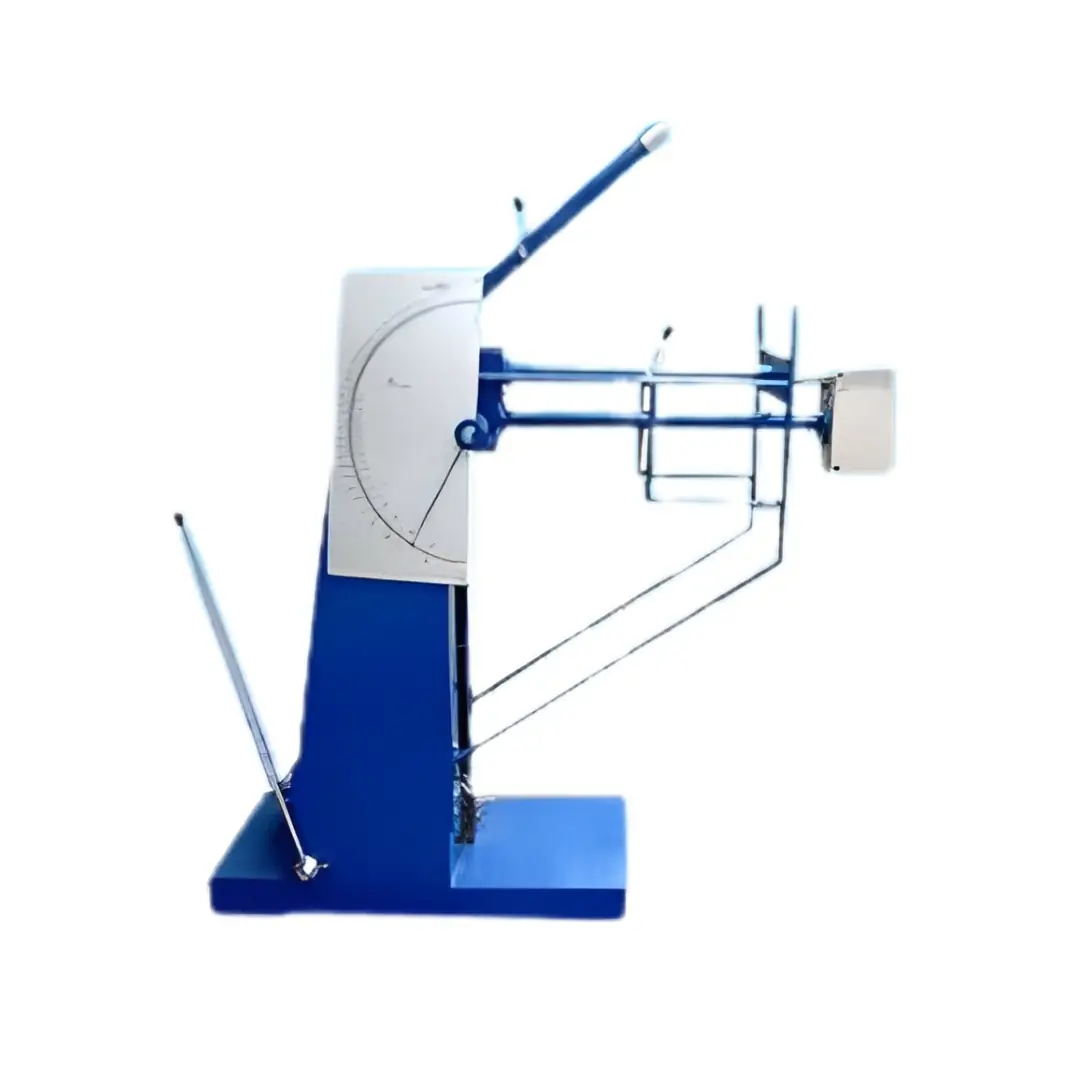

Izod and Charpy Impact Testing Machine

How does a material respond when it is struck suddenly rather than loaded gradually? Understanding this behaviour is important when evaluating the impact resistance and fracture characteristics of engineering materials.

An Izod and Charpy Impact Testing Machine is a pendulum-type testing instrument used to evaluate the energy absorbed by a specimen during impact. It helps laboratories study material behaviour under sudden loading and supports quality control, material comparison, research and product development.

A combined machine designed for both Izod and Charpy testing can perform the two methods using the appropriate specimen supports, fixtures and test arrangements.

Innotech Engineering Devices Private Limited manufactures and supplies material testing equipment for industrial laboratories, research facilities, educational institutions and quality-control departments.

What Is an Izod and Charpy Impact Testing Machine?

An Izod and Charpy Impact Testing Machine uses a swinging pendulum to strike a prepared specimen under defined testing conditions.

The pendulum has a known initial energy. When it strikes the specimen, some of that energy may be absorbed during deformation and fracture. The absorbed impact energy is determined from the pendulum's energy change using the machine's measurement system and the applicable test procedure.

Izod and Charpy are two different impact-testing methods. They differ in specimen orientation, support arrangement and impact configuration. The appropriate method depends on the material, specimen dimensions and applicable testing standard.

Working Principle

The machine operates using the potential energy of a raised pendulum, which is converted into kinetic energy as the pendulum swings.

The general testing procedure involves:

1. Specimen preparation
2. Specimen positioning
3. Pendulum positioning
4. impact application
5. Energy evaluation
6. Result recording

The exact procedure, energy range and measurement method depend on the machine model and selected test method.

Izod Impact Testing

Izod impact testing evaluates how a suitable specimen responds to a sudden impact using the prescribed Izod arrangement.

In a typical Izod test, the specimen is positioned vertically and held at one end. The pendulum strikes the specimen at the specified location. For notched specimens, the notch orientation must follow the relevant test method.

The energy absorbed during impact can be used to evaluate the specimen's impact behaviour according to the applicable test procedure.

Izod testing is commonly used for suitable plastics and polymer materials, although the actual application depends on the machine configuration and testing requirements.

Charpy Impact Testing

Charpy impact testing evaluates a specimen's response to a pendulum strike while it is supported between two points.

In a typical Charpy arrangement, the specimen is positioned horizontally on two supports. The pendulum strikes the specimen at the prescribed location, and the energy absorbed during impact is determined according to the applicable test method.

Charpy testing is widely used for evaluating the impact behaviour of suitable metallic materials and can also be applied to other materials when the appropriate method and equipment are available.

Difference Between Izod and Charpy Impact Tests

Comparison	Izod Impact Test	Charpy Impact Test
Typical specimen orientation	Vertical	Horizontal
Specimen support	Typically held at one end	Supported at two points
Impact arrangement	Strikes the specimen in the prescribed Izod configuration	Strikes the specimen in the prescribed Charpy configuration
Common Application	Suitable plastic, polymers and other specified materials	Suitable metals and other specified materials
Specimen preparation	Must follow the selected Izod method	Must follow the selected Charpy method
Main evaluation	Impact energy and material response under the speciied method	Impact energy and material response under the specifed method

Although both methods use a pendulum, their specimen arrangements and test requirements are different. Results obtained using one method should not automatically be treated as equivalent to results from the other.

Key Features of Izod and Charpy Impact Testing Machine

Feature	Description
Pendulum impact mechanism	Uses a swinging pendulum to applyu impact to the specimen
Dual-method capability	Supports Izod and Charpy testing when the machine is dsigned and equipped for both methods.
Specimen support arrangement	Uses the appropiate supports and fixtures for the selected test
Impact energy evaluation	Enables impact energy to be determined according to the machine configuration
Specimen compatibility	Depends on the available supports, accessories and test procedure.
Laboratory application	Suitable fo rmaterial evaluation, research and quality control activities
Saftey provisions	Guarding and protective arrangements depends on the supplied model
Measurement system	The display, indication and recording functions depend on the machine configuration

Confirm the actual pendulum capacity, energy range, display functions, accessories and supported test methods before purchase.

Applications

Material Testing Laboratories

Metal and Alloy Testing

Plastic and Polymer Testing

Automotive Industry

Manufacturing Quality Control

Research and Development

Educational Institutions

Materials Suitable for Impact Testing

Depending on the machine configuration, specimen supports and applicable test method, impact testing may be suitable for:

• Steel and other suitabe metals
• Metallic alloys
• Plastics
• Polymers
• Other engineering materials specified by the relevant test procedure

Not every material can be tested using the same pendulum, specimen dimensions or support arrangement. Confirm compatibility before selecting the machine.

Benefits

• Impact energy evaluation
• Dual method testing
• Meterial comparison
• Qulaity control support
• Product development
• Laboratory versatility
• Document evaluation

The usefulness and comparability of results depend on specimen preparation, machine condition, calibration or verification, the selected method and correct result interpretation.

Technical Specifications

The following specifications should be confirmed against the actual machine model before publication.

Specification	Details
Machine name	Izod and Charpy impact Testing Machine
Machine Type	Pendulum impact testing machine
Testing methods	Izod and charpy, subject to supplied configuration
Pendulum energy capacity	To be confirmed
Impact energy range	To be confirmed
Specimen dimensions	According to the supported test method
Specimen supports and fixtures	To be confirmed
Notch requirements	According to the applicable test method
Energy indication or display	To be confirmed

Safety guarding	Supplied configuration to be confirmed
Applicable testing standards	Confirm the standards supported by the specific model
Power supply	To be confirmed, if applicable
Overall dimesions	To be confirmed
Machine weight	To be confirmed

Note: Confirm the machine's impact energy capacity, supported standards, fixtures, measurement arrangement and safety features with Innotech Engineering Devices Private Limited before publishing numerical specifications.

Factors to Consider When Selecting an Impact Testing Machine

Before choosing an Izod and Charpy Impact Testing Machine, consider:

• Whether Izod testing, charpy testing or both are required
• Material types to be tested
• Required impact energy range
• Specimen dimensions and notch geometry
• Supported specimen supports and fixtures
• Applicable testing standards
• Energy measurement and display requirements
• Safety guarding
• Calibaration and verification requirements
• Laboratory space and expected testing frequency
• Future testing needs

Selecting a machine that matches the actual test procedure is important for obtaining meaningful and comparable results.

Importance of Specimen Preparation

Specimen preparation plays an important role in impact testing. Dimensions, notch geometry, material condition and specimen positioning can affect the measured energy and the interpretation of results.

Specimens should be prepared according to the applicable testing method. The operator should also confirm that the correct supports and impact arrangement are being used before releasing the pendulum.

Calibration, Maintenance and Safety

Regular inspection and appropriate calibration or verification help maintain confidence in impact testing results.

Maintenance and inspection may include:

• Checking the pendulum mechanism and release arrangement
• Inspecting  specimen supports and impact components
• Checking the energy measurement or indication system
• Inspecting protective guards and safety arrangements
• Keeping the machine clean and free form obstructions
• Following the manufacturer's maintenance schedule
• Arranging calibration or verification according to loboratory requiremnts

Because the pendulum moves rapidly and specimens may fracture suddenly, operators should follow the manufacturer's instructions and use the machine's intended safety provisions. Never operate the machine with damaged or missing safety components.

Izod and Charpy Impact Testing Machine Manufacturer in India

Innotech Engineering Devices Private Limited manufactures and supplies material testing equipment for laboratories, manufacturing industries, research organizations, educational institutions and quality-control departments.

Our Izod and Charpy Impact Testing Machine is intended for laboratories requiring pendulum impact testing of suitable material specimens. The appropriate configuration should be selected according to the required testing method, specimen type, impact energy range and applicable test standards.

Contact our team for product information, machine-specific specifications and quotation enquiries.
