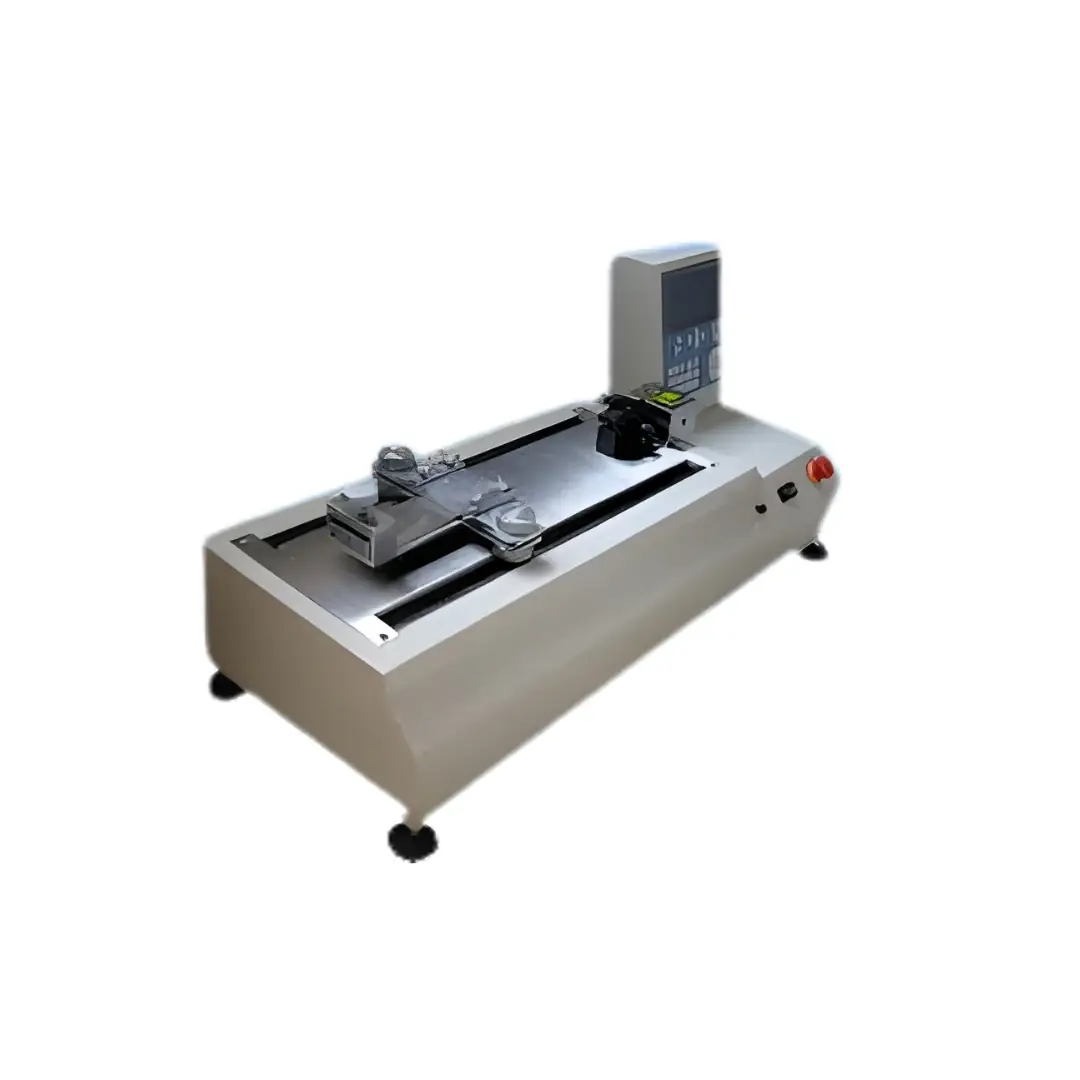

Wire Terminal Pull Force Tester
Wire Terminal Pull Force Tester
Wire Terminal Pull Force Tester is designed to evaluate the pulling-out and tensile force of crimped wire terminals, connectors, cable joints and electrical connections. It helps manufacturers and quality-control laboratories assess the mechanical strength and retention of wire terminal connections.
OVERVIEW
Description
Wire Terminal Pull Force Tester
The Wire Terminal Pull Force Tester is used to check the pulling strength of wire terminals, crimped connections, cable terminals, and similar electrical connections. It measures the force required to seperate the connection and helps manufacturers check whether the terminal has been properly crimped and securely attached to the wire.
It is commonly ised for wire harnesses, cables, connectors, automotive wiring, electrical products, and electronic assemblies. The tester can be used during production inspections, quality control and product development.
Working Principle of Wire Terminal Pull Force Tester
The Wire Terminal are fixed in suitable clamps or fixtures. A pulling force is then applied to the connectin in a controlled manner. The force is measured as the test progresses and the test can continue until the connection breaks, the terminal comes off, or the required test condition is reached.
The maximum force recorded during the test can be used to evaluate the strength of the connection. The required fixture, force range, and testing speed depend on the type and size of the terminal being tested.
Applications
- Crimed wire terminals
- Wire harness connections
- Cable terminals
- Connector pins
- Electrical lugs
- Spliced wire connections
- Other small connections that require-pull-force testing
It is suitable for apllications in automotive, electrical, wire and cable, connector, appliance, and industrial manufacturing.
Main Features
- Suitable for testing wire terminals and crimped connections
- Controlled pulling force for connection testing
- Force measurement and displayu
- Suitable clamps and fixtures for different sampels
- Simple dpecimen mounting
- Compact bench-top design
- Suitable for Laboratory and production iuse
- Useful for routine quality-control testing
- Can be configured for different wire and terminal sizes
The actual force capacity, testing speed, strolke, accuracy, display and fixture arrangement depend on the machine configuration.
Selecting the Right Tester
The machine should be selected according to the samples that need to be tested. Important points include the required force range, wire and terminal size, type of fixture, testing speed, force measurement, and whether test data needs to be recorded.
If different terminal types are used, suitable fixtures can be selected for each application.
Technical Specification
| Parameter |
Specification / Available Configuration |
| Machine Type |
Wire Terminal Pull Force Tester |
| Application |
Pull-out / retention force testingg or crimped wire terminals and connectors |
| Force Capacity |
500 N standard. 1000 N available as an alternative configuration |
| Measurement Range |
0-500 N / 0-1000 N, according to selected load capacity |
| Force Unit |
N, kgf, lbf |
| Test Method |
Terminal pull-out / wire crimp pull test |
| Operation |
Manual or motorized configuration, according to model |
| Force Measurement |
Load cell based force measurement for digital configuration |
| Peak Force Measurement |
Available |
| Force Display |
Digital display for digital model |
| Test Speed |
Adjustable speed for motorized configuration, finalized according to selected model |
| Pulling Direction |
Vertical or horizontal configuration, depending on fixture/system design |
| Wre Clamping |
Dedicated wire gripping arrangement |
| Terminal Clamping |
interchangeable/suitable terminal fixture according to terminal type |
| Fixture Configuration |
Standard or customized according to wire and terminal geometry |
| Data Recoding |
Optional data storage / PC connectivity depending on configuration |
| Overload Protection |
Provided according to selected load-measuring system |
| Power Supply |
Approx. 220-230 V AC, 50 Hz for motorized/electronic configuration |
Load Capacity Options
| Configuration |
Maximum Test Force |
Typical Use |
| 500 N Version | 500 N | Wire terminals, crimped connections and general terminal retention testing |
| 1 kN Version | 1000N | Higher-strength wire terminals and cable connections |
| 3 kN Version | 3000 N | Higher-force terminal and connector testing |
| 10 kN Version | 10000 N | High-strength/heavy duty connection testing |
Wire Terminal Pull Force Tester Manufacturer in India
Innotech Engineering Devices Private Limited supplies testing equipment for industrial and laboratory applications. The Wire Terminal Pull Force Tester can be configured according to the type of wire, terminal, connection, and testing requirement.
Customers can share their sample details and test requirements with the technical team to select the suitable machine and fixtures.
FAQ
What is a Wire Terminal Pull Force Tester?
It is a testing machine used to measure the force required to pull a wire terminal or crimped connection apart.
Why is pull-force testing required?
It helps check the mechanical strength of a terminal connection and can identify weak or poorly crimped connections.
Can it test different types of terminals?
Yes, provided the machine has suitable clamps or fixtures for the particular terminal and wire.
What should I provide when asking for a machine?
It is useful to provide the wire size, terminal type, sample dimensions, required test force, and test method. This information helps determine the appropriate machine configuration and fixture.
