Vertical Hydraulic Spring Testing Machine
Vertical Hydraulic Spring Testing Machine
The Vertical Hydraulic Spring Testing Machine is designed to evaluate the load-bearing and deflection characteristics of springs under applied force. It supports spring performance testing for quality control, product development and industrial inspection. Test capacity, measurement accuracy and operating features depend on the actual machine configuration.
OVERVIEW
Description

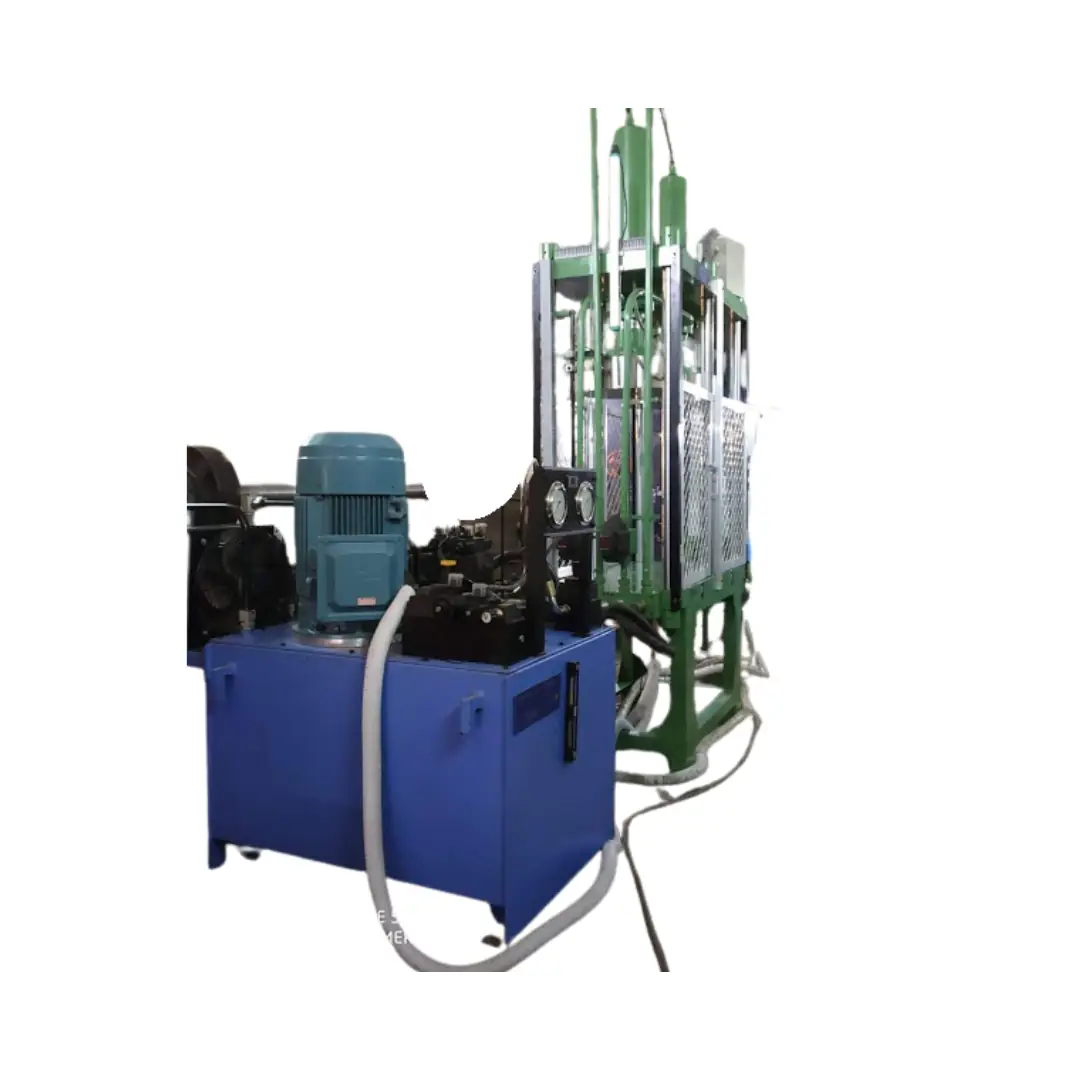

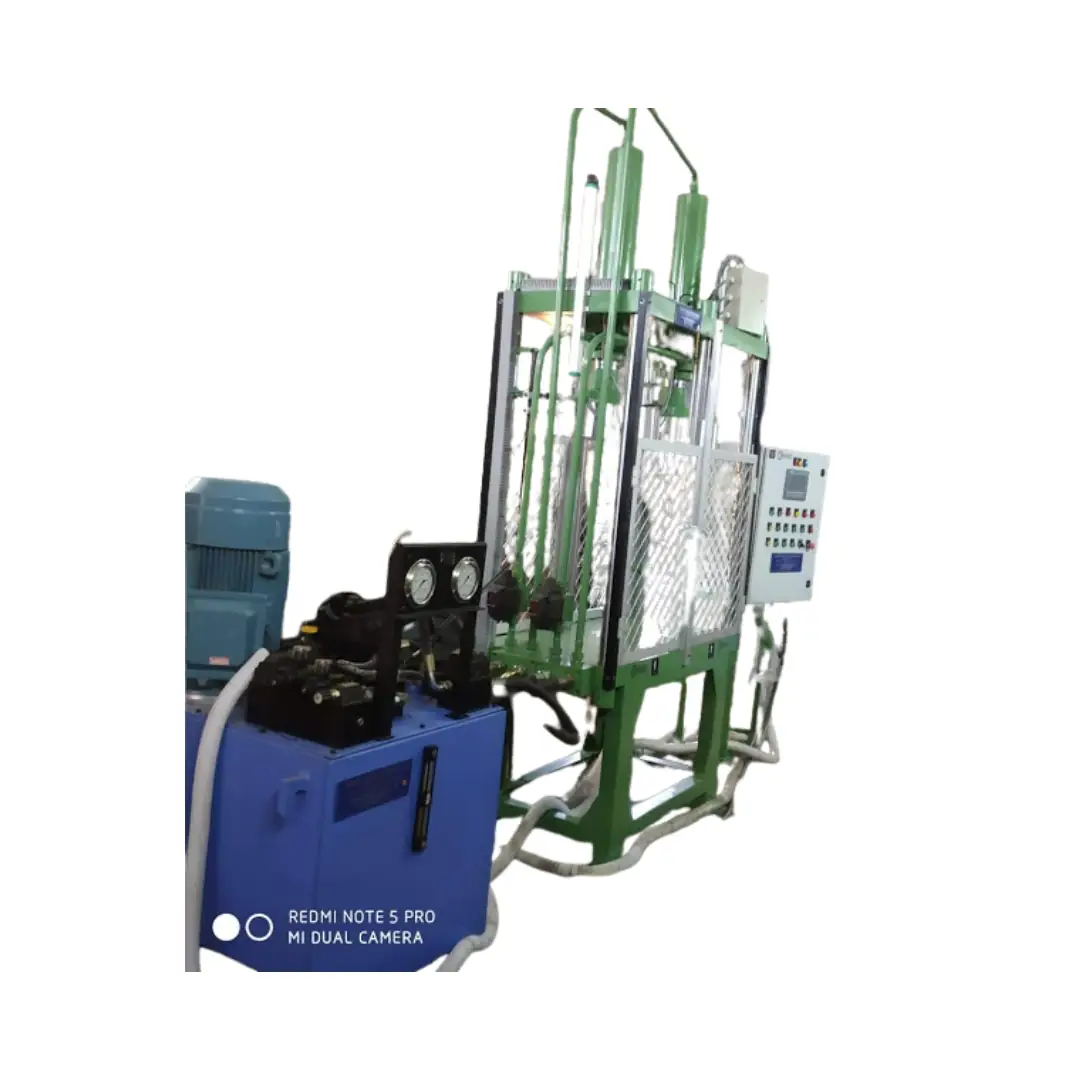

Vertical Hydraulic Spring Testing Machine
The Vertical Hydraulic Spring Testing Machine is used to evaluate the load and deflection behaviour of springs under applied force. It is intended for testing applications where spring performance, load response and dimensional behaviour need to be examined.
Innotech Engineering Devices Private Limited provides testing equipment for industrial quality control, material evaluation and laboratory applications. This machine can be considered by manufacturers and testing facilities that need to assess spring performance during production inspection or product development.
What Is a Vertical Hydraulic Spring Testing Machine?
A Vertical Hydraulic Spring Testing Machine is a spring-testing system that applies force to a spring in a vertical arrangement. The applied load and corresponding spring movement can be evaluated according to the machine's measurement system and configuration.
Working Principle
The spring is positioned between the machine's loading surfaces or suitable fixtures. Force is applied through the machine's loading mechanism, compressing the spring according to the selected test procedure. The applied load and resulting deflection are measured or recorded using the available instrumentation.
The test results can help determine whether a spring meets the specified load and deflection requirements.
Technical Specification
| Parameter |
Specification |
| Machine Type |
Vertical Hydraulic Spring Testing Machine |
| Test Type |
Compression and spring load testing |
| Testing Capacity |
As per machie model / customer requirement |
| Loading System |
Hydraulic loading System |
| Load Application |
Controlled hydraulic loading |
| Load Measurement |
Digital Load measurement system |
| Load Accuracy |
As per selected load cell and control system |
| Load cell Capacity |
Selected according to required testing range |
| Spring Type |
Compression springs and other suitable spring types |
| Test Direction |
Vertical |
| Maximum Test Height |
As per machine configuration |
| Minimum Test Height |
As per machine configuration |
| Spring Diameter |
As per testing fixture and machine configuration |
| Spring Length |
According to available test space / customer requirement |
| Compression Stroke |
As per machine model |
| Hydraulic System |
Hydraulic power pack with controlled pressure application |
| Control System |
Digital / electronic control system |
| Load Display |
Digital Display |
| Displacement Accuracy |
As per selected measuring system |
| Test Speed |
Adjustable / as required for the test |
| Test Cycles |
Single test or programmable cycling, depending on configuraion |
| Data Recording |
Available with suitable digital data acquisition system |
| Test Software |
Optional, depending on model and testing requirements |
| Spring fixtures |
Top and bottom spring compression fixtures |
| Upper Platen |
Rigid compression platen |
| Lower Platen |
Rigit support platen |
| Frame Construction |
Heavy-duty rigid vertical frame |
| Safety Arrangement |
Suitable safety guards / emergency stop arrangement |
| Operation |
Laboratory / industrial testing |
| Power Supply |
As per machine configuraion |
| Hydraulic Power Pack | Included as per machine capacity |
| Machine Dimensions |
As per model and testing capacity |
| Machine Weight |
As per machine configuration |
| Customization |
Available according to spring size, load capacity and test requirements |
Applications
- Compression spring load and deflection testing
- Spring manufacturing quality control
- Inspection of industrial springs
- Automotive component testing, where applicable
- Mechanical engineering and production laboratories
- Product development and comparatice spring evaluation
- Incoming material inspection and production testing
Features
Features depend on the supplied model and may include a vertical loading arrangement, spring holding fixtures, a hydraulic loading mechanism, load measurement instrumentation and a system for observing or recording test results. The actual features should be confirmed against the machine supplied by Innotech.
Benefits
- Helps evaluate spring load and deflection behaviour
- Supports routine inspection and quality control
- Enables comparison of spring performance against specified requirements
- Assists manufacturers in dentifying variations during production
- Supports testing activites in industrial and laboratory environments
How to Select a Spring Testing Machine
Before selecting a machine, consider the spring type, required test load, spring dimensions, expected deflection, measurement accuracy, fixture arrangement and testing procedure. The machine's capacity and measurement system should match the intended application.
FAQ about vertical Hydraulic Spring Testing Machine
What is a Vertical Hydraulic Spring Testing Machine used for?
It is used to evaluate the load and deflection characteristics of springs under applied force.
Which springs can be tested?
Suitability depends on the machine's capacity, fixtures and test arrangement. Confirm compatibility with the spring type and dimensions before testing.
Can it be used for quality control?
Yes. Spring testing can support production inspection and quality control by comparing measured performance with specified requirements.
What specifications should be checked before purchasing?
Check the load capacity, measurement accuracy, test travel, fixture dimensions, control system and applicable test requirements against the manufacturer's confirmed specifications.
Contact Innotech Engineering Devices Private Limited
Contact Innotech Engineering Devices Private Limited for information about the Vertical Hydraulic Spring Testing Machine, its available configuration and suitability for your testing requirements.
Website: www.innotechgroup.net
Email: info@innotechgroup.net
Phone: 9810431604
