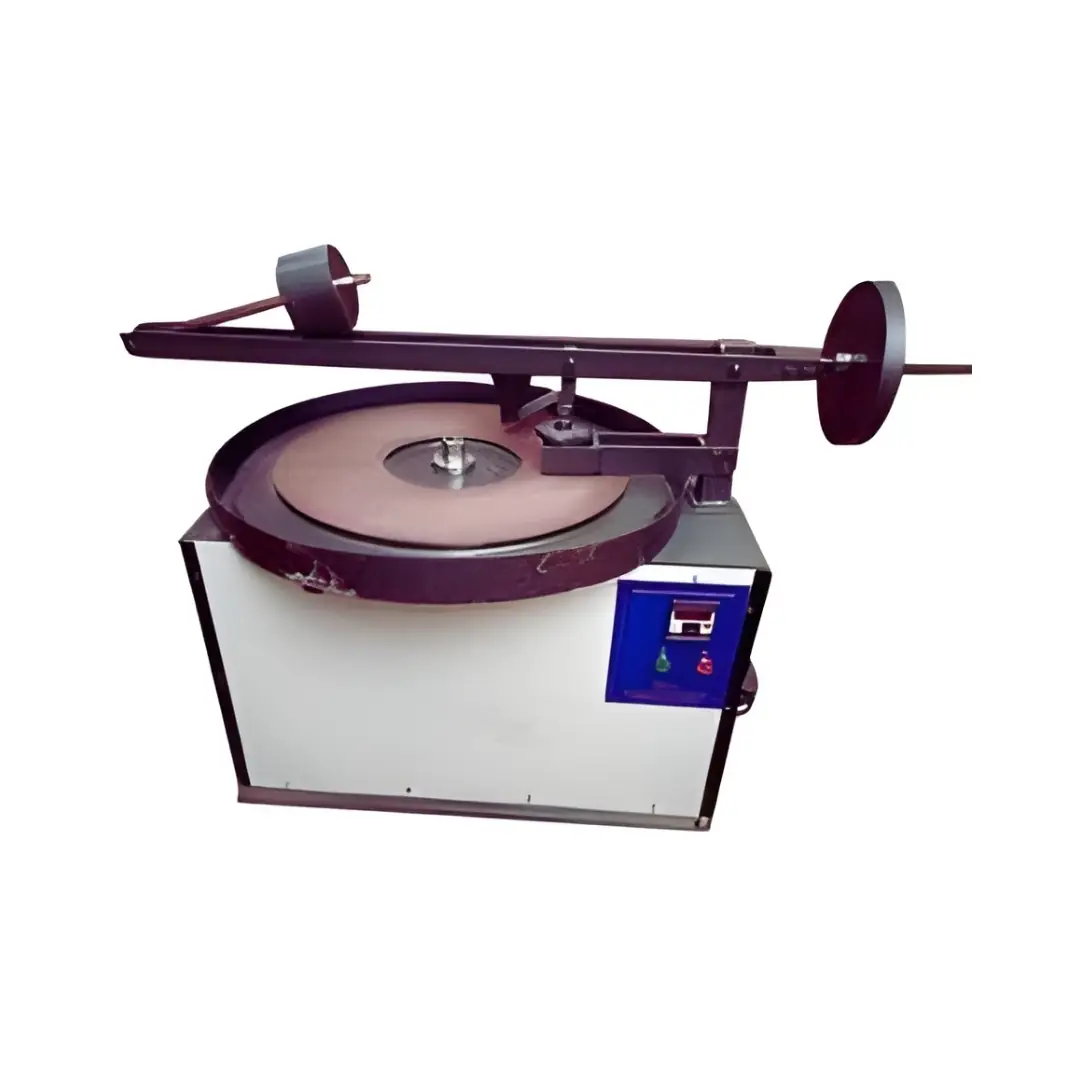

Tile Abrasion Testing Machine for Wear Resistance Testing

The Tile Abrasion Testing Machine is laboratory testing equipment designed to evaluate the resistance of suitable tile and flooring materials to abrasive wear under controlled testing conditions. Abrasion resistance is an important property for flooring products because their surfaces can be exposed to repeated foot traffic, movement, friction and other forms of mechanical wear during service.

The machine provides a controlled arrangement in which a tile specimen is subjected to abrasive action under specified loading and rotation conditions. The resulting wear can then be evaluated according to the selected test method.

The machine can be configured by Innotech Engineering Devices Private Limited according to the required testing procedure, specimen dimensions, loading arrangement, abrasive system, revolution requirements and other customer-specific requirements.

It can be suitable for tile manufacturers, construction-material testing laboratories, quality-control departments, research and development laboratories and educational or industrial testing facilities.

Working Principle

The Tile Abrasion Testing Machine works by bringing the surface of a prepared tile specimen into controlled contact with a rotating grinding path or abrasive surface.

An abrasive material is introduced onto the grinding path according to the selected test procedure. A controlled load is applied to the specimen so that the required contact is maintained between the test specimen and the abrasive surface.

As the grinding path rotates, relative movement between the specimen and abrasive material produces controlled wear on the tile surface.

After the specified number of revolutions or test duration, the specimen is removed and the resulting wear is evaluated using the appropriate measurement method.

The exact operating sequence depends on the applicable test method and machine configuration.

Step 1 – Test Specimen Preparation

Step 2 – Specimen Mounting

Step 3 – Application of Test Load

Step 4 – Abrasive Application

Step 5 – Abrasion Testing

Step 6 – Revolution Counting

Step 7 – Wear Evaluation

Depending on the test procedure, wear may be assessed through thickness measurement, mass loss, dimensional measurement or another specified evaluation technique.

Technical Specifications

The following table is suitable for an Innotech customer-configured machine. It avoids publishing fixed values that may not apply to every machine.

Important Technical Note

The actual values for specimen dimensions, grinding disc diameter, test load, rotation speed, abrasive quantity, number of revolutions, power supply and machine dimensions should be finalized according to the test method and the machine configuration supplied to the customer.

This approach allows Innotech to manufacture different configurations without creating a misleading fixed specification on the website.

Applicable Testing Standards

The machine can be configured according to the applicable testing requirement.

For cement-concrete flooring tiles, IS 1237 is an important Indian Standard covering cement-concrete flooring tiles and includes resistance-to-wear testing. BIS laboratory information also identifies resistance to wear under IS 1237.

IS 1706:1972 relates to determination of resistance to wear by abrasion of natural building stones. Therefore, it should not be presented on the website as a general tile standard. If an Innotech machine is specifically configured for natural stone abrasion testing, this standard may be relevant to that particular configuration.

The applicable standard should always be confirmed according to the material being tested and the customer's required test method.

Key Features

• Controlled abrasice wear testing
• Motorized rotating grinding mechanism
• Suitable specimen holding arrangement
• Controlled test loading
• Abrasice material feeding arrangement
• Digital or presettable revolution counter
• Automatic stopping option according to configuration
• Rigid laboratory construction
• Suitable for routine quality-control testing
• Suitable for research and development applicaions
• Application specific machine configuration
• Easy specimen mounting
• Configurable testing parameters
• Suitable for integration inot materials testing laboratories

Materials and Products That May Be Tested

Depending on the selected machine configuration and applicable testing procedure, the equipment may be used for suitable:

• Cement-concrete flooring tiles
• Flooring tiles
• Concrete based flooring materials
• Ceramic or other tile products where the selected method is applicable
• Flooring materials
• Construction materials requiring abrasiaon evaluation
• Natural building stone, where the machine is specifically configured for the applicable stone abrasion method.

The suitability of a particular material should always be confirmed against the selected test method before testing.

Applications

Tile Manufacturing Industry

Cement-Concrete Flooring Tile Testing

Construction Material Testing Laboratories

Quality Control

Research and Development

Product Development

Natural Stone Testing

Where specifically configured for the appropriate test method, the machine can also support abrasion evaluation of suitable natural building stones.

Benefits

Evaluates Abrasion Resistance

The machine provides a controlled method for evaluating how a suitable material responds to abrasive action.

Supports Quality Control

Regular testing can help manufacturers monitor production consistency and identify changes in material performance.

Helps Compare Materials

Different tile compositions or surface treatments can be compared using controlled test conditions.

Supports Product Development

Abrasion results can assist engineers and manufacturers during the development of flooring and construction materials.

Controlled Testing Conditions

Controlled loading, rotation and abrasive application can help provide repeatable testing conditions when the applicable procedure is followed correctly.

Laboratory-Friendly Operation

The equipment is designed for use in laboratory and quality-control environments.

How to Select the Right Tile Abrasion Testing Machine

Before ordering the machine, the laboratory should identify the required test method and material.

1. Identify the Material

Determine whether the machine will be used for cement-concrete flooring tiles, other flooring materials or natural stone.

2. Confirm the Test Method

The required Indian or international test method should be identified before finalizing the machine configuration.

3. Confirm Specimen Dimensions

The required specimen dimensions should be provided so that the appropriate specimen holder and testing arrangement can be designed.

4. Confirm Test Load

The required test load should be established according to the selected testing method.

5. Confirm Rotation Requirements

The required grinding-path speed and number of revolutions should be confirmed before manufacturing.

6. Confirm Abrasive Material

The abrasive type, quantity and feeding arrangement should be selected according to the applicable procedure.

7. Confirm Wear Measurement Method

The laboratory should determine whether the test requires thickness measurement, mass-loss measurement or another specified evaluation method.

8. Confirm Electrical Requirements

The required electrical supply should be finalized according to the installation location and machine configuration.

Customization

Innotech Engineering Devices Private Limited can discuss the machine configuration according to the customer's testing requirements.

Customization may include:

• Test specimen dimensins
• Test Load
• Grinding path arrangement
• Grinding disc dimensions
• Rotation speed
• Number of revoilutions
• Revolution counter
• Automatic stopping arrangement
• Abrasive feding arrangement
• Specimen holder
• Control System
• Digital display
• Data recoding requirements
• Electrical configuration
• Machine dimensions
• Safety arrangement
• Other application-specific requirements

The final technical specification should be confirmed before manufacturing and supply.

Why Choose Innotech Engineering Devices Private Limited?

Innotech Engineering Devices Private Limited provides testing machines and application-oriented testing equipment for industrial and laboratory requirements.

Our approach allows testing equipment to be configured according to the customer's material, test method, specimen requirements and operating conditions.

For a Tile Abrasion Testing Machine, the required configuration can be discussed before manufacturing so that important parameters such as loading, specimen dimensions, rotation, abrasive arrangement and test-cycle requirements are properly considered.

The equipment can be suitable for manufacturers, quality-control laboratories, material-testing laboratories, R&D departments and other organizations requiring controlled abrasion testing.

Tile Abrasion Testing Machine Manufacturer and Supplier in India

Innotech Engineering Devices Private Limited manufactures and supplies testing equipment for industrial and laboratory applications in India.

The Tile Abrasion Testing Machine can be configured according to the customer's required testing method and application.

For information about the suitable configuration, technical requirements and machine options, contact the Innotech engineering team.

Frequently Asked Questions

What is a Tile Abrasion Testing Machine?

A Tile Abrasion Testing Machine is laboratory equipment used to evaluate the resistance of suitable tile and flooring materials to controlled abrasive wear.

What is the purpose of abrasion testing?

Abrasion testing helps determine how a material surface responds to controlled abrasive action and provides information about its wear behaviour.

Which materials can be tested?

Depending on the machine configuration and test method, suitable cement-concrete flooring tiles, flooring materials and other applicable construction materials can be tested.

Can the machine be used for cement-concrete flooring tiles?

Yes. The machine can be configured for the applicable cement-concrete flooring tile abrasion testing procedure.

Is IS 1237 relevant to tile abrasion testing?

Yes. IS 1237 covers cement-concrete flooring tiles and includes resistance-to-wear requirements. The exact edition and test procedure should be confirmed before specifying compliance.

Is IS 1706 a tile testing standard?

Not generally. IS 1706:1972 is a method for determining resistance to wear by abrasion of natural building stones. It should therefore be associated with the appropriate natural-stone testing application rather than described as a general tile standard.

What is measured during the test?

Depending on the selected test method, the resulting wear may be evaluated through thickness reduction, dimensional change, mass loss or another specified measurement procedure.

Can the test load be customized?

Yes. The loading arrangement can be designed according to the applicable test method and customer requirement.

Can the specimen size be customized?

Yes. The specimen holding arrangement can be configured according to the required specimen dimensions.

Can the number of test revolutions be controlled?

Yes. A digital or presettable revolution counter can be incorporated according to the machine configuration.

Does the machine automatically stop?

An automatic stop function can be provided according to the selected configuration and required test procedure.

Can the abrasive feeding system be customized?

Yes. The abrasive arrangement can be designed according to the required testing method.

Can the machine be used for research and development?

Yes. It can be useful for comparative testing, material development and evaluation of surface wear behaviour when the selected test method is appropriate.

Can Innotech manufacture the machine according to customer requirements?

Yes. The machine can be configured according to the required test method, material, specimen dimensions, load, rotation requirements, abrasive arrangement and other application-specific requirements.

Consult Our Testing Equipment Experts

If you are planning to purchase a Tile Abrasion Testing Machine, share your tile/material type, applicable test standard, specimen dimensions and required testing parameters with our team. We can discuss the appropriate machine configuration according to your testing requirement.
