Static Load Testing System
Static Load Testing System

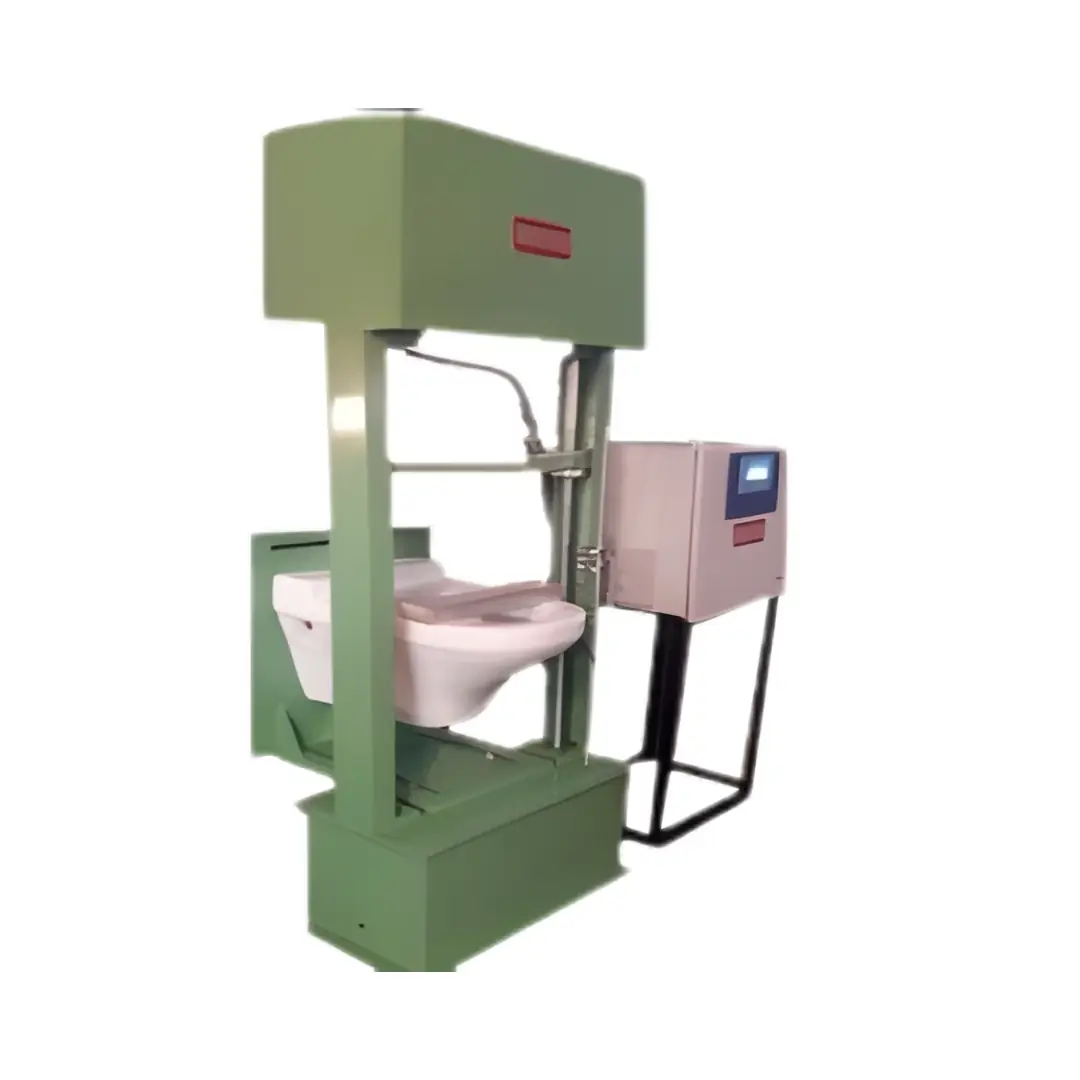

The Static Load Testing System is a specialized testing machine designed to evaluate the load-bearing performance and resistance of sanitaryware products such as urinals, wash basins and WC lavatories under controlled static loading conditions. With a 500 kgf / 5 kN testing capacity, load measurement system, automatic preset load holding, HMI and PLC-based control, adjustable supports and configurable attachments, the system is suitable for sanitaryware manufacturers, quality-control laboratories, product testing facilities and industrial testing applications.
OVERVIEW
Description
Static Load Testing System
The Static Load Testing System is a specialized industrial testing machine designed to evaluate the load-bearing performance and resistance of sanitaryware products under controlled static loading conditions. The system is suitable for testing products such as urinals, wash basins and WC lavatories, helping manufacturers and testing laboratories assess whether a product can withstand the specified applied load for a defined period.
The Static Load Testing System from Innotech Engineering Devices Private Limited is designed as a configurable testing solution with load measurement, controlled loading, automatic load-holding capability, adjustable supports and application-specific attachments. The system can be configured according to the type and dimensions of the sanitaryware product being tested.
What Is a Static Load Testing System?
A Static Load Testing System is a testing machine used to apply a controlled and sustained mechanical load to a test specimen. Unlike impact or dynamic testing, static load testing focuses on the behaviour of a product when a specified load is applied and maintained for a defined period.
For sanitaryware applications, the system can be used to apply controlled loading to products such as:
- Urinals
- Wash basins
- WC lavatories
- Suitable sanitaryware fixtures
- Other apllications-specific bathroom and sanitary products
Static Load Testing of Urinals, Wash Basins and WC Lavatories
Sanitaryware products are expected to withstand mechanical forces during their service life. Depending on the product and installation arrangement, loads may be transferred through mounting points, support areas and structural sections of the product.
The Static Load Testing System provides a controlled arrangement for evaluating these products under specified loading conditions.
Working Principle
The working principle is based on applying a controlled mechanical load to the test specimen and maintaining the required load for a specified period.
The general testing process is:
Step 1 – Test Specimen Installation
Step 2 – Fixture and Support Adjustment
Step 3 – Setting the Required Load
Step 4 – Applying the Load
Step 5 – Maintaining the Load
Step 6 – Completion of Test
Technical Specifications
Testing Capacity
Maximum testing capacity: 500 kgf / 5 kN
The 500 kgf / 5 kN capacity allows the system to be used for controlled static load testing of suitable sanitaryware products within the specified test range.
Load Accuracy
Load accuracy: 0.1 kg / 0.01 kN
The load measurement system is designed to provide controlled monitoring of the applied test load.
Load Cell
Load cell capacity: 500 kgf / 5 kN
The load cell is used for measuring the applied testing force during the test cycle.
Timer
Timer: up to 99 hours
The timer allows the operator to configure the required load-holding period according to the test requirement and machine configuration.
Motor
Motor: 1 HP, three phase
The motor provides the drive required for the electro-mechanical loading system.
Power Transmission
The system uses electro-mechanical power transmission for applying the required load.
Load Indicator and Controller
The Static Load Testing System can be equipped with an HMI and PLC-based load indicator and controller for setting and monitoring test parameters.
Load Holding
Automatic preset load-holding facility is provided to maintain the required load during the programmed testing period.
Adjustable Supports
The system provides adjustable arrangements including:
• Left-to-right adjustment
• Height adjustment
• Central support adjustment
These adjustments help accommodate different product configurations and testing arrangements.
Speed Selection
A VFD is provided for speed selection, allowing the loading operation to be controlled according to the required testing arrangement.
Product Attachments
Different attachments can be provided for different urinals and suitable sanitaryware products.
Key Features
- 500 kgf / 5 kN maximum testing capacity
- Controlled static load application
- 0.1 kg / 0.01 kN load accuracy
- 500 kgf / 5 kn load cell
- HMI and PLC-based control system
- Automatic preset load-hold facility
- Timer for controlled load holding
- Electro-mechanical power transmission
- 1 HP three-phase motor
- VFD-based speed selection
- Adjustable height arrangement
- Adjustable left-to-right positioning
- Adjustable central support
- Application specific product attachments
- Designed for laboratory & industrial quality control
Applications
The Static Load Testing System can be used for a range of sanitaryware and product testing applications.
1. Urinal Testing
2. Wash Basin Testing
3. WC Lavatory Testing
4. Sanitaryware Quality Control
5. Product Development and R&D
6. Testing Laboratories
Why Is Static Load Testing Important for Sanitaryware?
Sanitaryware products are installed in environments where mechanical loads can occur during normal use and service. Testing helps manufacturers understand how a product behaves when subjected to a specified load.
- Excessive deformation
- Structural weakness
- Cracking or damage
- Failure around support areas
- Weakness in mounting arrangemens
- Product design limitations
- Inconsistent manufacturing quality
Benefits
Controlled Load Application
Automatic Load Holding
Adjustable Test Arrangement
Digital Control
Repeatable Testing
Application-Specific Configuration
Different attachments can be provided according to the product being tested, making the system suitable for different sanitaryware configurations.
Quality Control Support
The machine can be incorporated into production quality-control and product validation processes.
Static Load Testing System for Quality Control
Quality control is an important part of sanitaryware manufacturing. Products may differ in shape, size, material distribution, mounting arrangement and structural design. A controlled load test provides a practical method for evaluating mechanical performance according to the defined testing requirement.
Manufacturers can establish testing procedures based on their product requirements and applicable specifications. Test results can then be used as part of internal quality-control documentation and product development activities.
Static Load Testing System for Research and Development
During product development, manufacturers may need to compare different designs or configurations. Static load testing can help engineers investigate how changes in geometry, support arrangement or product construction affect performance.
The system can therefore be useful during:
• Prototype evaluation
• Product development
• Design comparison
• Quality improvement
• Failure investigation
• Production validation
• Product performance studies
How to Select the Right Static Load Testing System
When selecting a Static Load Testing System, manufacturers and laboratories should consider several factors.
Required Test Load
The maximum test load should be selected according to the product and applicable test requirement. The available system has a maximum capacity of 500 kgf / 5 kN.
Product Dimensions
The size and shape of the products being tested should be considered when selecting fixtures and support arrangements.
Fixture Requirements
Different sanitaryware products may require different attachments. The fixture arrangement should provide suitable support and load application.
Load Measurement
The load measurement system should provide the required measurement resolution and accuracy for the intended application.
Load Holding Time
The required duration of the static load test should be considered when selecting the timer and control configuration.
Control System
An HMI and PLC-based control system can provide convenient operation and monitoring of test parameters.
Future Testing Requirements
If the laboratory expects to test multiple product types, a configurable system with adjustable supports and interchangeable attachments can provide greater flexibility.
Why Choose Innotech Engineering Devices for Static Load Testing Systems?
Innotech Engineering Devices Private Limited provides industrial testing machines and special-purpose testing systems for laboratories, manufacturers, quality-control departments and research applications.
Our Static Load Testing System is designed around the requirements of sanitaryware static load testing, with configurable fixtures, controlled load application and application-specific support arrangements.
The system can be supplied according to customer requirements, including suitable attachments and configurations for different products.
Innotech focuses on providing testing equipment with practical operation, robust construction, controlled testing and application-specific configurations.
For customers requiring a Static Load Testing System for urinals, wash basins, WC lavatories or other suitable sanitaryware products, the testing arrangement can be discussed according to the product dimensions, required load, test duration and applicable testing procedure.
Static Load Testing System Manufacturer in India
Innotech Engineering Devices Private Limited is a testing equipment manufacturer and supplier based in Bhiwadi, Rajasthan, India.
The company provides testing machines and special-purpose testing equipment for industrial and laboratory applications.
Customers can contact Innotech for Static Load Testing System requirements, machine configuration, product-specific fixtures, technical information and quotations.
For enquiries:
Company: Innotech Engineering Devices Private Limited
Website: www.innotechgroup.net
Email: info@innotechgroup.net
Phone: +91 98104 31604
Location: Bhiwadi, Rajasthan, India
Frequently Asked Questions About Static Load Testing System
What is a Static Load Testing System?
A Static Load Testing System is a machine designed to apply and hold a controlled mechanical load on a test product for a specified period. It is used to evaluate the product's response to sustained loading.
What products can be tested using this Static Load Testing System?
The available system is designed for suitable static load testing applications involving urinals, wash basins and WC lavatories. Different attachments can be provided according to the product configuration.
What is the maximum capacity of the Static Load Testing System?
The available configuration has a maximum testing capacity of 500 kgf / 5 kN.
What is the load accuracy of the system?
The specified load accuracy is 0.1 kg / 0.01 kN.
Does the machine have automatic load holding?
Yes. The system includes an automatic preset load-hold facility for maintaining the required load during the test.
What type of controller is used?
The system can be equipped with an HMI and PLC-based load indicator and controller for operating and monitoring the test.
Can the test duration be controlled?
Yes. The system includes a timer, with the available specification indicating timing capability up to 99 hours.
Can the system accommodate different sanitaryware products?
Yes. Adjustable supports and different product-specific attachments can be provided for suitable urinals and other sanitaryware products.
Is the Static Load Testing System suitable for quality control?
Yes. It can be used for controlled product testing and quality-control applications in sanitaryware manufacturing and testing laboratories.
Is the system suitable for research and development?
Yes. Static load testing can support product development, prototype evaluation, comparative testing and investigation of product performance.
Can Innotech provide customized configurations?
Yes. The testing system can be configured according to the product, required load, fixture arrangement and testing requirements. Customers should discuss their specific application with the technical team before finalizing the machine.
Conclusion
The Static Load Testing System provides a controlled solution for evaluating the load-bearing performance of suitable sanitaryware products such as urinals, wash basins and WC lavatories. With a 500 kgf / 5 kN capacity, load cell, HMI and PLC control, automatic load holding, timer functionality, adjustable supports and application-specific attachments, the system is designed for practical industrial and laboratory testing.
For manufacturers looking for a Static Load Testing System, sanitaryware testing machine, urinal load testing machine, wash basin load testing machine or WC lavatory testing system, Innotech Engineering Devices Private Limited can provide application-specific testing solutions.
