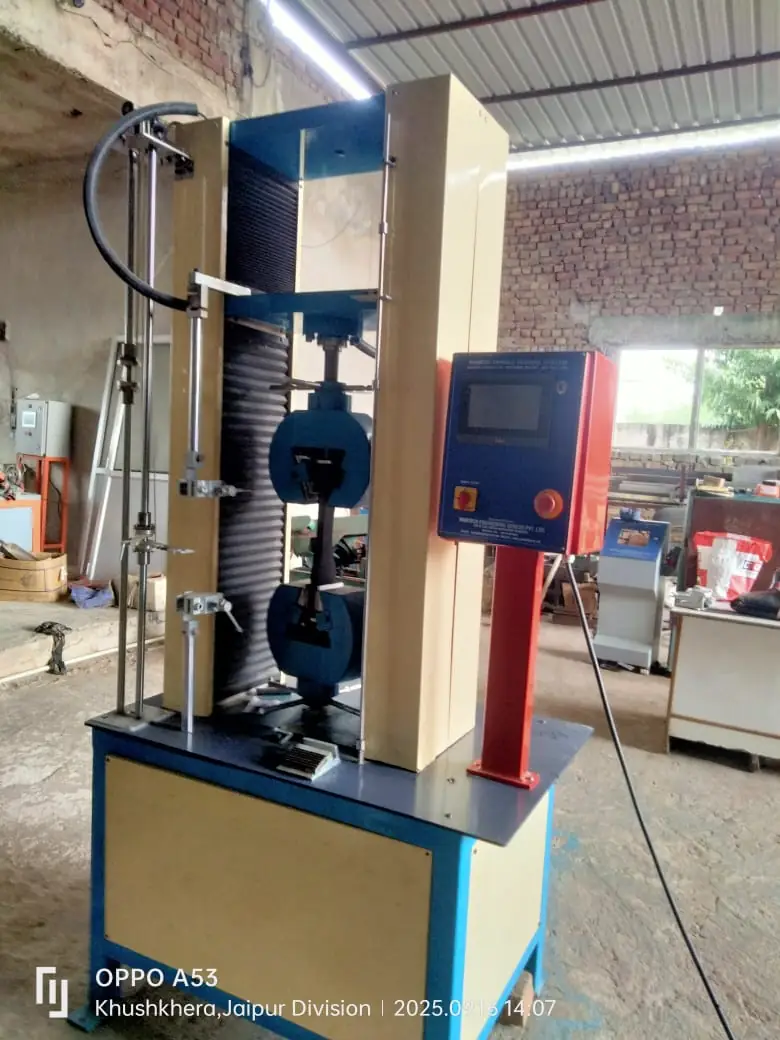

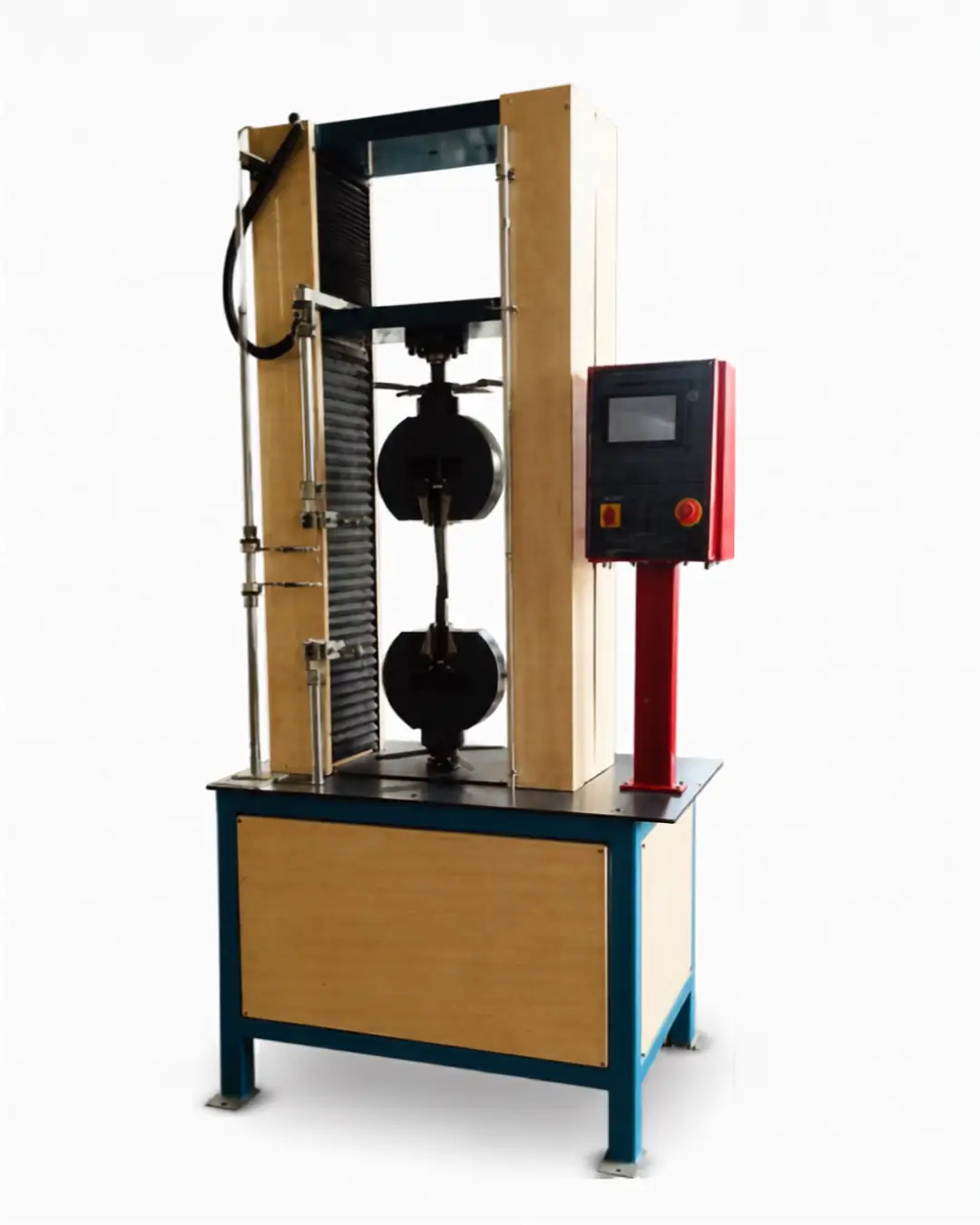

Servo Control Electro Mechanical Universal Testing Machine 200kn
Servo Control Electro Mechanical Universal Testing Machine 200kn
The 200 kN Servo Control Electro Mechanical Universal Testing Machine (UTM) is used to test the strength and mechanical properties of different materials. It can perform tensile, compression, bending, shear, and peel tests. The machine uses a servo-controlled electro-mechanical system to apply and control the required load during testing. Different grips, fixtures, and extensometers can be used depending on the type of material and test. It is suitable for testing metals, plastics, rubber, composites, and other engineering materials. The machine can be used in testing laboratories, manufacturing units, R&D centres, educational institutes, and quality control departments.
PRICE
₹5,150,000.00
MODEL
ISUTM-200
WARRANTY
1 YEAR
WEIGHT
1000KG
OVERVIEW
Description
Servo Control Electro Mechanical Universal Testing Machine (UTM) – 200 kN
The Servo Control Electro Mechanical Universal Testing Machine (UTM) – 200 kN is a high-precision material testing machine designed to evaluate the mechanical strength and performance of a wide range of materials and engineering components. With a maximum testing capacity of 200 kN (20 Ton), the machine is suitable for tensile, compression, flexural, bending, shear, peel, tear, adhesion, and other mechanical tests.
The machine combines a robust load frame with a precision servo motor and ball screw drive system to provide smooth, controlled, and repeatable crosshead movement. An advanced digital control system and PC-based testing software allow users to control test parameters, monitor results in real time, analyze test curves, and generate detailed test reports.
The 200 kN Universal Testing Machine is suitable for testing metals, plastics, polymers, rubber, composites, wires, cables, textiles, packaging materials, fasteners, and various engineering components. It is widely used in quality control laboratories, research and development centres, manufacturing plants, educational institutions, and material testing laboratories.
Precision Material Testing
The 200 kN Servo Control UTM is designed for applications where accurate load measurement and repeatable testing are essential. The servo-controlled electro-mechanical drive system provides precise control over crosshead movement and testing speed, helping users maintain consistent testing conditions.
The machine can be configured with different grips, fixtures, extensometers, and accessories depending on the material and test method. This flexibility makes it suitable for both routine quality inspection and advanced material characterization.
Key Features
• Maximum testing capacity of 200 kN (20 Ton)
• Precision servo-controlled electro-mechanical drive system
• High-resolution load cell for accurate force measurement
• Servo motor and precision ball screw drive
• Smooth and controlled crosshead movement
• Variable testing speed with software control
• PC-based test control and data acquisition
• Real-time display of load, displacement, stress, strain, and test curves
• Automatic calculation of key test parameters
• Programmable test methods and sequences
• Automatic overload protection
• Emergency stop and safety limit switches
• Heavy-duty rigid load frame
• Wide range of grips and fixtures available
• Compatible with extensometers and additional testing accessories
• Suitable for laboratory, R&D, and industrial testing
Tests Performed
The 200 kN Universal Testing Machine can be configured to perform a variety of mechanical tests, depending on the appropriate grips, fixtures, and accessories:
• Tensile Test
• Compression Test
• Flexural and Bending Test
• Shear Test
• Peel Test
• Adhesion Test
• Tear Test
• Proof Load Test
• Elongation Measurement
• Yield Strength Determination
• Ultimate Tensile Strength (UTS)
• Modulus of Elasticity
• Material Characterization Tests
Materials and Products Tested
The machine is suitable for testing a wide variety of materials, products, and components, including:
• Steel and stainless steel
• Aluminium and non-ferrous metals
• Copper and brass
• Plastics and polymers
• Rubber and elastomers
• Composite materials
• Wires and cables
• Fasteners, bolts, and nuts
• Springs
• Pipes and tubes
• Packaging materials
• Textiles and technical fabrics
• Automotive components
• Construction and engineering products
The suitable test fixture and accessories can be selected according to the specimen geometry, material, test type, and required testing force.
Advanced Digital Control and Testing Software
The computerized control system provides convenient operation and monitoring of the complete testing process. The software can display important test parameters such as load, displacement, stress, strain, time, and test curves during the test.
Depending on the software configuration, test results can be automatically calculated and recorded, including tensile strength, yield strength, elongation, peak load, modulus, and other relevant parameters.
The PC-based system also helps operators organize test data and generate test reports, making it suitable for both routine quality control and laboratory research.
Servo-Controlled Electro-Mechanical Drive System
The servo motor and precision ball screw arrangement provide accurate crosshead movement and controlled application of testing force. Compared with conventional hydraulic systems, an electro-mechanical drive can offer clean and quiet operation with lower routine maintenance requirements.
The controlled movement of the crosshead helps maintain consistent testing speeds and contributes to reliable and repeatable test results.
Standards and Compliance
The Servo Control Electro Mechanical UTM 200 kN can be configured for testing in accordance with applicable ASTM, ISO, BIS, DIN, and other international testing standards, depending on the test method and accessories used.
The exact standard, test procedure, specimen dimensions, fixtures, loading rate, and acceptance criteria should be selected according to the material being tested and the applicable testing requirement.
Applications
The 200 kN Servo Control Universal Testing Machine is suitable for material testing, product validation, quality control, and research applications. It can be used to determine the mechanical properties of materials and verify whether manufactured products meet specified performance requirements.
Typical applications include tensile strength testing of metals, compression testing of components, flexural testing of plastics and composites, peel testing of packaging materials, and mechanical testing of wires, cables, fasteners, rubber products, and engineering components.
Industries Served
The machine is widely used across:
• Automotive and auto components
• Aerospace and defence
• Railways
• Steel and metal industries
• Plastic and polymer industries
• Rubber manufacturing
• Electrical and electronics
• Packaging
• Construction and infrastructure
• Engineering and manufacturing
• Educational institutions
• Research and development laboratories
• Government testing laboratories
• Quality control and inspection centres
Advantages of the 200 kN Servo Control UTM
The machine offers several advantages for laboratories and industrial testing facilities:
• Accurate and repeatable test results
• Precise control of testing speed and movement
• Smooth and quiet electro-mechanical operation
• Lower routine maintenance requirements
• Energy-efficient operation
• Easy PC-based test control
• Automatic calculation of test parameters
• Test data recording and report generation
• Flexible testing with interchangeable grips and fixtures
• Suitable for routine and advanced material testing
• Robust construction for long-term use
Customization and Accessories
Different materials and test methods require different fixtures and measuring accessories. The 200 kN UTM can therefore be supplied with suitable grips, compression plates, bending fixtures, extensometers, peel fixtures, wire and cable grips, and other application-specific accessories.
The machine configuration can be selected according to the required test type, specimen dimensions, material, testing speed, measurement requirements, and applicable standard.
Why Choose Innotech Engineering Devices?
Innotech Engineering Devices Pvt. Ltd. manufactures and supplies material testing and laboratory equipment for industrial, research, and quality control applications. Our Servo Control Electro Mechanical Universal Testing Machines are designed with a focus on accuracy, reliable operation, durable construction, and ease of use.
Each machine is inspected and tested before delivery to ensure dependable performance. We also provide installation, commissioning, operator training, calibration assistance, annual maintenance, warranty support, and after-sales service across India.
Our testing solutions are suitable for manufacturers, testing laboratories, research organizations, educational institutions, and quality assurance departments looking for reliable and application-specific material testing equipment.
Get a 200 kN Universal Testing Machine
If you are looking for a 200 kN Servo Control Electro Mechanical Universal Testing Machine for tensile, compression, bending, shear, peel, or other mechanical testing applications, contact Innotech Engineering Devices Pvt. Ltd.
Our technical team can help you select the appropriate machine configuration, grips, fixtures, extensometer, software, and accessories based on your material, specimen dimensions, test method, required load capacity, and applicable testing standard.
Consult To Expert
Call 9810431604
WHY IT WORKS
Key benefits
Benefits of Servo Control Electro Mechanical Universal Testing Machine (UTM) 200 kN The Servo Control Electro Mechanical Universal Testing Machine (UTM) 200 kN offers superior accuracy, reliability, and efficiency for material testing applications. Designed with advanced servo control technology, it ensures precise load application and consistent test results, making it an ideal choice for quality control, research, and product development. Key Benefits High Accuracy & Precision – Delivers highly accurate and repeatable test results with precision load measurement. Wide Testing Capability – Performs tensile, compression, bending, shear, peel, tear, and other mechanical tests using a single machine. Servo-Controlled Operation – Provides smooth, stable, and precise crosshead movement for consistent testing performance. Energy Efficient – Consumes significantly less power than conventional hydraulic testing machines, reducing operating costs. Low Maintenance – Electro-mechanical design eliminates hydraulic oil, pumps, and valves, resulting in minimal maintenance requirements. User-Friendly Software – Advanced PC-based software enables easy test setup, real-time monitoring, automatic calculations, graph generation, and professional report printing. Automatic Data Analysis – Calculates tensile strength, yield strength, elongation, modulus of elasticity, peak load, and other parameters automatically. Quiet & Clean Operation – Oil-free operation ensures a cleaner laboratory environment with low noise and no risk of hydraulic oil leakage. Robust Construction – Heavy-duty load frame provides excellent rigidity, stability, and long service life. Wide Range of Material Testing – Suitable for testing metals, plastics, polymers, rubber, composites, wires, cables, textiles, packaging materials, and engineering components. Standards Compliance – Designed to perform tests according to ASTM, ISO, BIS, DIN, and other international testing standards. Enhanced Productivity – Faster test setup, automatic test execution, and instant report generation improve laboratory efficiency. Customizable Fixtures – Compatible with a variety of grips, fixtures, extensometers, and accessories for different testing applications. Safety Features – Equipped with overload protection, limit switches, emergency stop, and software-based safety controls to protect both the operator and the machine. Reliable Quality Assurance – Helps manufacturers maintain consistent product quality, meet customer specifications, and comply with regulatory requirements. Ideal for R&D and Production – Supports material characterization, product validation, failure analysis, and routine quality inspection across multiple industries.
USE CASE
Application range
BUILT IN
Features
Key Features Maximum Load Capacity: 200 kN (20 Ton) Servo-Controlled Electro-Mechanical Drive for smooth, precise, and stable testing. High-Precision Load Cell with excellent accuracy and repeatability. Heavy-Duty Dual Column Load Frame for maximum rigidity and vibration-free operation. Precision Ball Screw Mechanism ensuring accurate crosshead positioning. High-Performance AC Servo Motor & Drive for precise speed and load control. Computerized PC-Based Control System with intuitive testing software. Real-Time Display of load, stress, strain, displacement, extension, time, and test graphs. Automatic Test Execution with programmable testing methods. Automatic Calculation of Ultimate Tensile Strength (UTS), Yield Strength, Elongation, Modulus of Elasticity, Peak Load, and other mechanical properties. Variable Crosshead Speed adjustable through software for different testing standards. Multiple Test Modes including tensile, compression, flexural (bending), shear, peel, tear, and proof load testing. Graphical Test Reports with load vs. displacement, stress vs. strain, and other customizable curves. Automatic Data Storage with report generation in printable and exportable formats. Overload Protection System to safeguard the load cell and machine. Emergency Stop Button and travel limit switches for enhanced operator safety. Interchangeable Grips & Fixtures for testing a wide variety of materials and components. Extensometer Compatibility for accurate strain and elongation measurements. Compliance with International Standards including ASTM, ISO, BIS, DIN, EN, and other applicable testing standards. Low Noise & Oil-Free Operation with no hydraulic oil, making it environmentally friendly and easy to maintain. Modular Design allowing future upgrades and additional testing accessories. High Repeatability & Measurement Accuracy, ideal for quality control, R&D, and product certification. Suitable for Testing metals, plastics, polymers, rubber, composites, wires, cables, springs, fasteners, packaging materials, textiles, and engineering components.
SPEC
Specifications
Machine Type
Servo Control Electro Mechanical Universal Testing Machine
Maximum Test Capacity
200 kN (20 Ton)
Load Measurement Accuracy
Better than ±0.5% of indicated load (Class 0.5)
Accuracy Class
Class 0.5 / Class 1 (Optional as per requirement)
Load Resolution
1/500,000 of full scale
Test Modes
Tensile, Compression, Flexural (Bending), Shear, Peel, Tear & Proof Load
Load Cell
High Precision Strain Gauge Load Cell
Number of Load Cells
Single / Multiple (Optional)
Control System
Fully Computerized Servo Control
Drive System
AC Servo Motor with Precision Ball Screw
Transmission
Precision Preloaded Ball Screw
Crosshead Speed Range
0.001 to 500 mm/min (Customizable)
Speed Accuracy
±0.5% of the set speed
Effective Test Width
400 mm (or as per requirement)
Maximum Tensile Test Space
800–1000 mm (Customizable)
Crosshead Travel
Up to 1000 mm
Displacement Resolution
0.001 mm
Extension Measurement
Extensometer (Optional)
Data Acquisition Rate
High-Speed Real-Time Data Acquisition
Display Parameters
Load, Stress, Strain, Extension, Displacement, Time, Speed, Peak Load
Software
Windows-Based Material Testing Software
Test Report
Automatic Graphs & Customizable Report Generation
Graphs Available
Load vs Displacement, Stress vs Strain, Load vs Time, Extension vs Time
Safety Features
Overload Protection, Emergency Stop, Limit Switches, Software Safety Limits
Power Supply
230V AC, 50 Hz, Single Phase (415V Optional)
Operating Temperature
10°C to 40°C
Standards Compliance
ASTM, ISO, BIS, DIN, EN and other International Standards
Machine Frame
Heavy Duty Dual Column Load Frame
Accessories
Tensile Grips, Compression Platens, Bending Fixture, Extensometer (Optional), Custom Fixtures
Optional Accessories
Video Extensometer Contact Extensometer High Temperature Furnace Environmental Test Chamber Pneumatic & Hydraulic Grips Wedge Action Grips Custom Fixtures for Special Applications Barcode & QR Code Integration Calibration Kit Advanced Statistical Analysis Software Remote Diagnostic & Service Support
DIM
Dimensions
Length
900mm
width
600mm
Height
2200mm
