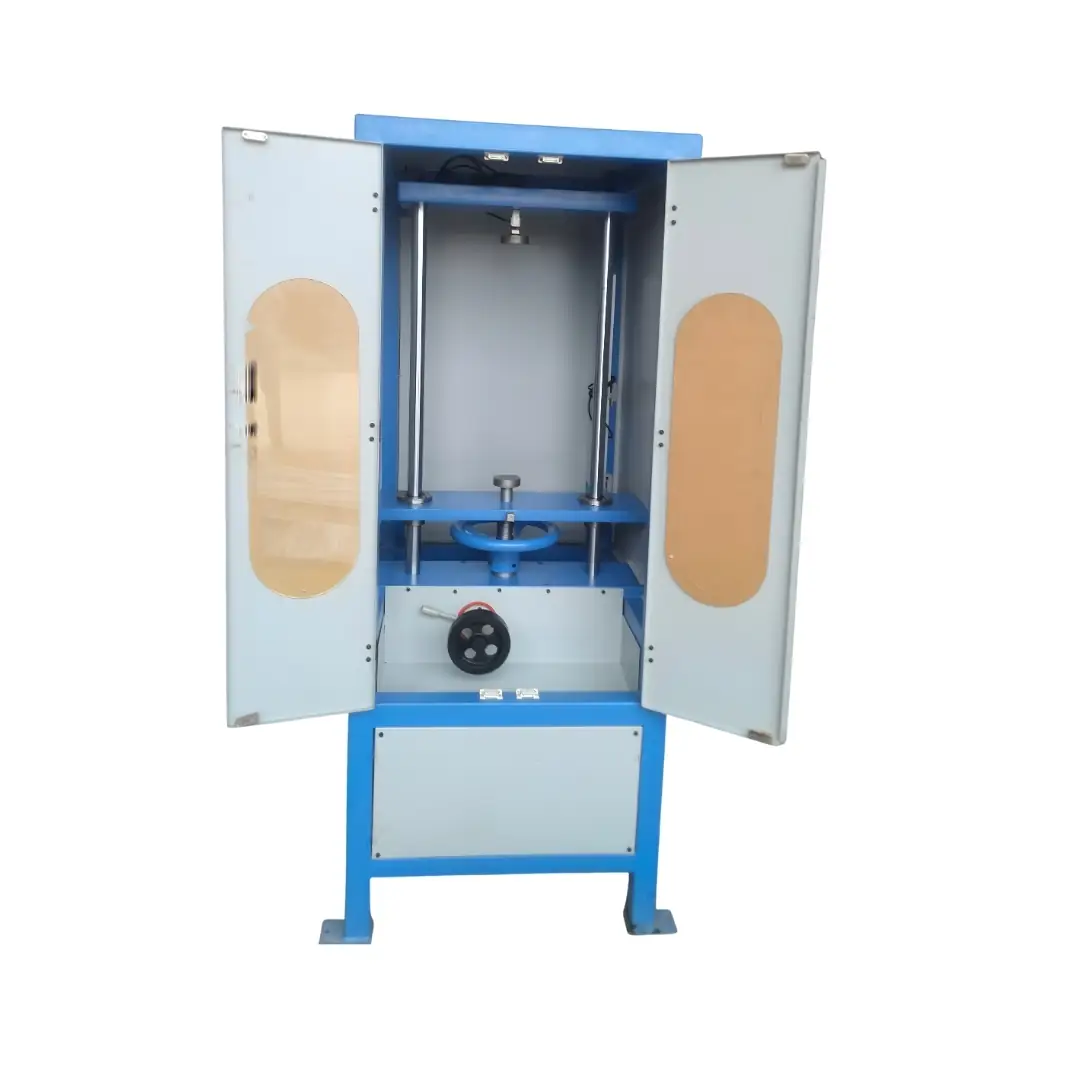

Manual Spring Testing Machine
Manual Spring Testing Machine
Manual Spring Testing Machine is designed for evaluating the load, force, compression and deflection characteristics of suitable springs. The machine provides a practical solution for spring testing in material testing laboratories, manufacturing units, automotive component industries, quality-control departments, research facilities and educational laboratories. Its manually operated testing arrangement allows controlled loading of spring specimens while observing their load and deflection behaviour.
OVERVIEW
Description
Manual Spring Testing Machine
A Manual Spring Testing Machine is used to check the load and deflection behaviour of springs under controlled mechanical loading. It helps manufacturers and testing laboratories understand how a spring responds when force is applied.
Springs are commonly used in automotive parts, machinery, industrial equipment and mechanical assemblies. Their performance depends on providing the required force and movement during operation. Testing helps check whether a spring meets the required load and deflection characteristics.
The machine uses a manually operated loading arrangement, allowing the operator to apply force gradually and observe the corresponding movement or deflection of the spring.
Innotech Engineering Devices Private Limited manufactures and supplies testing machines and laboratory equipment for industrial, manufacturing and quality-control applications.
Applications of Manual Spring Testing Machine
The Manual Spring Testing Machine can be used for a variety of spring testing and inspection applications.
Spring Manufacturing
Spring manufacturers can use the machine to check the load and deflection characteristics of manufactured springs. It can also help compare samples from different production batches.
Automotive Components
Springs are widely used in automotive assemblies. The machine can be used for suitable automotive spring components during inspection, product development and quality-control activities.
Mechanical Engineering
the equipment can be used to evaluate suitable springs used in machines, mechanical assemblies and industrial equipment.
Quality Control
Manufacturers and laboratories can use spring testing as part of incoming inspection, production checks and final product inspection.
Research and Product Development
R&D teams can use the machine to compare different spring designs and study their response under applied loads.
Educational Laboratories
The machine can also be useful in engineering and technical institutions for demonstrating the relationship between spring force, load and deflection.
Spring Characteristics That Can Be Evaluated
Depending on the machine configuration and testing arrangement, the following characteristics can be studied:
- Spring load
- Spring force
- Spring deflection
- Load-deflection relationship
- Compression behaviour
- Mechanical response under applied load
- Comparison between spring specimens
- Production consistency
The actual parameters that can be measured depend on the machines measurement system, fixtures and configuraion.
Suitable Spring Applications
The machine may be suitable for testing:
- Compression Springs
- Industrial Springs
- Automotive Springs
- Mechanical Springs
- Machine-component Springs
- Engineering spring components
- Special-purpose Springs
The required fiuxtures and testing arrangement should be selected accordign to the spring size, shape and indended test.
Key Features
Manual Loading System
The machine uses a manually operated mechanism for applying load to the spring. This allows the operator to control the loading process during testing.
Robust Construction
A sturdy testing frame provides a stable arrangement for positioning the spring during the test.
Load and Deflection Testing
The machine can be used to study the relationship between the applied load and the resulting spring deflection.
Practical Operation
The manual design provides a straightforward testing solution for laboratories and manufacturing inspection departments where automated operation is not required.
Flexible Testing Arrangement
Suitable fixtures and measurement arrangements can be selected according to the spring type and testing requirement.
Technical Specifications
The exact specifications of the Manual Spring Testing Machine should be confirmed according to the required configuration.
Important specification parameters may include:
| Parameter | Specification |
| Maximum Testing Load | To be confirmed |
| Load Measurement Range | To be confirmed |
| Deflection Range | To be confirmed |
| Spring Dimensions | As per machine configuration |
| Testing Height | To be confirmed |
| Working Space | To be confirmed |
| Loading System | Manual |
| Spring fixtures | As required |
| Measurement System | As per configuraion |
| Machine Dimensions | To be confirmed |
| Power Requirement | As applicable |
| Machine Weight | To be confirmed |
Note: Actual numerical specifications should be added only after confirmation from the manufacturer's technical specification sheet.
How to Choose a Spring Testing Machine?
Before selecting a spring testing machine, consider the following factors:
- Maximum load requirement for the spring
- Type and dimensiobns of the spring
- Required deflection range
- Type of testing required
- Measurement accuracy
- Manual or motorized operation
- Required fixtures
- Testing frequency
- Laboratory space
- Data recording requirements
For simple or lower-volume testing, a manual machine may be suitable. Applications requiring higher testing speed or automation may require a motorized system.
Manual Spring Testing Machine Manufacturer in India
Innotech Engineering Devices Private Limited manufactures and supplies testing equipment for laboratories, manufacturing units, quality-control departments, research facilities and engineering industries.
The company provides testing solutions for customers across India, including applications in spring manufacturing, automotive components, mechanical engineering and industrial quality control.
Manual Spring Testing Machine Manufacturer in Bhiwadi, Rajasthan
Innotech Engineering Devices Private Limited is based in the industrial region of Bhiwadi, Rajasthan, and supplies laboratory and testing equipment to customers across India.
Customers looking for a Manual Spring Testing Machine manufacturer in Bhiwadi, a spring testing machine supplier in Rajasthan, or a spring testing machine manufacturer in India can contact Innotech for machine configuration, specifications and testing requirements.
Frequently Asked Questions
What is a Manual Spring Testing Machine?
A Manual Spring Testing Machine is used to evaluate the load and deflection behaviour of suitable springs by applying mechanical force through a manually operated loading mechanism.
What is the purpose of spring testing?
Spring testing helps determine how a spring responds to an applied load. It can be used to study spring force, deflection and load-deflection behaviour.
Which springs can be tested?
Depending on the machine configuration and fixtures, suitable compression springs, industrial springs, automotive springs and other mechanical spring components can be tested.
Can compression springs be tested?
Yes. A suitable machine can be used for compression spring testing when the spring dimensions, load range and fixtures are compatible with the testing arrangement.
What does a load-deflection test show?
A load-deflection test shows the relationship between the force applied to a spring and the resulting change in its position or deflection.
Is the machine manual or motorized?
The machine described here uses a manual loading arrangement. The exact machine configuration should be confirmed from the manufacturer's technical documentation.
Can it be used for automotive springs?
Yes, the machine can be considered for suitable automotive spring applications, provided the spring dimensions, required load range and fixtures are compatible.
Is it suitable for quality-control testing?
Yes. Manufacturers can use spring testing during incoming inspection, production inspection, batch comparison and final product quality checks.
Can the machine be used in laboratories?
Yes. It can be used in testing laboratories, manufacturing inspection departments, engineering institutions and R&D facilities for suitable spring-testing applications.
Can the machine be customized?
Depending on the application, suitable fixtures, measurement systems and other testing arrangements may be considered. Customization should be confirmed with the manufacturer.
Conclusion
The Manual Spring Testing Machine provides a practical way to evaluate the load and deflection behaviour of suitable springs. It can be used for spring manufacturing, automotive components, mechanical engineering, quality control, product development and laboratory testing.
The machine's manual loading arrangement makes it suitable for applications where controlled, straightforward spring testing is required.
For information about load capacity, deflection range, dimensions, fixtures, accuracy and other technical specifications, contact Innotech Engineering Devices Private Limited to discuss your testing requirements.
