Manual Hydraulic Specimen Cutting and Assembly Press

Innotech Engineering Devices Private Limited is a manufacturer and supplier of Manual Hydraulic Specimen Cutting and Assembly Presses in India. Designed for laboratory and industrial applications, this machine provides a manually operated hydraulic pressing arrangement for specimen preparation, cutting and assembly-related operations.

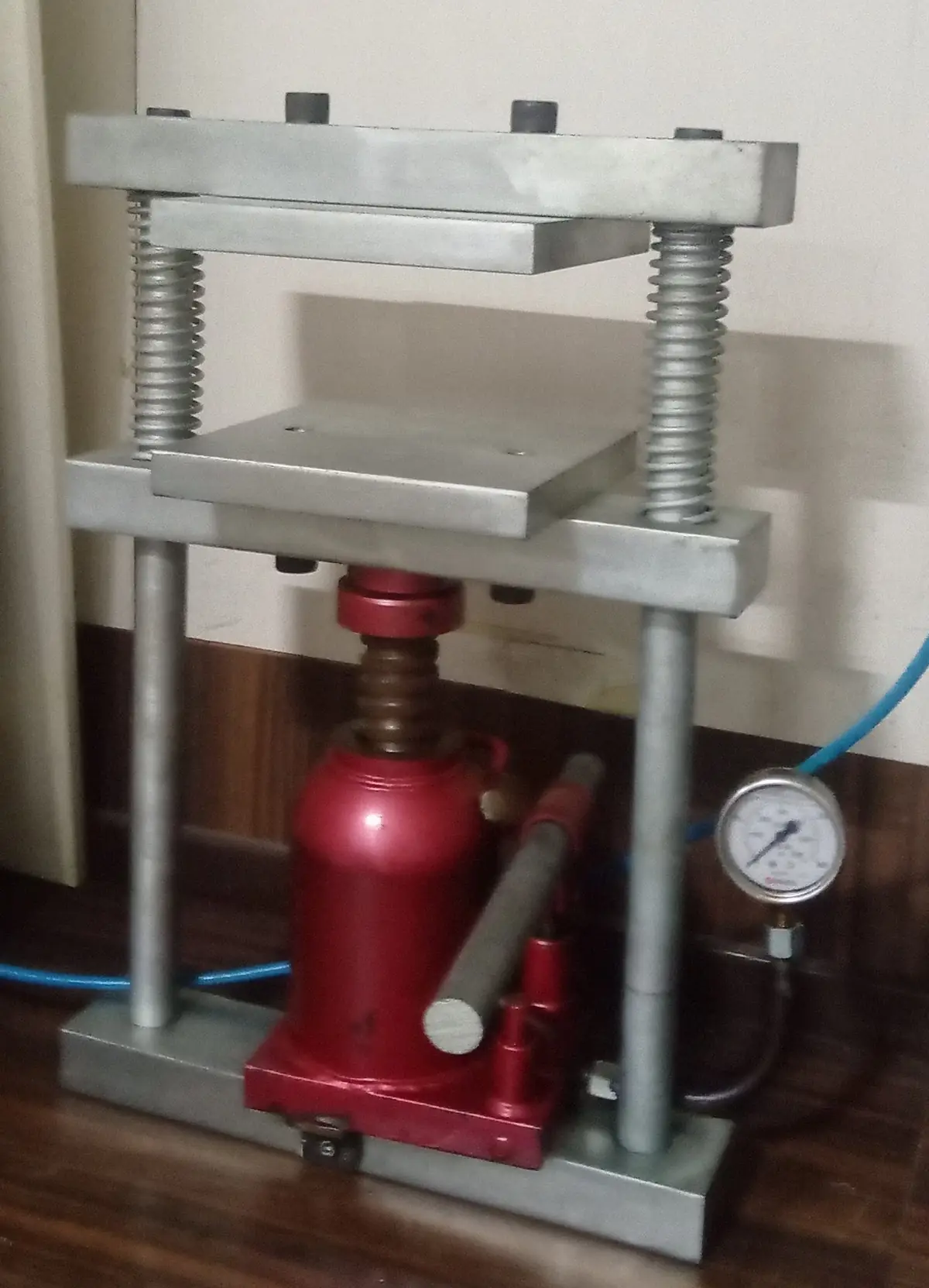

The machine is constructed with a rigid four-column frame, upper and lower working platens, a manual hydraulic jack and a pressure gauge. Its compact structural arrangement provides a dedicated working area for performing pressing operations with suitable dies, fixtures and attachments.

The Manual Hydraulic Specimen Cutting and Assembly Press is suitable for applications where controlled manual hydraulic force is required during material preparation and component assembly. The machine can be customized according to the customer's required pressing capacity, working area, specimen dimensions, tooling and application.

What Is a Manual Hydraulic Specimen Cutting and Assembly Press?

A Manual Hydraulic Specimen Cutting and Assembly Press is a laboratory and industrial pressing machine that uses manually generated hydraulic pressure to apply force to a specimen or component.

It is used for different specimen preparation and pressing operations where materials need to be cut, compressed, positioned or assembled using suitable dies and fixtures. The machine's working platens provide the area for positioning the specimen and required tooling during operation.

It is particularly useful for laboratories and manufacturing facilities that require a manually operated pressing arrangement for controlled material preparation and processing.

Why Is a Manual Hydraulic Specimen Press Used?

Specimen preparation is an important part of material testing and quality control. Properly prepared specimens help maintain consistency during testing and evaluation.

A manual hydraulic specimen press is used to apply controlled pressure during preparation and assembly operations. It provides a practical alternative for applications where a manually operated hydraulic mechanism is suitable.

The machine can be configured with suitable cutting dies, pressing plates and application-specific fixtures according to the material and process requirements.

Working Principle of Manual Hydraulic Press

The machine operates on the principle of Pascal's Law, which explains how pressure applied to an enclosed hydraulic fluid is transmitted through the fluid.

The operator manually operates the hydraulic jack using its handle. This generates hydraulic pressure that moves the jack piston and applies force to the working arrangement. The force is transferred through the pressing assembly to the specimen positioned between the working platens.

The pressure gauge helps the operator monitor the hydraulic pressure during operation. Once the required operation is completed, the hydraulic pressure is released and the working arrangement can be returned to its initial position.

The actual pressing force depends on the hydraulic jack capacity and machine configuration.

Machine Construction and Design

The machine features a sturdy four-column supporting frame designed to maintain alignment and support the working assembly. Its upper and lower platens provide a stable working arrangement for positioning specimens, dies and fixtures.

A manually operated hydraulic jack generates the required pressing force, while the pressure gauge allows the operator to monitor the hydraulic pressure. The overall machine design can be modified according to the customer's working requirements, including platen dimensions, frame construction, operating capacity and tooling arrangements.

Manual Hydraulic Specimen Press Manufacturer in India

Innotech Engineering Devices Private Limited is an OEM manufacturer of testing machines, laboratory equipment and customized industrial machinery in Bhiwadi, Rajasthan, India.

We manufacture and supply Manual Hydraulic Specimen Cutting and Assembly Presses for laboratories, manufacturing units, research facilities and quality control departments. Our machines can be customized according to customer specifications, including hydraulic capacity, working dimensions, platen size, frame design and application-specific attachments.

Customized Manufacturing as per Customer Requirements

Different materials and specimen preparation procedures require different machine configurations. At Innotech, we understand that a standard machine may not meet every customer's requirements.

Therefore, we offer customized manufacturing solutions based on the intended application, required pressing force, specimen size, working area, cutting dies, fixtures and other technical requirements.

Our team works towards developing a suitable machine configuration for your laboratory or industrial application.

Manual Hydraulic Press Supplier Across India

Innotech manufactures and supplies hydraulic presses and laboratory testing equipment across India. From our manufacturing facility in Bhiwadi, Rajasthan, we serve customers in Delhi NCR, Haryana, Punjab, Rajasthan, Uttar Pradesh, Gujarat, Maharashtra, Karnataka, Tamil Nadu, Telangana, West Bengal and other industrial regions.

Whether you are looking for a Manual Hydraulic Specimen Press Manufacturer in India, a laboratory hydraulic press supplier in Delhi NCR or a customized specimen preparation press, Innotech can assist with your requirements.

Frequently Asked Questions

1. What is a Manual Hydraulic Specimen Cutting and Assembly Press?

It is a manually operated hydraulic machine used for specimen preparation, cutting and assembly operations with suitable dies, fixtures and pressing arrangements.

2. What is the working principle of this hydraulic press?

It works on Pascal's Law. Manual operation of the hydraulic jack generates pressure that moves the piston and applies force to the working assembly.

3. Can the machine be customized?

Yes. Innotech manufactures customized hydraulic presses according to customer specifications, including pressing capacity, platen dimensions, frame design and tooling requirements.

4. Is this machine suitable for laboratory applications?

Yes. It is designed for laboratory and industrial specimen preparation and pressing applications, subject to the required tooling and configuration.

5. What determines the price of a manual hydraulic press?

The price depends on hydraulic capacity, frame construction, platen size, working dimensions, accessories and customization requirements.

6. Does Innotech supply hydraulic presses across India?

Yes. Innotech Engineering Devices manufactures and supplies hydraulic presses to customers across India from its Bhiwadi, Rajasthan facility.

Consult Our Experts for Your Requirements

Looking for a Manual Hydraulic Specimen Cutting and Assembly Press for your laboratory or industrial application? Contact Innotech Engineering Devices Private Limited for technical consultation, customized machine configurations and the latest price.

Our team can help you select a suitable hydraulic press based on your specimen dimensions, pressing capacity and application requirements.
