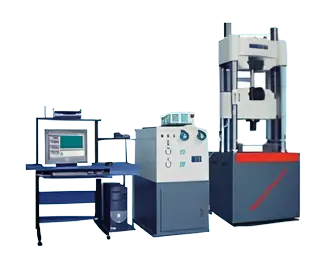

Hydraulic Tensile Tester

The Hydraulic Tensile Tester is used to apply controlled tensile force to a test specimen until the required test condition, specified deformation or failure point is reached. The machine helps laboratories and industries evaluate how a material or component behaves when subjected to pulling or tensile loading.

Hydraulic loading is particularly useful for applications requiring substantial testing force or a robust testing arrangement. Depending on the application, the machine can be configured with a suitable hydraulic power system, load measurement system, grips, fixtures, control panel and data acquisition arrangement.

Innotech Engineering Devices Private Limited designs and manufactures Hydraulic Tensile Testers according to customer requirements rather than restricting the machine to one standard configuration.

The final machine configuration can depend on the material being tested, required testing capacity, specimen dimensions, test method, gripping arrangement, test speed, elongation measurement and reporting requirements.

What Is a Hydraulic Tensile Tester?

A Hydraulic Tensile Tester is a mechanical testing machine that uses a hydraulic system to generate and control tensile force.

A specimen is securely held between suitable grips or fixtures. The hydraulic actuator then applies tensile force in a controlled manner. The applied force and, where required, displacement or elongation are measured during the test.

The resulting data can help determine properties such as tensile strength, maximum load, elongation and other application-specific characteristics, depending on the selected test method and machine configuration.

How Does a Hydraulic Tensile Tester Work?

The general testing process is:

1. The appropriate specimen is prepared according to the applicable test method.
2. The specimen is positioned between the upper and lower grips.
3. The grips are securely tightened to prevent unwanted specimen movement.
4. The required test parameters are selected through the control system.
5. The hydraulic system generates the required tensile force.
6. The actuator moves the grips apart at the specified test condition.
7. The load-measuring system continuously monitors the applied tensile force.
8. Displacement or elongation can be measured where required.
9. The test continues until the specified condition, such as a predetermined load, elongation or specimen failure.
10. The test data can be displayed, recorded or processed according to the machine configuration.

The exact test procedure depends on the material, application and applicable testing standard.

Technical Specifications

Because Innotech Engineering Devices Private Limited manufactures Hydraulic Tensile Testers according to customer requirements, the following specifications can be configured according to the application:

Note: Capacity, stroke, test speed, specimen dimensions, grip type, hydraulic pressure and other numerical values should be finalized according to the customer's actual testing requirements. They should not be treated as fixed specifications for every Hydraulic Tensile Tester.

Key Features

• Hydraulic force generation for tensile testing
• Heavy-duty machine construction
• Customer-specif testing capacity
• Application specific specimen grips
• Contolled tensile loading
• Digital load measurement
• Optional elongation and displacement measurement
• Adjustable testing speed as required
• Hydraulic power pack designed for the required capacity
• Digital/electronic control system
• Optional computer based data acquisition
• Automatic test safety arrangements
• Suitable for laboratory and industrial applications
• Custom working area and fixture arrangement
• Designed according to customer requirements

What Can a Hydraulic Tensile Tester Measure?

Depending on the machine configuration and test method, a Hydraulic Tensile Tester can be used to evaluate:

• Maximum tensile load
• Tensile strength
• Breaking load
• Elongation
• Extension
• Load versus displacement behaviour
• Load versus elongation behavioutr
• Failure behaviour
• Application-specific tensile properties

The exact parameters available depend on the measurement system, fixtures and software selected for the machine.

Why Use a Hydraulic Tensile Tester?

A hydraulic tensile testing system can be useful when the testing application requires substantial tensile force, robust construction or a customized loading arrangement.

It can provide:

• Controlled tensile loading
• Repeatable test conditions
• Measurements of applied force
• Application specific gripping
• Suitable testing for different material sizes
• Heavy duty testing capability
• Optional computerized test data recording

The correct configuration should always be selected according to the material, specimen geometry and required test method.

What Materials Can Be Tested?

Depending on machine capacity and grip configuration, the Hydraulic Tensile Tester can be designed for applications involving:

• Metals
• Steel components
• Wires
• Cableds
• Chains
• Wire ropes
• Polymere materials
• Plastics
• Rubber and elastometers
• Composite materials
• Construction materials
• Automotive components
• Industrial components
• Other tensile-test specimens

Specialized grips and fixtures can be developed where the standard gripping arrangement is not suitable for the customer's specimen.

Applications

The Hydraulic Tensile Tester can be used for:

• Tensile strength testing
• Breaking load testing
• Maerial evaluation
• Component testing
• Wire and cable testing
• Wire rope testing
• Chain testing
• metal testing
• Polymer and plastic testing
• rubber testing
• Automative components testing
• Research and development
• Production inspection
• comparatice material testing

Industries Served

Customized Hydraulic Tensile Testers can be suitable for:

• Metal Tesing Equipments
• Wire & cable Testing Equipment
• Wire Rope & Chain Tesing Equipment
• Automotive Component Testing Industry
• Polymer, Plastic & Film Testing Equipments
• Rubber Testing equipment
• Material Testing Laboratories
• Construction Material Testing
• Manufacturing Industries
• Research & Development Laboratories
• Quallity Conrol Laboratories

Customized Hydraulic Tensile Tester Manufacturer in Bhiwadi, Rajasthan

Innotech Engineering Devices Private Limited is a manufacturer of testing equipment in Bhiwadi, Rajasthan, providing application-oriented testing machines for Indian industries and laboratories.

We understand that tensile testing requirements can vary significantly between applications.

For example, one customer may require a high-capacity machine for heavy industrial components, while another may require a lower-capacity system with specialized grips for a particular material.

Therefore, the Hydraulic Tensile Tester can be configured according to:

• Required testing capacity
• Material being tested
• Specimen dimensions
• Maximum tensile force
• Grip arrangement
• Test stroke
• Test speed
• Elongation measurement
• Applicable test method
• Data acuisition requirements
• Software requiremtents
• Laboratory space

This application-based approach helps ensure that the machine is suitable for the customer's actual testing needs.

What to Consider Before Buying a Hydraulic Tensile Tester?

Testing Capacity: Select the required force capacity based on the maximum expected load during testing.

Material and Specimen: The material, shape and dimensions determine the appropriate grips and fixtures.

Grip Arrangement: Proper gripping is important to prevent specimen slippage and ensure suitable force transmission.

Test Speed: The required test speed should be based on the selected testing method or application.

Elongation Measurement: If elongation or strain needs to be measured, a suitable extensometer or displacement-measuring system may be required

Data Acquisition:
For research and quality-control applications, computer-based data recording can be considered.

Future Requirements:
If the machine will be use for multiple materials or applications, discuss future testing requirements before finalizing the configuration.

Why Choose Innotech Engineering Devices Private Limited?

• Customer specific hydraulic tensile testing solutions
• Application-based machine configuration
• Customized grips and fixtures
• Suitable testing capacities according to requirements
• Heavy duty machine construction
• digital measurement and control options
• Suitable for laboratory and industrial applications
• Special purpose testing machine capability
• Manufacturing facility in Bhiwadi, Rajasthan
• Testing equipment solutions for indian industries

Frequently Asked Questions

What is a Hydraulic Tensile Tester?

A Hydraulic Tensile Tester is a testing machine that uses a hydraulic system to apply controlled tensile force to a specimen for evaluating its mechanical behaviour.

What can a Hydraulic Tensile Tester test?

Depending on its configuration, it can be used for metals, wires, cables, chains, wire ropes, plastics, rubber, polymers, composites and various industrial components.

Can the testing capacity be customized?

Yes. Innotech Engineering Devices Private Limited can manufacture the machine with a testing capacity selected according to the customer's application.

Can customized grips be provided?

Yes. Grips and fixtures can be designed according to specimen geometry, material and testing requirements.

Can elongation be measured?

Yes. An appropriate displacement or extensometer arrangement can be incorporated when elongation measurement is required.

Can the machine record test data?

Yes. Digital data acquisition and computer-based software can be included according to the customer's requirements.

Who manufactures Hydraulic Tensile Testers in Bhiwadi, Rajasthan?

Innotech Engineering Devices Private Limited manufactures customized Hydraulic Tensile Testers and other material testing equipment in Bhiwadi, Rajasthan.

How do I select the right Hydraulic Tensile Tester?

Provide the material type, specimen dimensions, expected maximum load, required test speed, applicable test method and desired measurements. Our technical team can recommend a suitable configuration.

Consult an Expert

Looking for a Hydraulic Tensile Tester for your specific material or component testing application?

Instead of choosing a machine only from generic specifications, share your actual testing requirements with our technical team.

Innotech Engineering Devices Private Limited
H-307, RIICO Industrial Area, Karoli, Tapukara, Bhiwadi, Rajasthan
📞 +91 9810431604
📧 info@innotechgroup.net
🌐 www.innotechgroup.net

Consult an Expert for the right Hydraulic Tensile Tester configuration.
