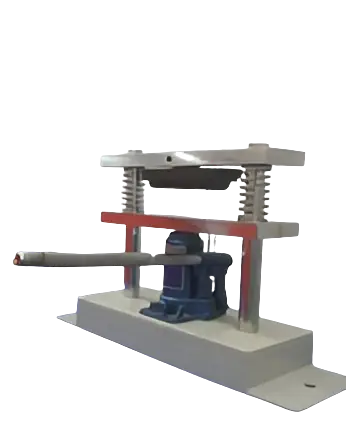

Hydraulic Sample Cutting Press

The Hydraulic Sample Cutting Press is a laboratory specimen preparation machine designed to produce accurately shaped test samples from suitable sheet, flexible and semi-flexible materials. It uses hydraulic pressing force to drive a suitable cutting die through the test material, allowing laboratories to prepare repeatable specimens for subsequent physical and mechanical testing.

Consistent specimen preparation is an important part of reliable material testing. Variations in sample dimensions, shape or cutting quality can influence test results. A hydraulic sample cutting press provides controlled pressing action and can help laboratories prepare multiple specimens with consistent geometry when used with the appropriate cutting die.

The Hydraulic Sample Cutting Press from Innotech Engineering Devices Private Limited can be configured according to the material, specimen dimensions, required cutting force and intended testing application. It is suitable for laboratories, manufacturers, research facilities and quality-control departments across India.

Technical Specifications

Parameter	Description
Product Type	Hydraulic Sample Cutting Press
Application	Test specimen preparation
Operating Principle	Hydraulic Pressing and die cutting
Material	Rubber, plastic, polymer, leather, textile, film and other suitable materials
Cutting Tool	Application-specific cutting die
Specimen Shape	According to selected cutting die
Pressing System	Hydraulic
Cutting force	According to selected configuration
Operation	Hydraulic press operation

Cutting Table	As per machine configuration
Die Arrangement	Standard or customized
Specimen Thickness	According to material and selected configuration
Safety Features	According to machine configuration
Power Supply	As per selected model
Customization	Available according to applicaion

Note: Exact hydraulic pressure, cutting force, table dimensions, maximum specimen thickness, die dimensions, stroke, power supply and other technical specifications depend on the selected machine configuration. These parameters should be confirmed with Innotech Engineering Devices Private Limited before ordering.

How Does a Hydraulic Sample Cutting Press Work?

The material to be tested is placed on the machine's cutting surface. A suitable cutting die is positioned over the material according to the required specimen geometry.

When the hydraulic system is operated, the ram applies controlled downward force to the cutting die. The cutting edge passes through the material and produces the required test specimen.

After the cutting operation, the press is returned to its initial position and the prepared specimen can be removed. The specimen can then be used for the relevant material test.

The hydraulic operating principle provides substantial and controlled pressing force, making the machine suitable for applications where a manual cutting operation may not provide sufficient force or consistent results.

Key Benefits

Hydraulic Cutting Force

The hydraulic system provides controlled pressing force for cutting suitable test materials using appropriate dies.

Consistent Specimen Preparation

A suitable cutting die helps produce specimens with repeatable shapes and dimensions.

Suitable for Different Materials

Depending on the configuration, the machine can be used for rubber, plastic, polymer, leather, textile, film and other suitable materials.

Multiple Specimen Shapes

Different cutting dies can be used to prepare different specimen geometries for various testing applications.

Reduced Manual Cutting

Hydraulic operation reduces the physical effort required for preparing test specimens.

Suitable for Laboratory Testing

The machine can be used in material testing laboratories, quality-control departments and research facilities.

Customized Cutting Dies

Application-specific dies can be selected or designed according to the required specimen shape and dimensions.

Applications

The Hydraulic Sample Cutting Press can be used for preparing specimens for:

• Tensile Testing
• Tear Testing
• Abrasion Testing
• Flexural Testing
• Material Strength Testing
• Rubber Testing
• Plastic Testing
• Polymer Testing
• Leather Testing
• Textile Testing
• Film Testing
• Paper and packaging Testing
• Quality-control Testing
• Research and Development

The exact specimen shape and cutting die should be selected according to the applicable test method.

Materials Suitable for Sample Preparation

Depending on the machine configuration and cutting die, the Hydraulic Sample Cutting Press can be suitable for:

• Rubber
• Elastometer
• Plastic Sheets
• Polymer Sheets
• Leather
• Textile Materials
• Non-Woven Materials
• Films
• Flexible Packaging Materials
• Paper
• Paperboard
• Foam and Other Suitable Materials

The maximum material thickness and hardness should be confirmed before selecting the machine configuration.

Importance of Test Specimen Preparation

The accuracy of a material test depends partly on the quality of the test specimen. A specimen with inconsistent dimensions, uneven edges or an incorrect shape may affect the reliability of subsequent testing.

A Hydraulic Sample Cutting Press helps laboratories prepare specimens using dedicated cutting dies rather than relying entirely on manual cutting. This can improve repeatability when multiple samples need to be prepared from the same material.

Cutting Dies

The cutting die determines the final shape and dimensions of the specimen. Different dies can be used with the hydraulic press depending on the intended test.

Possible die configurations may include:

• Dumbbell specimen dies
• Strip specimen dies
• Tear specimen dies
• Crescent specimen dies
• Circular specimen dies
• Rectangular specimen dies
• Notched specimen dies
• Customized specimen dies

The appropriate die should be selected according to the applicable test standard and required specimen dimensions.

Customization

Innotech Engineering Devices Private Limited can provide the Hydraulic Sample Cutting Press according to the customer's specimen-preparation requirements.

Possible customization areas include:

• Hydraulic cutting force
• Working table dimensions
• Hydraulic system configuration
• Ram arrangement
• Stroke
• Cutting die dimensions
• Specimen geometry
• Material thickness
• Safety arrangement
• Die mounting arrangement
• Machine dimensions
• Special purpose cutting requirements

For proper configuration, customers should provide the material type, approximate thickness, specimen drawing or dimensions, required number of specimens and applicable testing standard.

Why Choose Innotech Engineering Devices Private Limited?

Laboratory and Testing Equipment

Innotech Engineering Devices Private Limited supplies laboratory and industrial testing equipment for material evaluation and quality-control applications.

Application-Based Configuration

We consider the actual material and specimen requirements when determining a suitable hydraulic sample cutting press.

Customized Solutions

The machine and cutting-die arrangement can be discussed according to specific specimen preparation requirements.

Suitable for Multiple Industries

The equipment can support applications in rubber, plastic, polymer, leather, textile, film, packaging and material testing.

India-Wide Supply

Innotech Engineering Devices Private Limited supplies testing and laboratory equipment to customers across India.

Technical Support

Our team can assist customers in understanding the required machine configuration and suitable cutting-die arrangement.

Frequently Asked Questions

What is a Hydraulic Sample Cutting Press?

A Hydraulic Sample Cutting Press is a machine that uses hydraulic pressing force to cut laboratory test specimens from suitable materials using a dedicated cutting die.

What is the advantage of a hydraulic sample cutting press?

Hydraulic operation provides controlled pressing force and reduces the manual effort required to cut test specimens.

What materials can be cut?

Depending on the configuration, suitable materials may include rubber, plastics, polymers, leather, textile, film, paper and other sheet materials.

Can the machine prepare rubber test specimens?

Yes. The machine can be configured with suitable dies for preparing rubber specimens for applicable physical and mechanical tests.

Can it be used for plastic and polymer specimens?

Yes. Suitable plastic and polymer sheets can be cut using an appropriate die and machine configuration.

Can customized cutting dies be supplied?

Yes. Cutting dies can be selected or customized according to the required specimen shape and dimensions.

What determines the required cutting force?

The required force depends on factors such as material type, material thickness, hardness, specimen size and cutting-die geometry.

Can the Hydraulic Sample Cutting Press be used for multiple tests?

Yes. Different cutting dies can be used to prepare different specimen shapes for different testing applications, provided the machine and dies are suitable for the material and test requirements.

Is the machine suitable for laboratories?

Yes. It is intended for laboratory specimen preparation, research, quality control and material-testing applications.

Is the Hydraulic Sample Cutting Press available in India?

Yes. Innotech Engineering Devices Private Limited supplies Hydraulic Sample Cutting Presses to customers across India.

Consult Our Testing Equipment Experts

Looking for a Hydraulic Sample Cutting Press in India for rubber, plastic, polymer, leather, textile or other material-testing applications?

Contact Innotech Engineering Devices Private Limited to discuss your material, specimen dimensions and cutting requirements.

Website: www.innotechgroup.net
Email: info@innotechgroup.net
Phone: 9810431604

Our team can help you select a suitable hydraulic pressing capacity and cutting-die configuration according to your application.
