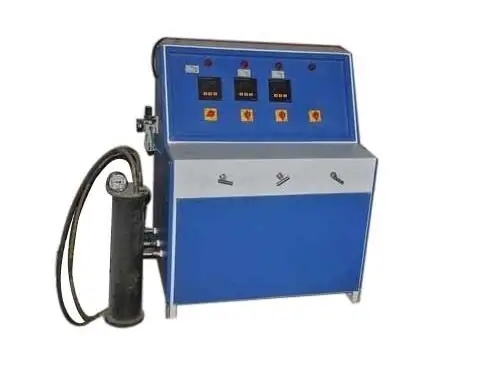

Hydraulic Pressure Testing Machine
Hydraulic Pressure Testing Machine
Hydraulic Pressure Testing Machine is designed to apply controlled hydraulic pressure to test the pressure resistance, leakage performance, and structural integrity of pipes, tubes, valves, tanks, hoses, fittings, and other components. Innotech manufactures customized pressure testing machines with suitable pressure capacity, fixtures, controls, and measurement systems as per customer requirements.
OVERVIEW
Description
Hydraulic Pressure Testing Machine
The Hydraulic Pressure Testing Machine is used to apply controlled hydraulic pressure to test components, containers, pipes, fittings and other products for pressure resistance, leakage and structural performance.
The machine can be designed for different pressure-testing applications depending on the component being tested, required pressure capacity, test medium, test duration, fixture arrangement and measurement requirements.
Innotech Engineering Devices Private Limited manufactures Hydraulic Pressure Testing Machines according to customer requirements, with the hydraulic system, pressure measurement, fixtures and control arrangement selected according to the intended application.
What Is a Hydraulic Pressure Testing Machine?
A Hydraulic Pressure Testing Machine is a testing system that uses a liquid medium and controlled hydraulic pressure to evaluate the pressure-handling capability of a test component.
The test specimen is securely connected to the hydraulic circuit and filled with the required test medium. Pressure is then increased to the specified test level and maintained for the required duration.
During the test, pressure behaviour, leakage or other application-specific observations can be monitored.
Depending on the configuration, the machine can be used for pressure testing, hydrostatic testing, leakage testing or other application-specific pressure evaluation.
How Does a Hydraulic Pressure Testing Machine Work?
1. The test specimen is connected to the appropriate fixture.
2. The specimen and hydraulic circuit are filled with the required test medium.
3. Air or unwanted trapped conditions are managed according to the test procedure.
4. The hydraulic pump generates the required pressure.
5. Pressure is increased in a controlled manner.
6. A pressure sensor or gauge monitors the applied pressure.
7. The specified pressure is maintained for the required test duration.
8. The operator observes pressure stability, leakage or other required test conditions.
9. The pressure is released safely after completion.
10. Test results can be recorded according to the machine configuration.
The exact testing sequence depends on the product, pressure requirement and applicable test method.
Technical Specifications
| Parameter |
Specification |
| Product Type | Hydraulic Pressure Testing Machine |
| Test Type | Pressure / hydrostatic / leakage testing |
| Pressure Capacity | As per customer requirement |
| Test Medium | Water or suitable liquid as required |
| Hydraulic Pump | Selected according to required presssure and flow |
| Pressure measurement | Pressure gauge / pressure sensor |
| Pressure control | Manual / digital / automatic as required |
| Pressure Display | Analog or digital |
| Test Holding time | As required |
| Pressure Regulation | As per application |
| Test Fixture | Application specific |
| specimen connection | As required |
| Leakage Detection | Visual / pressure drop / application specific |
| Data Recording | optional / as required |
| Control System | Manual / digital / PLC based as required |
| Safety System | Pressure and operator safety provisions |
| Emergency stop | As required |
| Frame Construction | Rigid industrial construction |
| Working area | As per specimen dimensions |
| Power supply | According to final configuration |
| Dimensions | As per machine configuration |
| Weight | According to final configuration |
| Customization | Available according to customer requirements |
Note: Exact pressure capacity, pump specifications, test duration, fixture dimensions and other numerical values should be finalized according to the customer's application. They should not be treated as standard specifications for every machine.
Key Features
• Controlled hydraulic pressure generation
• Suitable for pressure and hydrostatic testing
• Application-specific pressure capacity
• Suitable pressure measurement system
• Adjustable test holding time
• Customized test fixtures
• Manual, digital or automatic control options
• Pressure monitoring during testing
• Robust machine construction
• Suitable safety arrangements
• Optional data recording
• Customer-specific configuration
Applications
The Hydraulic Pressure Testing Machine can be configured for:
• Pipe pressure testing
• Tube pressure testing
• Valve testing
• Fitting testing
• Hose testing
• Tank and vessel testing
• Hydraulic component testing
• Pressure leakage testing
• Hydrostatic testing
• Water-pressure testing
• Component quality testing
• Research and development
• Production quality control
The actual application depends on the component, required pressure and selected test configuration.
Industries Served
Customized Hydraulic Pressure Testing Machines can be suitable for:
• Automotive Component Testing Industry
• Pipe and Tube Manufacturing
• Valve and Fitting Manufacturing
• Hydraulic Equipment Industry
• Plumbing Component Manufacturing
• Engineering Industries
• Plastic Manufacturing Industry
• Metal Testing Industries
• Material Testing Laboratories
• Quality Control Laboratories
• Research & Development
Customized Hydraulic Pressure Testing Machine Manufacturer in Bhiwadi, Rajasthan
Innotech Engineering Devices Private Limited manufactures customized testing equipment in Bhiwadi, Rajasthan.
Hydraulic pressure testing requirements can differ significantly between products. Therefore, the machine can be configured according to:
• Required test pressure
• Test specimen dimensions
• Test medium
• Pump capacity
• Pressure measurement
• Test holding time
• Fixture arrangement
• Leakage detection method
• Control system
• Data recording requirements
• Safety requirements
• Production or laboratory application
Customers can provide their component drawing, required pressure, test duration and testing objective so that a suitable machine configuration can be developed.
What to Consider Before Buying?
Test Pressure: Determine the required working and test pressure before selecting the hydraulic system.
Test Specimen: The component dimensions and connection type determine the required fixtures.
Test Medium: Confirm the liquid or hydraulic medium required for the application.
Pressure Measurement: Select suitable pressure measurement and display arrangements.
Holding Time: The machine should provide the required pressure-holding duration.
Leakage Evaluation: Determine whether leakage will be checked visually, through pressure drop or another method.
Automation: For production applications, digital or PLC-based automatic testing may be beneficial.
Why Choose Innotech Engineering Devices Private Limited?
• Customized pressure testing solutions
• Application-based machine design
• Customer-specific pressure capacity
• Customized fixtures and connections
• Manual, digital and automatic control options
• Suitable for laboratory and industrial testing
• Special-purpose testing machine capability
• Manufacturing facility in Bhiwadi, Rajasthan
Frequently Asked Questions
What is a Hydraulic Pressure Testing Machine?
It is a testing machine that applies controlled hydraulic pressure to a component to evaluate pressure resistance, leakage or other specified performance characteristics.
What can be tested?
Depending on the configuration, pipes, tubes, valves, fittings, hoses, tanks, hydraulic components and other pressure-containing products can be tested.
Can the pressure capacity be customized?
Yes. The pressure capacity can be selected according to the customer's testing requirement.
Can customized fixtures be provided?
Yes. Fixtures and connections can be designed according to the test specimen and application.
Can the machine be automated?
Yes. Digital or PLC-based pressure control, test sequencing and data recording can be incorporated where required.
Who manufactures Hydraulic Pressure Testing Machines in Bhiwadi, Rajasthan?
Innotech Engineering Devices Private Limited manufactures customized Hydraulic Pressure Testing Machines in Bhiwadi, Rajasthan.
Consult an Expert
Looking for a Hydraulic Pressure Testing Machine for your specific application?
Share your test pressure, component dimensions, test medium, holding time and testing requirements with our technical team.
Innotech Engineering Devices Private Limited
H-307, RIICO Industrial Area, Karoli, Tapukara, Bhiwadi, Rajasthan
📞 +91 9810431604
📧 info@innotechgroup.net
🌐 www.innotechgroup.net
Consult an Expert for the right Hydraulic Pressure Testing Machine configuration.
