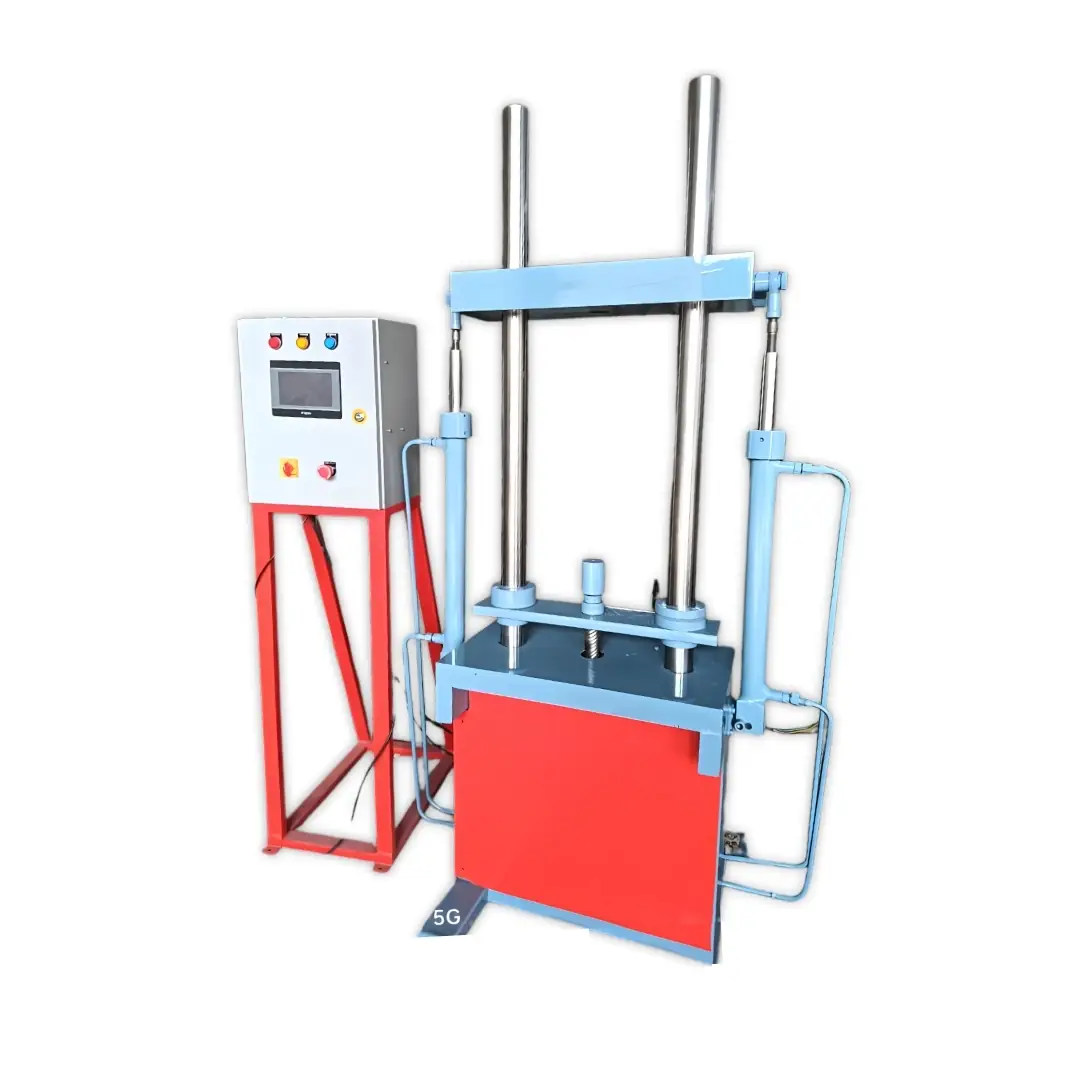

Hydraulic Pressing or Forming Machine

The Hydraulic Pressing or Forming Machine is a versatile hydraulic equipment solution designed for pressing, forming, shaping, bending, straightening, moulding, fitting and other force-intensive industrial operations. The machine uses controlled hydraulic force to process components through suitable dies, moulds, fixtures or tooling.

The machine can be designed according to the required pressing capacity, component dimensions, working area, hydraulic cylinder stroke, tooling arrangement, operating cycle and application requirements. This makes it suitable for general-purpose manufacturing as well as special-purpose industrial applications.

Innotech Engineering Devices Private Limited manufactures and supplies customized hydraulic pressing and forming machines for manufacturing industries, automotive component production, fabrication, engineering workshops, assembly operations, research and development and other industrial applications.

Hydraulic Pressing Machine

A hydraulic pressing machine applies controlled hydraulic force to a component, material or assembly. Depending on the tooling arrangement, it can be used for pressing, fitting, assembly, disassembly, straightening, bush insertion, bearing fitting and other applications.

The hydraulic system provides controlled movement and force application, while the machine frame and working table are designed according to the required operating load and component size.

Hydraulic Forming Machine

A hydraulic forming machine uses hydraulic force together with suitable dies or tooling to shape or form a component. The machine can be configured for different forming processes depending on the material, component geometry and production requirement.

Application-specific dies, fixtures and control arrangements can be incorporated according to the customer's manufacturing process.

Technical Specifications

The following specifications are configurable according to the final machine design and customer requirements.

Note: Pressing capacity, stroke, table dimensions, operating pressure, speed, power requirement and other values should be finalized according to the actual machine configuration before purchase or manufacturing.

Working Principle

The Hydraulic Pressing or Forming Machine generates mechanical force through a hydraulic power system. Hydraulic fluid is supplied to the cylinder, causing the ram to move toward the workpiece.

The component is positioned on the working table or suitable fixture. The selected die, mould or tooling applies the hydraulic force to the component to perform the required pressing, forming, bending, straightening or shaping operation.

After completion of the pressing cycle, the ram returns to its designated position. The finished component can then be removed and the next operation can be performed.

The exact operating sequence depends on whether the machine is supplied as a manual, semi-automatic or automatic system.

Key Features

• Heavy duty hydraulic machine construction
• Controlled hydraulic force application
• Customizable pressing capacity
• Suitable for pressing and forming operations
• Applicationn-specific dies and tooling
• Adjustable stroke according to application
• Manual, semi-automatic or automatic operation
• Hydraulic power pack designed according to machine capacity
• Suitable for repetitive production operations
• Pressure monitoring arrangement
• Suitable safety arrangement
• Customizable working table
• Suitable for special purpose applications
• Application oriented machine design

Applications

The Hydraulic Pressing or Forming Machine can be configured for:

• Metal pressing
• Metal froming
• Component forming
• Sheet forming
• Bending operations
• Starghtening operations
• Moulding applications
• press fitting
• Bush insertion
• Bearing fitting
• Component assembly
• Component disassembly
• Automotive component manufactiring
• Fabrication operations
• Industrial component manufacturing
• Special purpose manufacturing
• Research and development applicaions

Hydraulic Press for Automotive Applications

The machine can be designed for suitable automotive component pressing, forming, bending, straightening and assembly applications.

Application-specific fixtures and dies can be developed according to the component geometry and required manufacturing process.

Special-Purpose Hydraulic Press

For specialized applications, the complete machine can be designed around the customer's component and manufacturing process. Parameters such as pressing capacity, working area, cylinder stroke, tooling, controls, safety arrangements and operating sequence can be selected according to the application.

This makes the machine suitable for applications where a standard hydraulic press may not provide the required configuration.

Customization

Innotech can configure the machine according to:

• Required pressing force
• Component dimensions
• Working table dimensions
• Cylinfder stroke
• workign height
• Hydraulic operating pressure
• Pressrue and return speed
• die and tooling arrangement
• number of operating positions
• Manual, semi-automatic operatiaons
• control System
• Pressure monitoring
• Force measurement
• Safety requirements
• Production cycle requirements

Benefits

Controlled Hydraulic Force

Hydraulic operation provides controlled application of force according to the selected machine configuration.

Application-Specific Design

The machine can be designed around the component, tooling and manufacturing process rather than being limited to a fixed standard configuration.

Suitable for Multiple Operations

With suitable tooling, one machine can support pressing, forming, bending, straightening, fitting and other operations.

Production Flexibility

Manual, semi-automatic or automatic controls can be selected according to the required production process.

Robust Construction

The machine can be engineered with a rigid frame and hydraulic system suitable for the intended operating load.

Why Choose Innotech Engineering Devices Private Limited?

Innotech Engineering Devices Private Limited manufactures and supplies hydraulic and special-purpose industrial machines in India.

Our Hydraulic Pressing or Forming Machines can be designed according to the customer's pressing capacity, component size, tooling, production process and operating requirements.

Instead of providing a one-size-fits-all machine, the configuration can be discussed according to the intended application so that the hydraulic system, frame, cylinder, working area, controls and tooling are appropriately selected.

Frequently Asked Questions

What is a Hydraulic Pressing or Forming Machine?

It is a hydraulic machine used to apply controlled force for pressing, forming, bending, straightening, moulding, fitting and other industrial operations.

What is a hydraulic pressing machine used for?

It can be used for pressing, fitting, assembly, disassembly, straightening, bending and other applications requiring controlled hydraulic force.

What is a hydraulic forming machine?

A hydraulic forming machine uses hydraulic force with suitable dies or tooling to shape or form a component according to the required process.

Can the machine be used for metal Forming?

Yes. It can be configured for suitable metal forming applications with appropriate dies and tooling.

Can it be used for automotive components?

Yes. The machine can be designed for suitable automotive component pressing, forming, bending, straightening and assembly applications.

Can the pressing capacity be customized?

Yes. The hydraulic cylinder, power pack and machine frame can be selected according to the required pressing capacity.

Can the machine be automatic?

Yes. Depending on the application, the machine can be supplied with manual, semi-automatic or automatic controls.

Can special dies and fixtures be provided?

Yes. Application-specific dies, fixtures and tooling can be incorporated according to the component and manufacturing process.

Can the working table and stroke be customized?

Yes. Working table dimensions, working height and cylinder stroke can be configured according to the component and tooling requirements.

Hydraulic Pressing or Forming Machine Manufacturer in India

Innotech Engineering Devices Private Limited manufactures and supplies Hydraulic Pressing or Forming Machines for industrial, automotive, fabrication, manufacturing and special-purpose applications.

For machine configuration, pressing capacity, tooling requirements or application-specific design, contact the Innotech engineering team.
