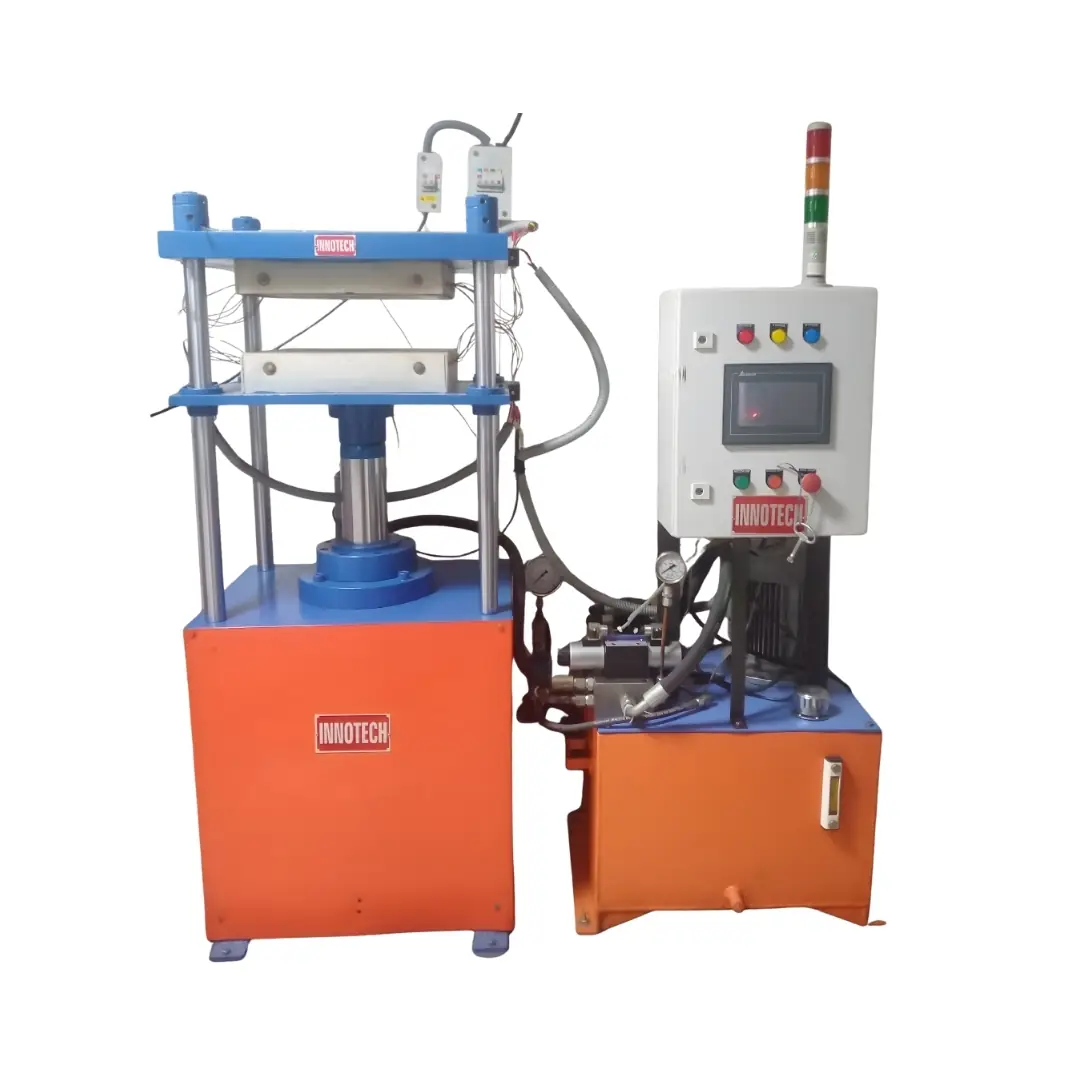

Hydraulic Press Machine Equipped with Digital PLC is designed for controlled pressing, compression, forming, assembly, straightening and other industrial or laboratory applications. The integrated digital PLC control system enables programmed operation and monitoring of the pressing cycle for improved process consistency and ease of operation. Manufactured and supplied by Innotech Engineering Devices Private Limited.
OVERVIEW
Description
Hydraulic Press Machine Equipped with Digital PLC
Hydraulic Press Machine Equipped with Digital PLC is an advanced hydraulic pressing system designed for applications requiring controlled hydraulic force and automated process operation. The machine combines a robust hydraulic pressing mechanism with a digital PLC-based control system to provide controlled and repeatable pressing cycles.
It is suitable for material testing laboratories, manufacturing industries, automotive component applications, engineering workshops, research facilities and other applications where controlled compression and pressing operations are required.
PLC Controlled Hydraulic Press Machine
The integrated Programmable Logic Controller (PLC) provides control over the machine's operating sequence. Depending on the machine configuration, the PLC can be used to control and monitor parameters such as pressing operation, cycle sequence, pressure or load, dwell/holding time and return operation.
Digital control helps reduce operator dependency during repetitive pressing processes and supports consistent operation from one cycle to another.
Applications of Hydraulic Press Machine
The Hydraulic Press Machine can be used for:
• Compression applications
• Pressing operations
• Forming and shaping
• Component assembly
• Component disassembly
• Straightening operations
• Bending applications
• Material testing
• Laboratory sample preparation
• Moulding applications
• Production quality control
• Automotive component applications
• Industrial manufacturing
• Research and development
Technical Specifications
| Parameter |
Specification |
| Machine Type |
Hydraulic Press Machine with Digital PLC Control |
| Application |
Pressing, Compression, Forming, Bending, Straightening, Assembly, Testing and Special-Purpose Applications |
| Hydraulic Press Capacity |
As per customer requirement |
| Maximum Pressing Force | Application specific |
| Hydraulic System |
Hydraulic power pack with hydraulic cylinder and control arrangement |
| Cylinder Type |
Single-acting or double-acting as required |
| Cylinder Stroke |
As per application requirement |
| Working Area / Daylight |
Customized according to component or specimen size |
| Table Size |
As required |
| Working Height |
As per machine design and application |
| Frame Construction |
Heavy-duty fabricated / H-frame / C-frame or customized construction |
| Pressing Direction |
Normally downward or upward, depending on machine configuration |
| Operating Mode |
Manual, Semi-Automatic or Automatic |
| Control System |
PLC-based digital control system |
| PLC |
Industrial PLC, selected according to required functions |
| HMI / Digital Display |
Digital HMI or control panel, as required |
| Pressing Cycle |
Programmable through PLC |
| Pressure / Load Control |
As required by application |
| Pressure Holding / Dwell Time |
Programmable through PLC |
| Return Cycle |
Automatic / Manual / programmable |
| Hydraulic Pressure Monitoring |
Pressure sensor / transducer, as required |
| Load Measurement |
Load cell or suitable measurement system, where required |
| Control Parameters |
Pressing, holding, return and other application-specific parameters |
| Pressing Speed |
Adjustable / application-specific |
| Return Speed |
As required |
| Tooling / Dies |
Customized according to component or process |
| Fixtures |
Application-specific fixtures and supports |
| Sensors |
Position, pressure, load, limit or other sensors as required |
| Data Monitoring |
Digital monitoring of selected process parameters |
| Data Recoding |
Optional, depending on PLC/HMI/software configuration |
| Safety System |
Emergency stop, safety provisions and protective arrangement as required |
| Electrical Control Panel |
PLC-based electrical control panel |
| Power Supply |
As per machine design and site requirement |
| Hydraulic Pump |
Selected according to required pressing force and operating cycle |
| Motor |
Selected according to hydraulic system requirements |
| Machine Dimensions |
Customized according to working area and machine configuration |
| Machine Weight |
Dependsd on machine capacity and construction |
| Automation Level |
Manual / Semi-Automatic / Automatic |
| Special Features |
Can be integrated according to customer process requirements |
| Customization |
Capacity, stroke, table, tooling, fixtures, PLC functions, sensors and automation can be customized |
Important Note:
The above table represents the available/configurable technical parameters and should not be considered as one fixed machine specification. Innotech Engineering Devices Private Limited manufactures Hydraulic Press Machines according to the customer's required pressing capacity, application, working dimensions, stroke, tooling, PLC sequence, automation level and testing or production requirements.
The final technical specification is confirmed after understanding the customer's application and required operating conditions.
Digital PLC Control System
The PLC control system allows the hydraulic press to operate according to a programmed sequence. Depending on the selected configuration, the operator can set or monitor required process parameters through the digital control interface.
The PLC can support automatic sequencing of pressing, pressure holding and return operations, helping provide repeatable processing conditions for suitable applications.
The exact PLC functions, sensors, display arrangement, automation level and control parameters can be configured according to the customer's application requirements.
Hydraulic Press for Material Testing Laboratories
Hydraulic presses are widely used in material and component testing laboratories for controlled loading and compression applications. With suitable fixtures and measurement systems, the machine can be adapted for specific testing procedures.
The PLC-controlled configuration is particularly useful where controlled test sequences and repeatable loading cycles are required.
Hydraulic Press for Industrial Applications
In industrial environments, the machine can be used for pressing, forming, assembly, straightening and other hydraulic operations. Programmable control can help streamline repetitive processes and improve consistency between operating cycles.
Key Features
• Robust hydraulic press construction
• Digital PLC-based control system
• Programmable operating sequence
• Controlled hydraulic pressing
• Digital monitoring and control arrangement
• Suitable for automatic or semi-automatic operation depending on configuration
• Pressure/load monitoring options
• Adjustable process cycle control
• Suitable for repetitive industrial operations
• Suitable for laboratory applications
• Emergency and safety provisions according to machine configuration
• Customizable according to application requirements
Working Principle
The hydraulic power system generates the required pressing force through hydraulic actuation. The workpiece, specimen or component is positioned in the pressing area using suitable fixtures or tooling.
The PLC control system manages the selected operating sequence. The hydraulic actuator applies controlled force, maintains the required condition for the programmed period where applicable, and then returns to the designated position.
Sensors and measurement devices can be integrated with the PLC to monitor selected parameters during the pressing cycle.
Advantages of PLC-Controlled Hydraulic Press
A PLC-based hydraulic press can provide:
• Repeatable pressing cycles
• Programmable operating sequences
• Reduced manual intervention
• Consistent process operation
• Digital monitoring of selected parameters
• Improved production workflow
• Easier operation for repetitive applications
• Flexible control for different processes
• Integration with suitable sensors and safety systems
Hydraulic Press for Automotive Applications
The machine can be used for suitable automotive component pressing, forming, assembly, straightening and testing applications. Appropriate tooling and fixtures can be selected according to the component and manufacturing process.
Hydraulic Press for Research and Development
The PLC-controlled hydraulic press is also suitable for R&D laboratories where controlled and repeatable pressing cycles are required. The machine can be configured with appropriate tooling, sensors and controls for experimental and development applications.
Customization
Hydraulic Press Machine Equipped with Digital PLC can be customized according to the required pressing capacity, working area, stroke, operating cycle, control functions, tooling, fixtures and application.
The PLC program can be developed according to the required machine sequence and process requirements.
Hydraulic Press Machine Manufacturer and Supplier
Innotech Engineering Devices Private Limited manufactures and supplies PLC-controlled Hydraulic Press Machines for laboratory, industrial, automotive and manufacturing applications.
The machine can be configured according to the customer's required hydraulic capacity, automation level, PLC controls, working dimensions, fixtures and process requirements.
Why Choose Innotech Hydraulic Press Machine?
Innotech Engineering Devices Private Limited provides hydraulic and special-purpose machines designed for controlled industrial and laboratory operations. Our PLC-equipped hydraulic press machines can be configured for applications requiring controlled pressing force, repeatable cycles and programmable operation.
Frequently Asked Questions
What is a Hydraulic Press Machine equipped with a Digital PLC?
It is a hydraulic pressing machine integrated with a Programmable Logic Controller (PLC) for controlling and monitoring the machine's operating sequence and selected process parameters.
What is a PLC-controlled hydraulic press used for?
It can be used for pressing, compression, forming, bending, straightening, assembly, disassembly, moulding and suitable material or component testing applications.
What are the benefits of PLC control in a hydraulic press?
PLC control can provide programmable sequences, repeatable operation, digital monitoring and reduced manual intervention during repetitive pressing processes.
Can the PLC control pressing and holding cycles?
Yes. Depending on the machine configuration, the PLC can control pressing, pressure/load holding and return sequences.
Can the machine be used for material testing?
Yes. With suitable fixtures and measurement systems, the hydraulic press can be configured for appropriate material and component testing applications.
Can the hydraulic press be used in automotive industries?
Yes. It can be configured for suitable automotive component pressing, forming, assembly, straightening and testing applications.
Can the machine be customized?
Yes. Pressing capacity, stroke, working area, PLC functions, sensors, tooling, fixtures and automation requirements can be customized according to the application.
Is the PLC system programmable?
Yes. The PLC can be programmed according to the required machine sequence and process requirements.
Is the machine suitable for repetitive production operations?
Yes. Programmable control makes the machine suitable for repetitive operations where consistent pressing cycles are required.
Who manufactures PLC-equipped Hydraulic Press Machines?
Innotech Engineering Devices Private Limited manufactures and supplies Hydraulic Press Machines equipped with digital PLC control systems for industrial and laboratory applications.
