Hydraulic Coil Spring Testing and Scragging Machine
Hydraulic Coil Spring Testing and Scragging Machine
Hydraulic Coil Spring Testing and Scragging Machine is designed for testing, load evaluation, compression and scragging of coil springs used in automotive, industrial and mechanical applications. The machine helps evaluate spring load characteristics, deformation and performance while providing controlled hydraulic loading for testing and scragging operations. Manufactured and supplied by Innotech Engineering Devices Private Limited.
OVERVIEW
Description

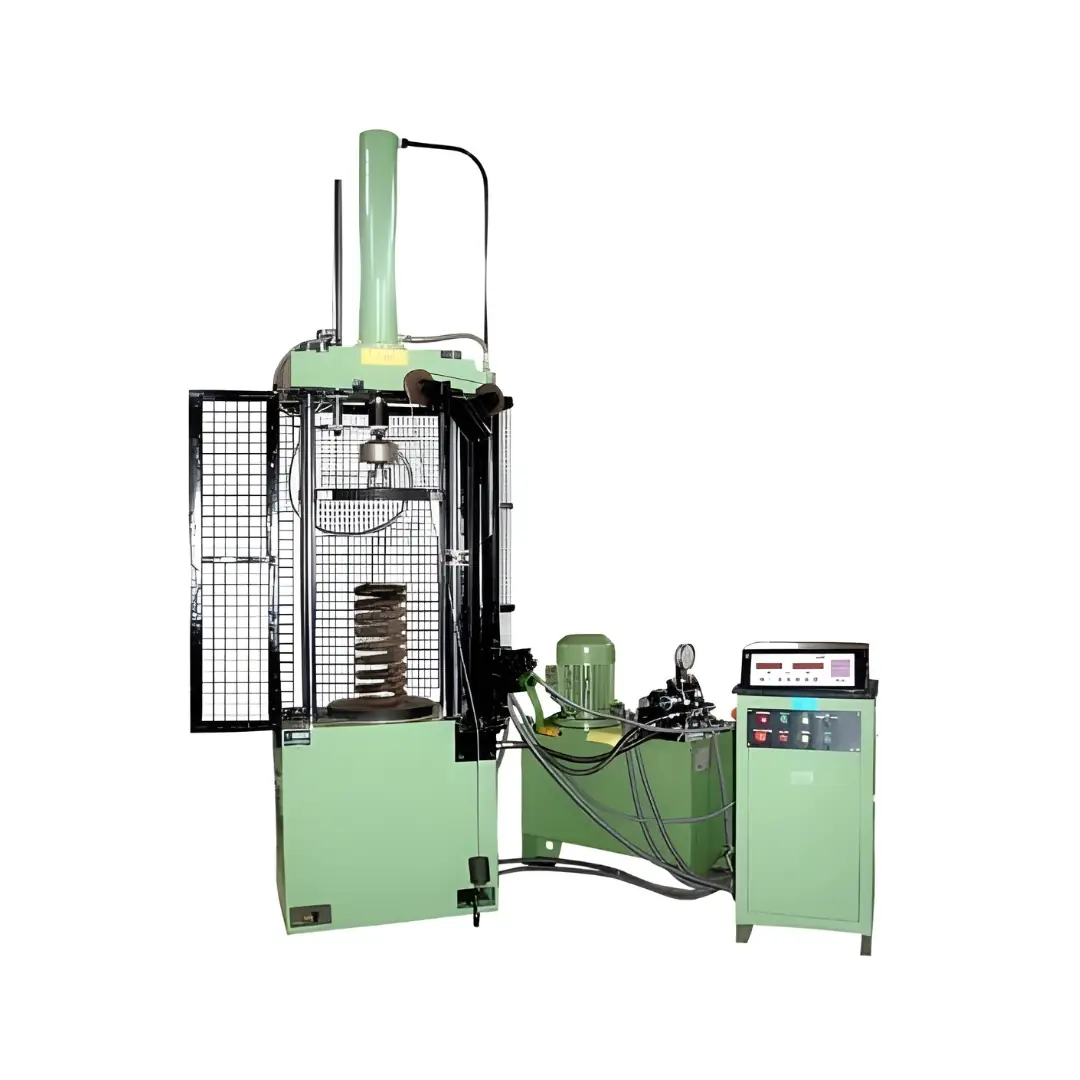

Hydraulic Coil Spring Testing and Scragging Machine
Hydraulic Coil Spring Testing and Scragging Machine is a specialized spring testing system designed for controlled testing, compression, load evaluation and scragging of coil springs. It is suitable for automotive and industrial applications where coil springs need to be tested for load-bearing performance, deformation characteristics and functional consistency.
The machine combines hydraulic loading with a suitable spring testing arrangement to apply controlled force to coil springs. It can be used for quality control, production inspection, product development and research applications involving compression springs and other suitable coil spring components.
Coil Spring Testing Machine
A coil spring testing machine is used to determine the relationship between applied load and spring deflection. During testing, the spring is positioned in the testing area and subjected to controlled compression. The applied load and corresponding displacement can then be evaluated according to the required testing procedure.
This allows manufacturers and laboratories to assess spring performance and identify variations between manufactured components.
Hydraulic Coil Spring Testing Machine
The hydraulic system provides controlled loading for spring testing and scragging operations. Hydraulic actuation is suitable for applications requiring substantial and controlled compressive force.
The machine configuration can be selected according to the spring dimensions, required test load, stroke, testing method and production requirements.
Spring Scragging Machine
Scragging is a controlled compression process used with suitable coil springs to stabilize or set the spring after manufacturing. The spring is compressed under controlled conditions to help achieve the required working characteristics and reduce subsequent settling during service.
The hydraulic coil spring testing and scragging machine can be used for appropriate spring scragging applications along with testing and load evaluation.
Applications of Hydraulic Coil Spring Testing and Scragging Machine
The machine is suitable for:
• Coil spring load testing
• Compression spring testing
• Spring load-deflection testing
• Spring compression testing
• Spring scragging
• Spring setting operations
• Quality control inspection
• Production-line spring testing
• Research and development
• Automotive spring testing
• Industrial spring testing
• Component validation
• Performance evaluation of coil springs
Automotive Coil Spring Testing
Coil springs are important components in automotive suspension and other mechanical systems. The testing machine can be used for evaluating suitable automotive coil springs for load characteristics, compression behavior and dimensional or functional consistency.
It can support incoming inspection, production quality control, product development and validation activities.
Industrial Spring Testing
The machine is also suitable for industrial springs used in machinery, equipment and mechanical assemblies. Controlled compression testing helps manufacturers evaluate the performance and consistency of springs produced for different applications.
Key Features
• Hydraulic loading system
• Designed for coil spring testing and scragging
• Controlled compression operation
• Suitable for load and deflection evaluation
• Robust machine construction
• Suitable for laboratory and industrial applications
• Useful for production quality control
• Suitable for automotive spring applications
• Test configuration can be selected according to application
• User-friendly operating arrangement
• Suitable for repetitive testing and production inspection
• Customizable according to spring dimensions and testing requirements
Technical Specifications
| Parmeter |
Specifications |
| Machine Type | Hydraulic Coil Spring Testing and Scragging Machine |
| Application | Coil Spring testing, compression testing, load testing, spring stiffness evaluation and scragging / pre-setting |
| Maximum Testing Capacity | As per custoemr requirements |
| Maximum Scragging Force | Application specific |
| Spring Type | Compression coil springs / suitable spring configuration as required |
| Spring Size Range | AS per customerr requirement |
| Maximum Spring Height / Length | As required |
| Testing Stroke | Customized according to spring dimensions and test requirements |
| Scragging Stroke | As required for the spring applications |
| Working Area / Daylight | Customized according to spring dimensions |
| Hydraulic System | Hydrulic Power pack with hydraulic cylinder and control arrangement |
| Hydraulic Cylinder | Selected according to required load and stroke |
| Testing Load Application | Controlled hydraulic loading |
| Load Measurement | Load cell / suitable electronic load measurement system |
| Load Display | Digital load display / HMI aas required |
| Displacement Measurement | Digital displacement measurement system |
| Spring Deflection Measurement | Electronic / Digital measurement, according to configuration |
| Load vs Deflection Measurement | Available according to testing requirements |
| Testing Speed | Adjustable according to testing requirements |
| Return Speed | As required |
| Scragging operation | Programmable compression / pre-setting cycle |
| Scragging Cycles | As per spring and process requirement |
| Cycle Control | Manual, Semi-Automatic or Automatic |
| PLC Control | Optional / application-specific |
| HMI / Digital Display | Digital HMI or cointrol panel as required |
| Test Sequence | Programmable according to required testing procedure |
| Load Holding / Dwell time | Adjustable / programmable |
| Upper and lower limits | Can be configurared according to test requirements |
| Spring Fixtures / Supports | Customized according to spring diameter and geometry |
| Compression Plates / Tooling | Application specific |
| Spring Alignment Arrangement | Provided according to spring and machine configuration |
| Data Acquisition | Optional, according to testing requirements |
| Data Recording | Optional digital recording / software based system |
| Test Results | Load, displacement, deflection and other selected parameters |
| Graph / Curve Display | Optional load-deflection graphing system |
| Operating Mode | Manual / Semi-Automatic / Automatic |
| Frame Construction | Heavy-duty fabricated / column-type construction as required |
| Safety System | Emergency stop, guarding and other safety provisions according to configuaration |
| Electrical Control Panel | Digital / PLC basaed control panel |
| Power Supply | As per machine design and site requirement |
| Hydraulic Pump | Selected according to required force and operating cycle |
| Motor | Selected according to hydraulic syustem requirements |
| Machine Dimensions | Customized according to capacity and working area |
| Machine Weight | Depends on machine capacity and construction |
| Automation Level | Manual / Semi-Automatic / Automatic |
| Special Testing Funcitons | Can be incorporated according to customer testing requirements |
| Customization | Capacity, spring size range, stroke, fixture, load measurement, displacement measurement, scragging cycle and control can be customized |
Important Note on Technical Specifications
The above technical specifications represent the configurable parameters of the Hydraulic Coil Spring Testing and Scragging Machine. Exact numerical values are not fixed for every machine.
Innotech Engineering Devices Private Limited designs and manufactures the machine according to the customer's requirements, including spring dimensions, testing capacity, scragging force, stroke, load measurement, deflection measurement, test speed, tooling, fixtures, PLC controls and automation level.
The final machine specification is determined after reviewing the required spring type, dimensions, testing method and scragging process.
Working Principle
The coil spring is positioned between the appropriate loading surfaces or fixtures of the machine. The hydraulic system applies a controlled compressive force to the spring.
During the test, the applied load and corresponding spring displacement can be monitored or recorded using the machine's measurement system, depending on the selected configuration.
For scragging operations, the spring is compressed according to the required process conditions. The controlled compression helps establish the desired spring characteristics and supports consistent production results.
Spring Load and Deflection Testing
Load-deflection characteristics are important parameters when evaluating coil springs. By applying controlled compression and measuring the resulting displacement, manufacturers can assess spring behavior over the required testing range.
The machine can be configured with suitable measurement and control systems based on the required testing method and application.
Spring Quality Control
Hydraulic Coil Spring Testing and Scragging Machine can be incorporated into spring manufacturing quality-control processes. It can help identify variations in spring load, deflection and other specified performance parameters.
Regular testing can support consistent production quality and help manufacturers verify springs against their internal specifications or applicable test requirements.
Industries and Applications
The machine can be used in:
• Automotive component manufacturing
• Automotive suspension component manufacturing
• Coil spring manufacturing
• Spring manufacturing industries
• Mechanical component manufacturing
• Industrial equipment manufacturing
• Engineering industries
• Material and component testing laboratories
• Research and development facilities
• Quality control departments
Hydraulic Coil Spring Testing and Scragging Machine Manufacturer
Innotech Engineering Devices Private Limited manufactures and supplies Hydraulic Coil Spring Testing and Scragging Machines for automotive, spring manufacturing, industrial and laboratory applications.
Machine capacity, spring fixture arrangement, testing stroke, measurement system, controls and other specifications can be configured according to the customer's application and testing requirements.
Why Choose Innotech?
Innotech Engineering Devices Private Limited provides testing and special-purpose machines for industrial and laboratory applications. Our Hydraulic Coil Spring Testing and Scragging Machine can be developed according to the required spring dimensions, testing capacity, operating method and production requirements.
Frequently Asked Questions
What is a Hydraulic Coil Spring Testing and Scragging Machine?
It is a specialized machine used for controlled testing, compression, load-deflection evaluation and scragging of suitable coil springs.
What is spring scragging?
Spring scragging is a controlled compression process used to stabilize or set a suitable coil spring and establish its required working characteristics.
What is a coil spring testing machine used for?
It is used to evaluate spring load, deflection, compression behavior and other specified performance characteristics.
Can this machine test automotive coil springs?
Yes. The machine is suitable for appropriate automotive coil spring testing applications, subject to the spring dimensions and machine configuration.
Can the same machine be used for testing and scragging?
Yes. The machine is designed to support both coil spring testing and suitable scragging operations through controlled hydraulic compression.
What parameters can be evaluated during spring testing?
Depending on the machine configuration, parameters such as applied load, spring deflection and load-deflection characteristics can be evaluated.
Can the machine be customized?
Yes. The machine can be configured according to spring dimensions, required load capacity, stroke, fixtures, measurement system and application requirements.
Where is a hydraulic spring testing machine used?
It can be used in spring manufacturing plants, automotive component industries, engineering industries, production quality-control departments and material testing laboratories.
Is this machine suitable for production quality control?
Yes. Its controlled loading arrangement makes it suitable for repetitive spring inspection and production quality-control applications.
Who manufactures Hydraulic Coil Spring Testing and Scragging Machines?
Innotech Engineering Devices Private Limited manufactures and supplies Hydraulic Coil Spring Testing and Scragging Machines for automotive, industrial and laboratory applications.
