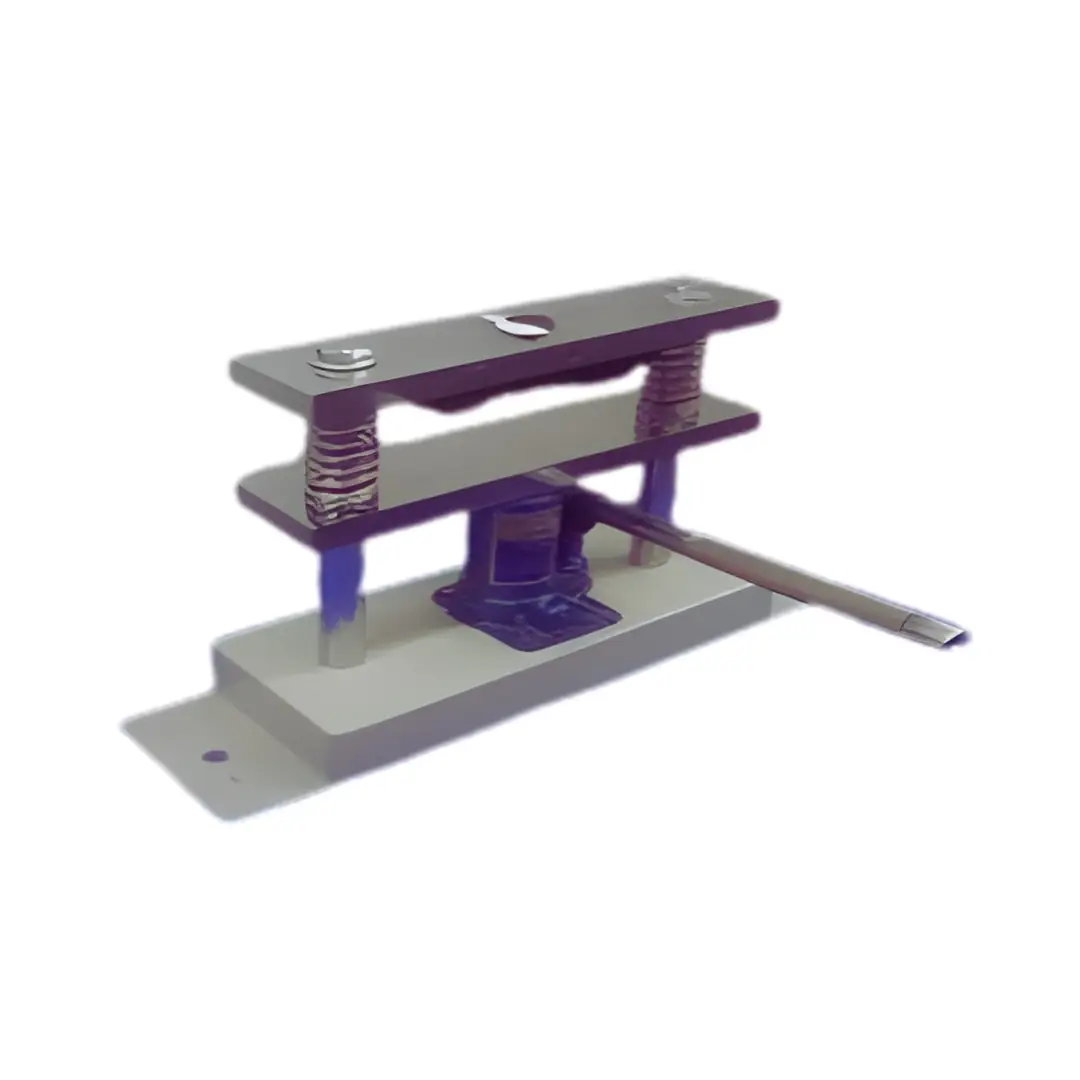

Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine
Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine
The Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine manufactured by Innotech Engineering Devices Private Limited is designed for accurately cutting standardized dumbbell-shaped test specimens from rubber, elastomers, plastics, films and other suitable materials. The hand-operated hydraulic mechanism provides controlled cutting pressure and is suitable for preparing test specimens for tensile strength, elongation and other physical property tests in laboratory and quality control applications.
OVERVIEW
Description

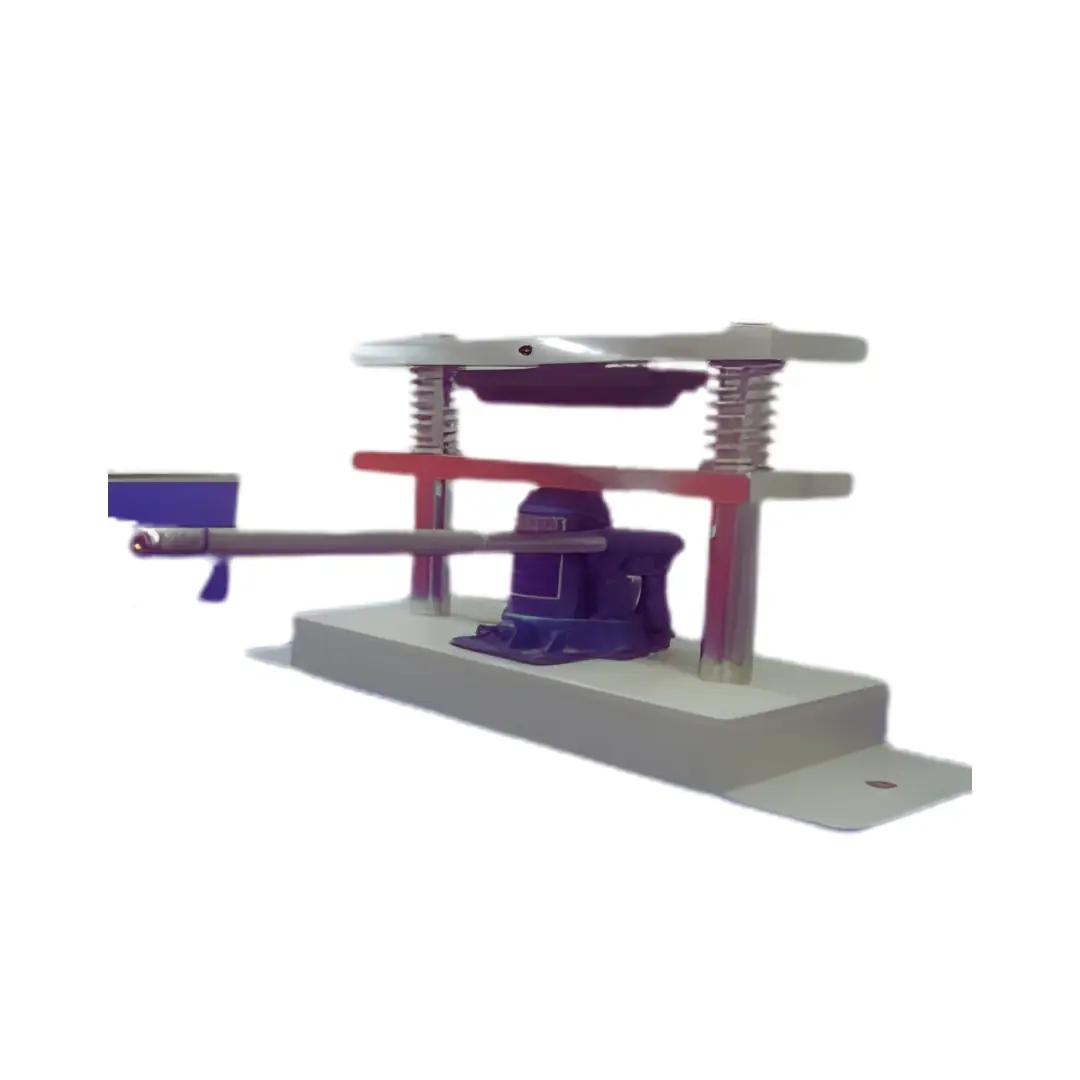

Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine
The Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine manufactured by Innotech Engineering Devices Private Limited is a laboratory specimen preparation machine designed for accurately cutting standardized dumbbell-shaped test specimens from rubber, elastomers, plastics, films and other suitable flexible materials.
The machine uses a manually operated hydraulic system to apply controlled cutting force through a suitable dumbbell cutting die. The specimen is positioned on the cutting surface and the hydraulic mechanism is operated to press the die through the material, producing a clean and consistent dumbbell-shaped test specimen.
Accurate specimen preparation is an important part of laboratory testing because the dimensions and shape of a test specimen can influence the repeatability and reliability of subsequent physical property tests. The Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine provides a practical solution for laboratories that require repeatable preparation of dumbbell specimens.
APPLICATIONS
The Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine can be used for:
- Rubber specimen cutting
- Elastometer specimen preparation
- Plastic specimen cutting
- Polymer specimen preparation
- Plastic film specimen cutting
- Tensile test specimen preparation
- Elongation trest specimen preparation
- Material testing specimen preparation
- Quality control testing
- Research and development applications
- Laboratory sample preparation
RUBBER AND ELASTOMER SPECIMEN PREPARATION
The machine is particularly suitable for laboratories involved in rubber and elastomer testing. Standardized dumbbell-shaped specimens can be prepared from suitable rubber sheets and elastomer materials before tensile strength, elongation and related physical property testing.
PLASTIC AND POLYMER SPECIMEN PREPARATION
Suitable plastic and polymer sheets or films can also be cut into required dumbbell-shaped specimens using an appropriate cutting die selected according to the material and applicable testing requirement.
HAND-OPERATED HYDRAULIC SYSTEM
The machine incorporates a hand-operated hydraulic mechanism for applying cutting pressure. The manual operating arrangement provides a straightforward solution for laboratory specimen preparation without requiring a complex automated cutting system.
DUMBELL CUTTING DIE
The machine can be supplied with suitable dumbbell cutting dies according to the required specimen shape, dimensions and applicable testing standard. The correct die should be selected according to the material being tested and the required test method.
CONSISTENT SPECIMEN PREPARATION
The hydraulic cutting arrangement helps produce specimens with consistent shapes and dimensions when the appropriate die and material preparation procedure are used. Consistent specimen preparation contributes to reliable laboratory testing.
Technical Specifications
| Parameter |
Specification |
| Machine Type | Hand-operated Hydraulic Dumbbell Die Cutting Press Machine |
| Operating System | Manual Hydraulic Operation |
| Application | Cutting Dumbbell Shaped Test Specimens |
| Material Compatibility | Rubber, Plastics, Polymers, Elastometers, and Suitable Sheets Materials |
| Cutting Method | Hydraulic Pressing Using a Suitable Die |
| Cutting Capacity | As per material type and thickness |
| Maximum Cutting Force | As per customer requirements |
| Hydraulic System | Hand-Operated Hydraulic Pump |
| Cutting Die Type | Dumbbell-Shaped Die |
| Die Dimensions | As per applicable test standard or customer requirements |
| Specimen Shape | Dumbbell / Dog-Bone Shape |
| Sample Thickness | As per material and testing method |
| Working Table | Heavy-Duty Cutting Platform |
| Die Mounting Arrangement | Customized as per die design |
| Operation Mode | Manual |
| Pressure Indication | Pressure Gauge, if required |
| Frame Construction | Heavy-Duty Metal Construction |
| Safety Arrangement | As per machine design and applicable safety requirements |
| Power Supply | Not required for manual operation, subject to configuration |
| Machine Dimensions | As per design and customer requirements |
| Customization | Cutting force, die size, sample dimensions, and fixture arrangement as required |
Note : Specification are indicative and not confirmed values for a particular model. Actual cutting force, material thickness, die dimensions, and specimen dimensions depend on the material, applicable testing standarad, and customer requirements.
KEY FEATURES
- Hand-operated hydraulic operation
- Robust laboratory construction
- Suitable for dumbell-shaped specimen cutting
- Suitable for rubber and elastometer materials
- Suitable for plastics and polymers
- Suitable for plastic films and sheets
- Controlled hyudraulic cutting pressure
- Interchangeable cutting die options
- Practical laboratory operation
- Suitabe for quality control laboratories
- Suitable for research and development laboratories
- Suitable for material testing laboratories
- Compact and easy to operate design
APPLICATIONS IN RUBBER TESTING
The machine is suitable for preparing dumbbell specimens used in rubber and elastomer physical property testing applications, including tensile strength and elongation testing.
APPLICATIONS IN PLASTIC TESTING
The machine can be used to prepare suitable dumbbell-shaped specimens from plastic and polymer sheets for subsequent physical property testing.
APPLICATIONS IN FILM TESTING
Suitable flexible plastic films and polymer materials can be prepared into standardized test specimens using an appropriate cutting die and configuration.
APPLICATIONS IN MATERIAL TESTING LABORATORIES
The machine is useful for laboratories that require manual preparation of repeatable test specimens before conducting tensile, elongation and other material tests.
QUALITY CONTROL APPLICATIONS
The Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine can be used in quality control laboratories for preparing test specimens from production materials and comparing physical properties between different batches.
RESEARCH AND DEVELOPMENT APPLICATIONS
Research and development laboratories can use the machine to prepare consistent specimens during the evaluation of new rubber compounds, elastomers, plastics, polymers and other flexible materials.
TESTING STANDARDS
The appropriate dumbbell specimen shape and dimensions depend on the material being tested and the applicable testing standard. Suitable dies can be selected according to the required standard and laboratory testing procedure.
Customers should specify the material, required specimen dimensions and applicable testing standard when ordering the machine so that the appropriate cutting die and configuration can be recommended.
WHY CHOOSE INNOTECH ENGINEERING DEVICES PRIVATE LIMITED?
Innotech Engineering Devices Private Limited manufactures and supplies laboratory and industrial testing equipment for rubber, polymer, plastic, film, material and special-purpose testing applications.
Our Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine is designed as a practical laboratory solution for preparing consistent dumbbell-shaped specimens before physical property testing.
The machine can be supplied with suitable cutting dies according to customer requirements, material type, specimen dimensions and applicable testing standards.
HAND-OPERATED HYDRAULIC DUMBBELL DIE CUTTING PRESS MACHINE MANUFACTURER AND SUPPLIER
Innotech Engineering Devices Private Limited is a manufacturer and supplier of laboratory testing equipment and specimen preparation machines.
Our Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine is suitable for rubber testing laboratories, polymer testing laboratories, plastic testing laboratories, material testing laboratories, quality control departments and research and development facilities.
If you are searching for a Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine, Hydraulic Dumbbell Cutting Machine, Dumbbell Die Cutting Machine, Rubber Dumbbell Cutting Machine, Rubber Specimen Cutting Machine, Plastic Dumbbell Specimen Cutter or Laboratory Dumbbell Die Cutting Press, contact Innotech Engineering Devices Private Limited for technical specifications, cutting die options, customization and quotation.
FREQUENTLY ASKED QUESTIONS
What is a Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine?
A Hand-Operated Hydraulic Dumbbell Die Cutting Press Machine is a laboratory specimen preparation machine used to cut dumbbell-shaped test specimens from suitable rubber, elastomer, plastic, polymer and film materials.
What is the purpose of a dumbbell die cutting machine?
The machine is used to prepare standardized dumbbell-shaped specimens for subsequent physical property tests such as tensile strength and elongation testing.
Which materials can be cut using this machine?
Depending on the machine configuration and cutting die, suitable rubber, elastomers, plastics, polymers, films and flexible sheet materials can be cut.
Can this machine be used for rubber specimen preparation?
Yes. The machine is particularly suitable for preparing dumbbell-shaped rubber and elastomer specimens for laboratory testing.
Can this machine be used for plastic specimens?
Yes. Suitable plastic and polymer sheets can be cut using the appropriate dumbbell cutting die and machine configuration.
What type of die is used in the machine?
A dumbbell-shaped cutting die is used. The die dimensions and shape should be selected according to the required specimen dimensions and applicable testing standard.
Is the machine manually operated?
Yes. The machine uses a hand-operated hydraulic mechanism for applying the required cutting pressure.
Can different dumbbell specimen sizes be prepared?
Different specimen sizes and shapes can be accommodated by using suitable cutting dies. The required die should be specified according to the applicable test standard.
Why is accurate specimen cutting important?
Accurate and consistent specimen dimensions help improve the repeatability of subsequent physical property tests. Proper specimen preparation is therefore an important part of laboratory testing.
Where is a Hydraulic Dumbbell Die Cutting Press Machine used?
The machine is used in rubber testing laboratories, polymer laboratories, plastic testing laboratories, material testing laboratories, quality control departments, research and development laboratories and manufacturing industries.
Can the machine be customized?
The machine can be discussed according to the customer's required material, specimen dimensions, cutting die, testing standard and laboratory requirements.
Who manufactures Hand-Operated Hydraulic Dumbbell Die Cutting Press Machines in India?
Innotech Engineering Devices Private Limited manufactures and supplies laboratory and industrial testing equipment, including specimen preparation equipment for rubber, polymer, plastic and material testing applications.
