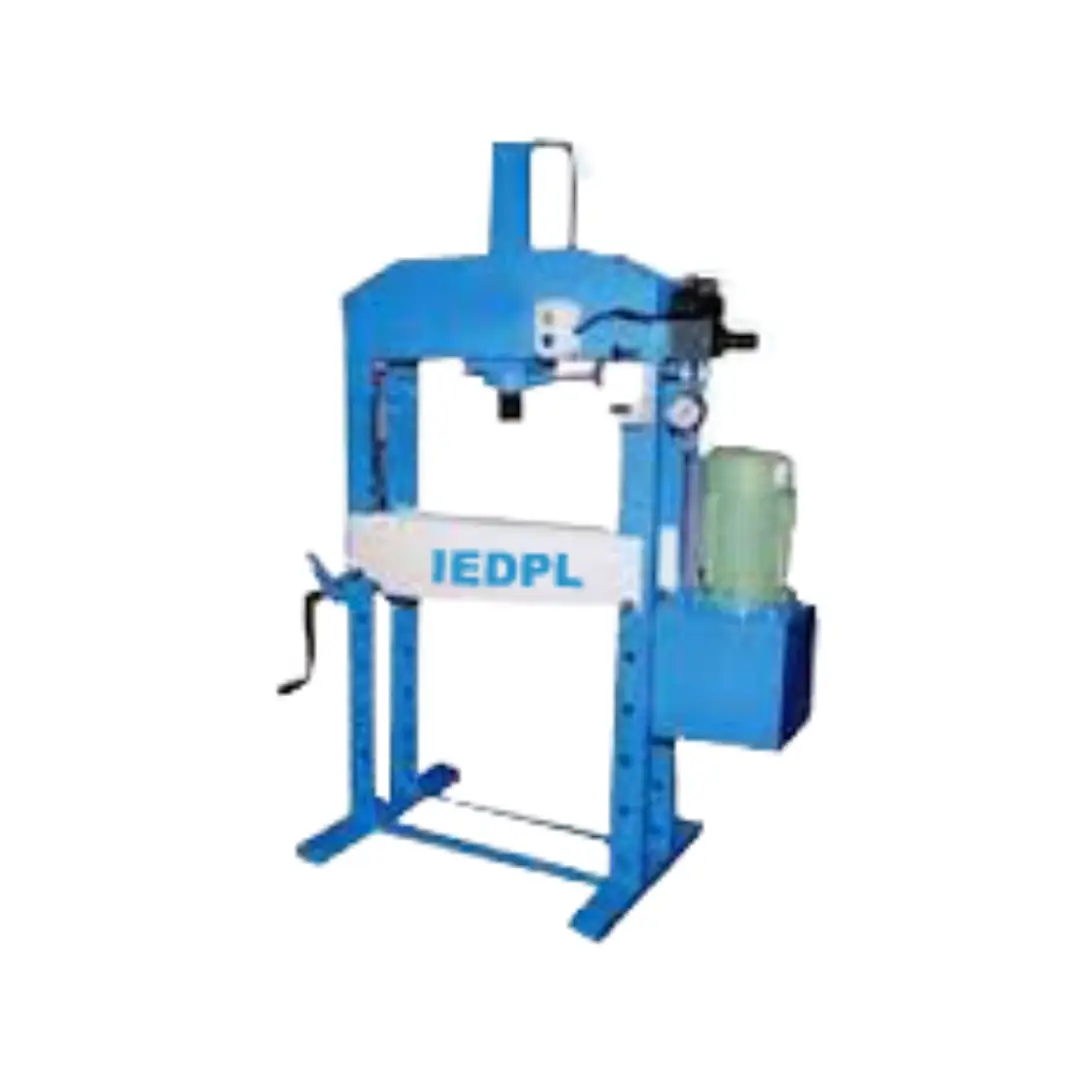

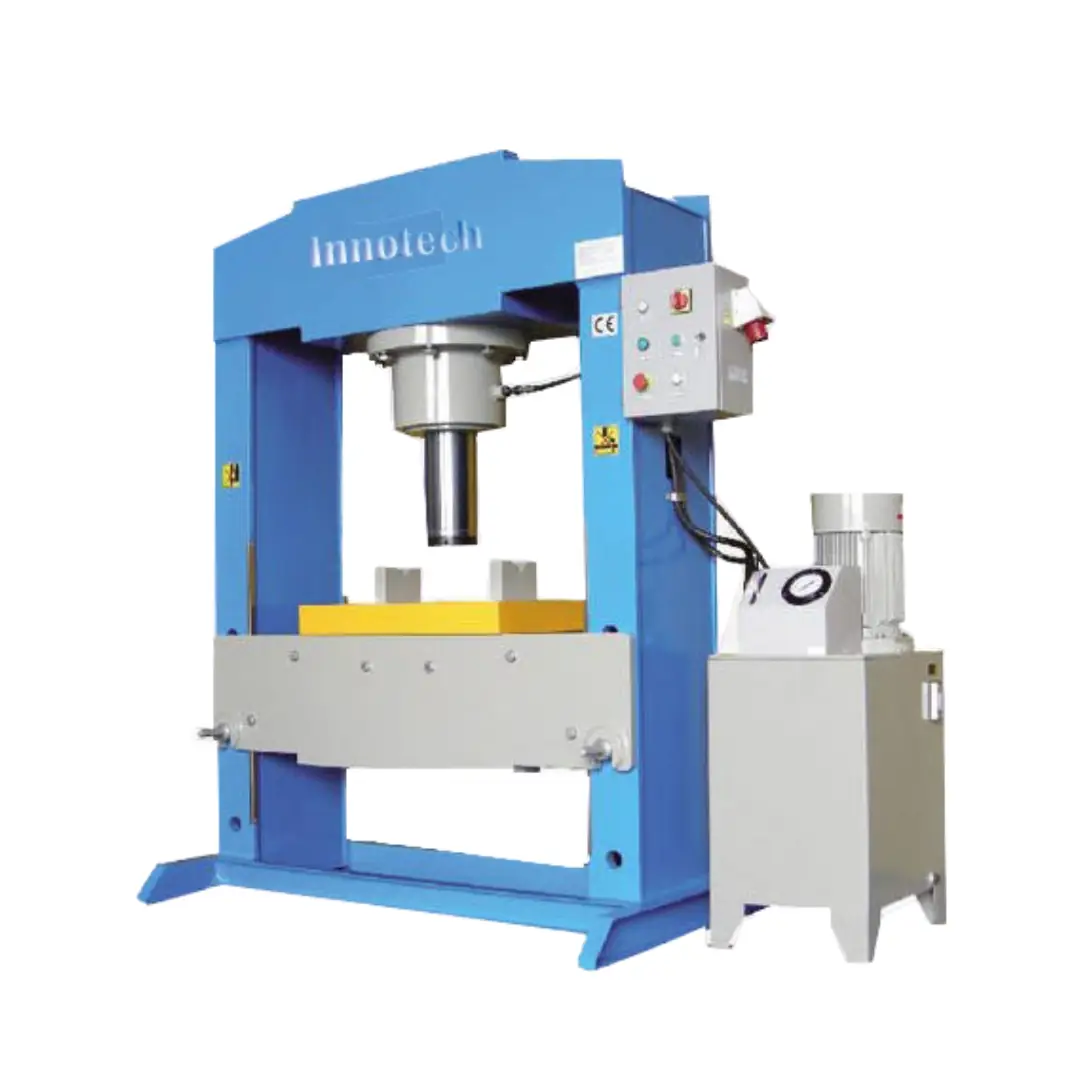

H-Frame Hydraulic Press Machine
H-Frame Hydraulic Press Machine
The H-Frame Hydraulic Press Machine manufactured by Innotech Engineering Devices Private Limited is a robust hydraulic pressing machine designed for controlled pressing, compression, forming, assembly and material testing applications. Its rigid H-frame construction provides stability during hydraulic operations and makes it suitable for industrial workshops, manufacturing units, maintenance facilities, material testing laboratories and special-purpose applications. The machine can be configured according to the required pressing capacity, working area and application.
OVERVIEW
Description
H-Frame Hydraulic Press Machine
The H-Frame Hydraulic Press Machine manufactured by Innotech Engineering Devices Private Limited is a robust and versatile hydraulic pressing machine designed for pressing, compression, forming, assembly, straightening and other industrial and laboratory applications.
The machine features a rigid H-frame structure designed to provide stability and support during pressing operations. Hydraulic pressure is used to generate the required pressing force, making the machine suitable for applications where controlled and powerful compression is required.
The H-Frame Hydraulic Press Machine can be supplied in different configurations according to the required hydraulic capacity, working area, stroke, daylight, operating arrangement and application requirements.
H-FRAME HYDRAULIC PRESS CONSTRUCTION
The H-frame design provides a strong and stable structure for hydraulic pressing operations. The rigid frame supports the hydraulic cylinder and working area while maintaining the required alignment during pressing.
The machine can be designed according to the required working dimensions and pressing capacity to meet specific industrial or laboratory requirements.
WORKING PRINCIPLE
The H-Frame Hydraulic Press Machine operates using hydraulic pressure to generate controlled pressing force. The material, component or specimen is positioned correctly within the working area of the press.
The hydraulic system then applies force through the hydraulic cylinder. The applied force compresses, forms, straightens, assembles or tests the material or component according to the intended application.
The pressing force, hydraulic configuration and operating procedure depend on the selected machine model and customer's application requirements.
APPLICATIONS
The H-Frame Hydraulic Press Machine can be used for:
- Pressing Applications
- Compression Applications
- Component Assembly
- Component Disassembly
- Straightening Operations
- Bending Operations
- Forming Applicatins
- Fabrication Applications
- Maintenance and repair work
- Material Testing Applications
- Laboratory Pressing Applications
- Industrial Production Applications
SPECIAL PURPOSE PRESSING APPLICATIONS
INDUSTRIAL APPLICATIONS
The H-Frame Hydraulic Press Machine can be used in manufacturing and industrial environments for pressing, assembly, straightening, forming and maintenance operations.
MATERIAL TESTING APPLICATIONS
With suitable fixtures and accessories, the machine can be configured for specific material testing and laboratory applications where controlled hydraulic force is required.
WORKSHOP APPLICATIONS
The robust H-frame design makes the machine suitable for workshop applications such as bearing installation and removal, shaft straightening, component assembly and other pressing operations.
Technical Specification
| Parameter |
Specifications |
| Machine Type | H-frame Hyudraulic Press Machine |
| Operating System | Hydraulic |
| Frame Type | H-Frame / Four-Post Style as per design |
| Pressing Capacity | 10-200 Ton (customizable) |
| Hydraulic Cylinder | Single or Multiple Cylinder Configuration |
| Working Pressure | As per required pressing capacity |
| Stroke Length | As per customer requirement |
| Working Table Size | Customized as per component dimensions |
| Table Configuration | Fixed or Adjustable, depending on design |
| Hydraulic Power Pack | Integrated Hydraulic Power Unit |
| Motor Power | As per machine capacity |
| Control System | Manual, Semi-Automatic, or PLC based |
| Operating Mode | Hand Leve, Push Button, or Customized Control |
| Pressure Indication | Pressure Gauge or Digital Display |
| Ram Movement | Controlled Hydrualic Movement |
| Safety Features | Emergency Stop and Safety Arrangement as per design |
| Application | Pressing, Fitting, Straightening, Forming, and Assembly |
| Power Supply | As per customer requirements |
| Machine Construction | Heavy-Duty Fabricated Steel Frame |
| Customization | Capacity, stroke, daylight, table size, and controls can be customized |
Note: The Specifications above are indicative and provided for reference only. Actual pressing capacity, hydraulic pressure, motor power, stroke, table dimensions, and safety arrangements depends on the application and customer requirements.
KEY FEATURES
- Rigid h-frame Construction
- Hydraulic Pressing Mechanism
- Robust and stabel machine structure
- Controlled application of pressing force
- Suitable for industrial applications
- Suitable for workshop appliactions
- Suitable for laboratory applications
- Suitable for material testing applications
- Suitable for assembly and disassembly operations
- Suitable for straightening applications
- Suitable for forming and pressuring applications
- Cab be configured according to customer requirements
- Suitable for special-purpose applications
APPLICATIONS IN DIFFERENT INDUSTRIES
- Manufacturing Industry
- Automotive Industry
- Automotive Component Manufacturing
- Engineering Industry
- Fabrication Industry
- Maintenance Workshops
- Industrial Production
- Material Testing Laboratories
- Research and Development Laboratories
- Quality Contol Departments
- Machine Manufacturing Industry
- General Engineering Applications
AUTOMOTIVE APPLICATIONS
The H-Frame Hydraulic Press Machine can be used for suitable automotive component pressing, assembly, disassembly and maintenance applications.
GENERAL ENGINEERING APPLICATIONS
The machine can be used for pressing and forming operations involving suitable engineering components and materials.
MAINTENANCE AND REPAIR APPLICATIONS
The hydraulic press can be used for suitable workshop maintenance operations including component removal, installation, straightening and repair work.
CUSTOMIZED HYDRAULIC PRESS SOLUTIONS
Innotech Engineering Devices Private Limited can provide H-Frame Hydraulic Press Machine configurations according to specific customer requirements.
Machine capacity, hydraulic system configuration, working area, cylinder arrangement, stroke and accessories can be discussed according to the intended application.
Customers should provide the required pressing force, material or component details, dimensions and application when requesting a machine so that the appropriate configuration can be recommended.
WHY CHOOSE INNOTECH ENGINEERING DEVICES PRIVATE LIMITED?
Innotech Engineering Devices Private Limited manufactures and supplies laboratory and industrial testing equipment, hydraulic presses and special-purpose machines for a wide range of industrial and material testing applications.
Our H-Frame Hydraulic Press Machines are designed with emphasis on robust construction, reliable hydraulic operation, stability and practical industrial usability.
The machine can be configured according to customer requirements for pressing capacity, working dimensions, hydraulic arrangement, accessories and application.
H-FRAME HYDRAULIC PRESS MACHINE MANUFACTURER AND SUPPLIER
Innotech Engineering Devices Private Limited is a manufacturer and supplier of hydraulic presses, testing machines, laboratory equipment and special-purpose industrial machinery.
Our H-Frame Hydraulic Press Machine is suitable for manufacturing industries, engineering workshops, automotive component applications, maintenance facilities, material testing laboratories and special-purpose pressing applications.
If you are searching for an H-Frame Hydraulic Press Machine, H Frame Hydraulic Press, Hydraulic Press Machine, Industrial Hydraulic Press, Workshop Hydraulic Press, Hydraulic Pressing Machine, Hydraulic Compression Press or Laboratory Hydraulic Press, contact Innotech Engineering Devices Private Limited for technical specifications, customization and quotation.
FREQUENTLY ASKED QUESTIONS
What is an H-Frame Hydraulic Press Machine?
An H-Frame Hydraulic Press Machine is a hydraulic pressing machine with a rigid H-shaped frame designed to provide support and stability while hydraulic force is applied to a material, component or specimen.
What is an H-Frame Hydraulic Press used for?
An H-Frame Hydraulic Press can be used for pressing, compression, forming, bending, straightening, assembly, disassembly, maintenance and suitable material testing applications.
Why is it called an H-Frame Hydraulic Press?
The machine is called an H-Frame Hydraulic Press because its main structural frame has an H-shaped configuration that supports the hydraulic pressing system and working area.
Where is an H-Frame Hydraulic Press Machine used?
The machine can be used in manufacturing industries, engineering workshops, automotive industries, fabrication units, maintenance facilities, material testing laboratories and research and development facilities.
Can an H-Frame Hydraulic Press be used for automotive applications?
Yes. With a suitable configuration and tooling, the machine can be used for various automotive component pressing, assembly, disassembly and maintenance applications.
Can an H-Frame Hydraulic Press be used for material testing?
Yes. With suitable fixtures, load measurement and application-specific configuration, an H-Frame Hydraulic Press can be used for certain material testing and laboratory applications.
Can the H-Frame Hydraulic Press Machine be customized?
Yes. The machine can be configured according to the required pressing capacity, working area, hydraulic cylinder arrangement, stroke, operating system and application requirements.
What information is required to select an H-Frame Hydraulic Press?
The required pressing force, material or component to be pressed, component dimensions, working area, required stroke and intended application should be provided when requesting a hydraulic press.
Is the H-Frame Hydraulic Press suitable for workshop applications?
Yes. The machine is suitable for various workshop pressing, assembly, disassembly, straightening and maintenance applications when appropriately configured.
Who manufactures H-Frame Hydraulic Press Machines in India?
Innotech Engineering Devices Private Limited manufactures and supplies hydraulic presses, laboratory testing machines and special-purpose industrial equipment for various industrial and material testing applications.
