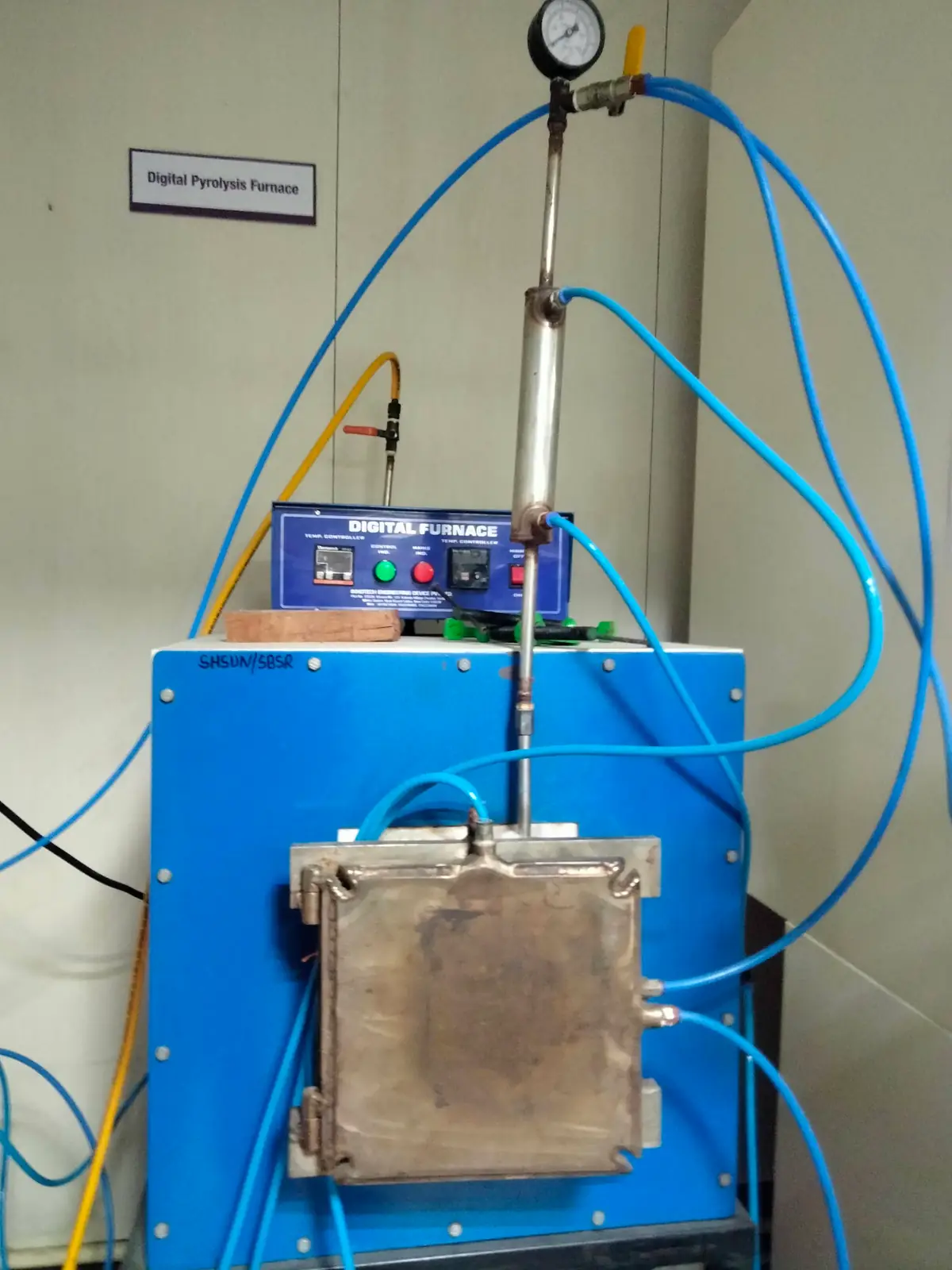

Digital Pyrolysis Furnace for Controlled Thermal Processing

Looking for a digital pyrolysis furnace in India for laboratory research, material processing or industrial applications? A digital pyrolysis furnace is used for heating suitable materials under controlled conditions to investigate or carry out thermal decomposition. Depending on the process, pyrolysis can produce solid residues, condensable vapours and non-condensable gases.

The correct furnace configuration depends on the material being processed, required operating temperature, processing time, chamber capacity, atmosphere requirements and the intended output. Digital temperature monitoring can help operators observe and manage the heating process, while additional control and recording functions depend on the supplied configuration.

When selecting a digital pyrolysis furnace, it is important to confirm the process requirements, safety provisions and available control features before purchasing equipment.

What Is a Digital Pyrolysis Furnace?

A digital pyrolysis furnace is a thermal processing system designed to heat suitable materials under specified conditions that promote decomposition without relying on conventional combustion.

Unlike a standard heating furnace intended primarily for heating samples in air, a pyrolysis system may require controlled oxygen exclusion, an inert gas supply, a sealed processing chamber or other arrangements suited to the intended process.

The exact configuration varies according to the material and the purpose of the experiment or production process. Some applications may also require provisions for vapour handling, gas collection, condensation or residue recovery.

A digital controller can provide temperature setting and monitoring. Additional capabilities, such as programmable heating cycles, data logging, automatic process control and computer connectivity, should be confirmed for the selected model.

Working Principle of a Digital Pyrolysis Furnace

The working principle of a pyrolysis furnace involves heating suitable material under controlled conditions to promote thermal decomposition. The actual procedure depends on the feed material, reactor design and intended output.

Step 1: Prepare the material

Prepare the feedstock according to the process requirements. Material composition, moisture content, particle size and contamination can affect the results.

Step 2: Load the chamber

Place the prepared material into the designated processing chamber or reactor according to the equipment's loading procedure and capacity limits.

Step 3: Establish the required atmosphere

Where the process requires limited oxygen or an inert atmosphere, establish the specified conditions using the designed gas supply and sealing arrangement. Follow the equipment manual and applicable safety procedures.

Step 4: Set the temperature and process duration

Set the target temperature and required holding time using the available digital controller. Heating rate and temperature settings should be determined by the process specification.

Step 5: Carry out thermal decomposition

The material is heated under the selected conditions. Depending on the feedstock, the process may generate solid residue, vapours and gases. These products must be managed using a suitable process and handling system.

Step 6: Cool and recover the products

Allow the system and processed material to cool according to the prescribed procedure. Recover solid residues or other products only through the equipment's intended handling arrangement and after confirming safe conditions.

Step 7: Record and evaluate the results

Record relevant process parameters and observations. If the system includes data logging, use the available functions according to the operating procedure.

Safety: Pyrolysis can generate hot surfaces, combustible gases, hazardous vapours and pressure-related risks. Operation requires appropriate engineering controls, ventilation, gas handling, temperature protection and a documented safe operating procedure.

How to Choose the Right Digital Pyrolysis Furnace

Before purchasing a digital pyrolysis furnace, consider these factors:

• Material type: identify the biomass, polymer or other feedstock to be processed.
• Temperature requirement: Establish the required operating range and heating profile.
• Processing capacity: Specify the sample quantity or batch size.
• Atmosphere requirements: Determine whether oxygen exclusion, inert gas or a sealed reactor is required.
• Product recovery: Identify whether solid residures, condensable vapours or gases need to be collected.
• Control system: Confirm digital control, programmable cycles and data-recording requirements.
• Material compatibility: Check that chamber and seal materials suit process chemistry and temperature.
• Safety and emissions: Review ventilation, gas handling, pressure protection and applicable environmental requirements.
• Power and installation: Confirm the required electrical supply, space and site conditions.

Providing these details helps determine a suitable furnace configuration.

Digital Pyrolysis Furnace Price in India

The price of a digital pyrolysis furnace in India depends on its operating temperature, chamber capacity, heating system, atmosphere control, digital controller, process monitoring, product recovery arrangement and safety features.

A laboratory-scale research furnace may have different requirements from a system intended for larger batch processing. Additional gas handling, condensation, emissions control or specialised reactor components may also affect the final cost.

For an accurate quotation, share the material to be processed, target temperature, required batch capacity, atmosphere requirements and expected outputs.

Digital Pyrolysis Furnace Manufacturer and Supplier Enquiries

If you are looking for a digital pyrolysis furnace in Bhiwadi, Rajasthan, Delhi NCR, Mumbai, Bengaluru, Kolkata or elsewhere in India, provide your process requirements and intended application when enquiring.

These are enquiry locations, not claims of separate offices in each city. Equipment availability, delivery, installation and technical support should be confirmed for the proposed configuration.

Frequently Asked Questions

1. What is a digital pyrolysis furnace used for?

It is used to heat suitable materials under controlled conditions to study or carry out thermal decomposition. Applications depend on the material and furnace configuration.

2. How is a pyrolysis furnace different from a conventional furnace?

A conventional furnace may primarily heat materials in air. A pyrolysis system is designed around thermal decomposition and may require controlled oxygen exposure, gas handling and product recovery arrangements.

3. Can a digital pyrolysis furnace process plastic waste?

Some polymer materials can be investigated through pyrolysis, but suitability depends on the feedstock, operating temperature, reactor design, emissions controls and safety provisions. Confirm that the specific furnace is designed for the intended material.

4. What is the maximum temperature of this furnace?

The maximum temperature has not been provided in the product details. Confirm it with the supplier before selecting the machine.

5. Does the furnace include inert gas control?

This has not been confirmed. Ask whether gas purging, flow control, sealing and atmosphere monitoring are included or available as options.

6. Does digital control mean automatic process operation?

Not necessarily. A digital controller may provide temperature setting and monitoring, while programmable cycles, automatic sequencing and data logging depend on the actual configuration.

7. What affects the price of a digital pyrolysis furnace?

Price depends on capacity, temperature range, chamber design, atmosphere control, instrumentation, gas and vapour handling, safety systems and accessories.

8. What information is needed for a quotation?

Provide the feed material, target temperature, batch size, required atmosphere, processing duration, desired output and any special safety or environmental requirements.

Request a Quotation

Looking for a Digital Pyrolysis Furnace for laboratory research or a specified thermal processing application?

Share your material type, required temperature, batch capacity and process requirements to discuss a suitable configuration and request a technical and commercial quotation.
