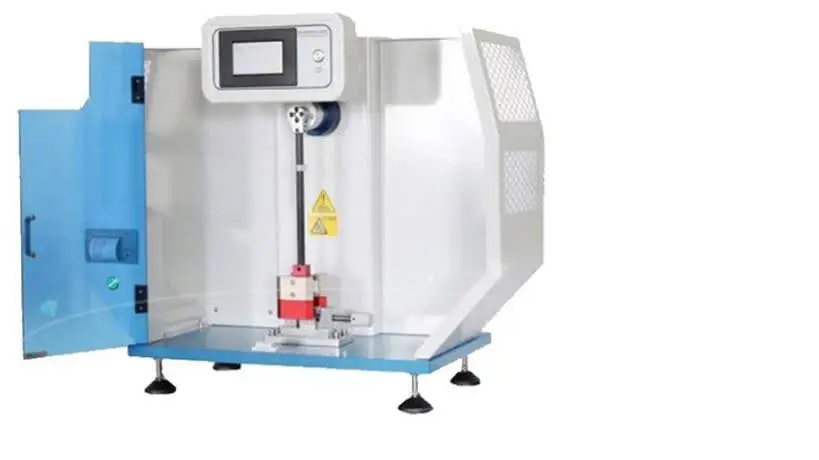

Digital Charpy and Izod Pendulum Impact Testing Machine for Material Testing

Looking for a Digital Charpy and Izod Impact Testing Machine in India to evaluate material toughness and impact resistance? Innotech Engineering Devices Private Limited provides testing equipment solutions for industrial and laboratory applications. The suitable machine configuration depends on the material being tested, specimen dimensions, required impact energy range, test method and applicable standard.

A pendulum impact testing machine measures the energy absorbed by a specimen when it is struck by a pendulum. This information helps engineers and quality-control teams evaluate the material's response to sudden loading and compare specimens under defined test conditions.

What Is a Digital Charpy and Izod Impact Testing Machine?

A digital Charpy and Izod pendulum impact testing machine is designed to assess the impact behaviour of compatible material specimens. The pendulum is raised to a defined starting position and released to strike the prepared specimen. The machine measures the energy absorbed during fracture or impact according to the selected test method.

The digital measurement system displays the test result electronically, depending on the model and configuration. Charpy and Izod testing use different specimen-support and striking arrangements, so the machine must have the appropriate fixtures and configuration for each required method.

Types of Pendulum Impact Testing

1. Charpy Impact Testing

In a Charpy impact test, the specimen is generally supported horizontally at both ends and struck by a pendulum on the specified face. The test measures the energy absorbed during impact under the selected procedure.

Charpy testing is used for suitable metals, plastics and other materials when the relevant test method applies. Specimen dimensions, notch geometry, temperature conditions and pendulum capacity depend on the material and standard.

2. Izod Impact Testing

In an Izod impact test, the specimen is generally held vertically as a cantilever and struck by a pendulum at the prescribed location. The test evaluates the material's impact response under the specified test conditions.

Izod testing is commonly associated with plastics and may also be used for other materials where the applicable standard specifies the method. Correct specimen preparation, clamping and striker arrangement are essential for meaningful results.

3. Digital Impact Energy Measurement

A digital display can make impact-energy readings easier to view and record. Depending on the selected model, additional features such as result storage, data transfer or reporting may be available. Confirm the included functions before ordering.

Applications of a Charpy and Izod Impact Testing Machine

The machine may be used in suitable testing applications involving:

• Plastic an polymer testing: Evaluating impact resistance of compatible plastic specimens.
• Metal testing laboratories: Assessing impact behaviour of suitable metallic materials using the applicable test method.
• Material research and development: Comparing the impact response of different material grades or foumulations.
• Manufacturing quality control: Supporting inspection of incoming materials and production batches.
• Automotive and engineering industries: Evaluting suitable materials used in components and products.
• Educational and research institutions: Demonstrating and studying material behaviour under impact loading.
• Quality assurance laboratories: Recording impact teste results according to defined procedures.

The machine configuration, fixtures and applicable test standard must be suitable for the material and specimen being tested.

How Does the Pendulum Impact Test Work?

1. Prepare the specimens: Prepare the samples to the dimensions and notch requirements specified by the applicable test method.
2. Set up the machine: Install the appropriate pendulum, striker, supports or clamps for the selected test.
3. Position the specimen: Place and secure the specimen according to the Charpy or Izod procedure.
4. Release the pendulum: The pendulum swings and strikes the specimen at the prescribed location.
5. Measures absorbed energy: The machine determines the energy absorbed during the impact according to its measurement system.
6. Record the result: Record the result alongside the material details, test method and relevant test conditions.

Always follow the machine operating manual and applicable testing standard. Impact testing can involve sudden specimen fracture, so appropriate guarding and safe operating procedures are essential.

How to Choose the Right Impact Testing Machine

Before purchasing a digital Charpy and Izod pendulum impact testing machine, consider the following:

• Material type: Identify whether you are testing metals, plastics or another materials.
• Test method: Confirm whether you need Charpy, Izod or both.
• Impact energy range: Select a suitable pendulum capacity for the expected material behaviour and test procedure.
• Specimen dimensions: Check that the supports, clamps and strikers match the required method.
• Digital features: Decide whether a digital display alone is sufficient or if data storage and reporting are required.
• Testing standards: Specify the applicable ASTM, ISO,  ISor customer-specific standard.
• Calibration and support: Confirm calibration documentation, installation, training and after-sales support.

Sharing these details helps Innotech discuss a suitable machine configuration for your application.

Digital Charpy and Izod Impact Testing Machine Price in India

The price of a digital Charpy and Izod impact testing machine in India depends on the pendulum energy range, supported test methods, digital measurement system, included accessories, calibration requirements and any additional features.

A machine configured for a specific test method may differ in price from a configuration supporting both Charpy and Izod tests. The number and capacity of pendulums, specimen fixtures and data-recording options can also affect the final quotation.

For an accurate price, share your material type, test method, required impact energy range, applicable standard and accessory requirements with Innotech Engineering Devices.

Why Contact Innotech Engineering Devices?

Innotech Engineering Devices Private Limited supplies industrial testing machines and laboratory equipment for material evaluation, research and quality-control applications. Our team can discuss your test requirements and help clarify the configuration details to be considered.

Before ordering, confirm the rated impact energy, supported test methods, measurement performance, accessories, standards compatibility, calibration requirements, warranty and commercial terms in the final technical quotation.

Request a Quote for a Digital Charpy and Izod Impact Testing Machine

Need a pendulum impact testing machine for plastic or metal specimens? Contact Innotech with your material type, required test method, specimen dimensions, impact energy range and applicable testing standard.

Email: info@innotechgroup.net
Phone: +91 9810431604
Address: H-307, RIICO Industrial Area, Karoli, Tapukara, Bhiwadi, Rajasthan, India

Contact us to discuss your application and request a quotation for a suitable machine configuration.

Frequently Asked Questions

What is a Charpy and Izod impact testing machine used for?

It is used to evaluate the impact behaviour and energy absorbed by compatible material specimens under defined test conditions.

What is the difference between Charpy and Izod testing?

The main difference is the specimen arrangement and striking configuration. Charpy specimens are generally supported horizontally at both ends, while Izod specimens are generally held vertically as a cantilever. Follow the arrangement specified by the relevant standard.

Can one machine perform both Charpy and Izod tests?

Some configurations can support both methods with suitable fixtures and accessories. Confirm the exact capability and included accessories with the supplier before purchase.

Which materials can be tested?

Depending on the machine, pendulum capacity and accessories, suitable metals, plastics and other materials may be tested. Confirm compatibility with the material and applicable standard.

What affects the price of an impact testing machine?

Price depends on the impact energy range, test methods, pendulums, fixtures, digital measurement features, accessories and calibration requirements.

What details should I provide for a quotation?

Share the material type, required test method, specimen dimensions, impact energy range, applicable standard and any digital reporting requirements.
