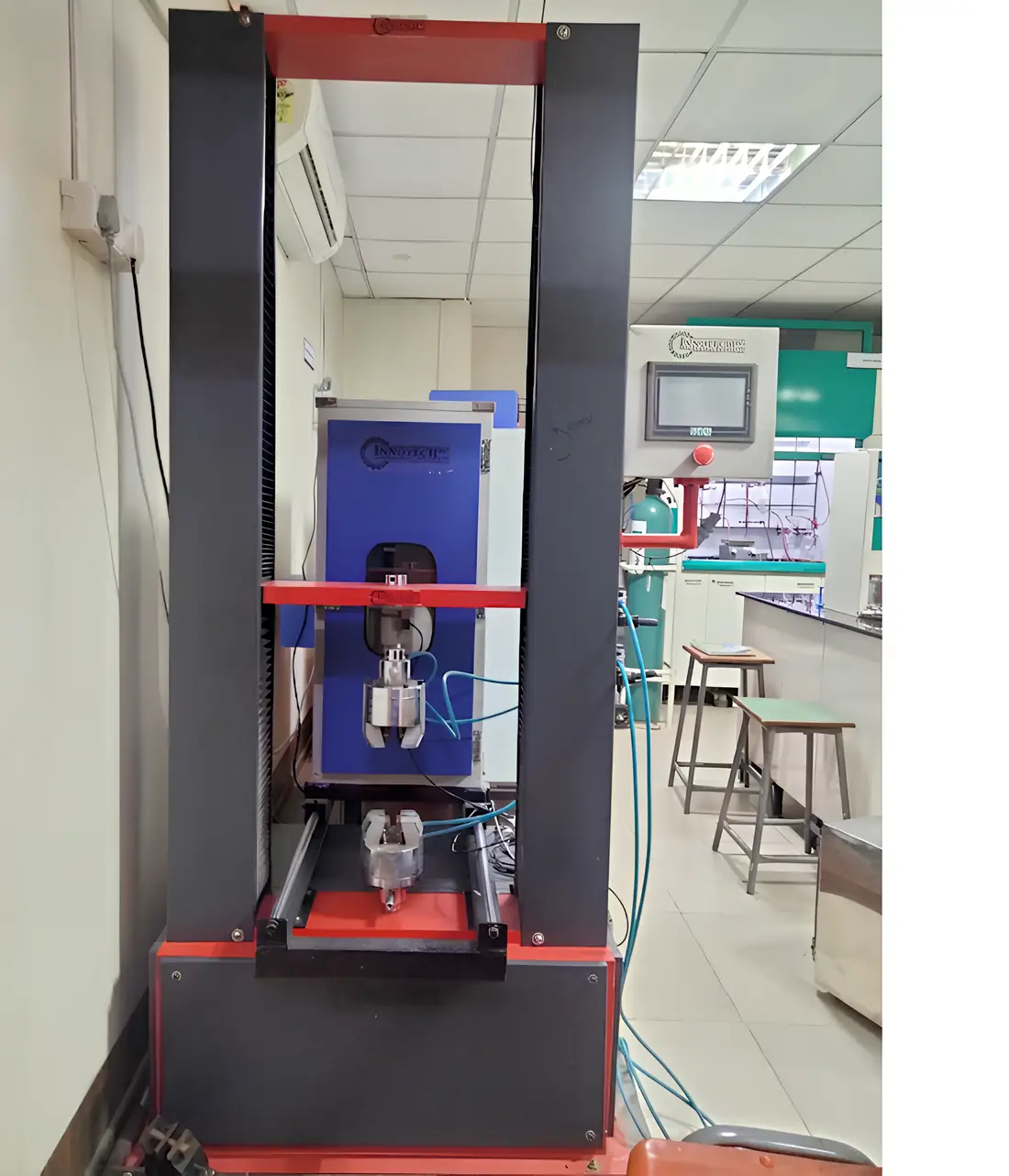

I-TTM-5kN Computerised Tensile Testing Machine with Low-Temperature Chamber

Looking for a 5 kN tensile testing machine in India for cable testing, cold elongation testing, or laboratory material evaluation? The Innotech I-TTM-5kN is a computerised servo-controlled tensile testing machine designed to measure the tensile behaviour of suitable specimens under ambient and controlled low-temperature conditions. With a low-temperature test chamber operating down to −40°C, digital load measurement, extensometer integration, and computer-based test analysis, it supports testing applications where material performance at low temperatures is important.

Innotech Engineering Devices Private Limited manufactures and supplies tensile testing machines and customized testing solutions for industrial, manufacturing, quality-control, and laboratory applications. The machine configuration can be discussed according to the material being tested, specimen dimensions, required test method, applicable standards, and customer-specific requirements.

What Is a 5 kN Tensile Testing Machine?

A tensile testing machine applies a controlled pulling force to a specimen until the required test endpoint or specimen failure is reached. The recorded force and extension data help evaluate the specimen's mechanical behaviour.

The I-TTM-5kN has a stated maximum capacity of 5 kN and is supplied with digital load cells. Additional 500 N and 1 kN load cells are specified for testing across different force ranges. The appropriate load cell should be selected according to the expected test force and required measurement accuracy.

When configured with suitable specimen grips and extension measurement, the machine can be used to assess tensile force, breaking load, elongation, and other calculated tensile properties supported by the selected test method and software.

Cold Elongation Testing at Low Temperatures

Some materials, including cable insulation and sheathing compounds, need to be evaluated under low-temperature conditions. The I-TTM-5kN combines a tensile testing machine with an environmental chamber designed to operate from −40°C to ambient temperature.

The chamber has a clear viewing window, a heated glass door for visibility, and a sliding arrangement for fitting the test setup. This configuration allows specimens to be tested under specified low-temperature conditions when the applicable procedure, conditioning time, fixtures, and measurement arrangement are followed.

The supplied system specifications reference IS 10810-7, IS 1608:2005, IEC 60811-50, and IEC 60811-505. The applicable standard and its exact requirements should be confirmed for the material and test being performed before ordering.

Working Principle of the I-TTM-5kN

The working principle of a tensile testing machine is based on applying a controlled tensile load and measuring the specimen's response.

1. Specimen preparation: Prepare the specimen according to the relevant test method and required dimensions.
2. Grip installation: Secure the specimen using suitable grips and jaw inserts.
3. Test setup: Select the required load cell, test speed, measurement settings, and test procedure.
4. Temperature conditioning: For cold elongation tests, place the specimen in the chamber and condition it according to the applicable procedure.
5. Tensile loading: The servo-controlled drive moves the test system at the selected jaw separation speed, applying tension to the specimen.
6. Data acquisition: The system records load and displacement or elongation data. The extensometer can provide extension measurements when configured for the test.
7. Analysis and reporting: The software generates supported graphs, calculations, and test reports for review.

Actual test steps and calculations depend on the selected standard, specimen type, accessories, and software configuration.

Digital Measurement and Testing Software

The computerised test system supports digital display of load, elongation or displacement, and chamber temperature. Software features listed for this configuration include live load-versus-displacement and stress-versus-strain graphs, automatic reports, statistical analysis, cyclic tests, and segmented control profiles.

Depending on the test method and available input data, the software can calculate parameters such as peak load, break load, tensile strength, elongation at break, Young's modulus, yield stress and strain, and 0.2% proof stress and strain.

The listed data-transfer specification is USB at 1 kHz or better. Software and test settings should be confirmed against the final system configuration and applicable test requirements.

Long-Travel Extensometer

The specified optical digital encoder extensometer has a scan range of 720 mm and a resolution of 0.01 mm. The listed gauge lengths are 10, 15, 20, 25, 40, and 50 mm.

It is specified for integration with the 5 kN tensile testing machine and an existing 25 kN universal testing machine. Its stated accuracy is 1% at a 25 mm gauge length, with ISO 5893 Class A and ASTM E83 Class C referenced in the supplied specification. Confirm the exact calibration and compliance requirements for the intended application.

Low-Temperature Chamber Design

The environmental chamber is specified for operation from −40°C to ambient temperature. It features stainless-steel construction, air cooling, a branded digital PID temperature controller, and a clear glass viewing window. A heated glass door helps maintain visibility during low-temperature operation.

The sliding chamber arrangement is designed to facilitate the fitting of grips to the tensile testing machine. The stated temperature accuracy is ±1°C with a display resolution of 0.1°C.

Applications of the I-TTM-5kN

The I-TTM-5kN can be considered for suitable applications involving:

• Tensile testing of cable insulation and sheathing specimens
• Low-temperature elongation testing of compatible materials
• Tensile strength and breaking-load evaluation
• Elongation and extension measurement
• Material comparison and qulaity-control testing
• Electrical cable and accessory testing laboratories
• Polymer and material research applications, where the test configuration is suitable

The actual scope of testing depends on the specimen, grips, temperature-conditioning procedure, measurement system, and applicable standard.

Customized Tensile Testing Solutions

Not every testing application can be covered by a standard machine configuration. Innotech Engineering Devices Private Limited also works with customers to discuss customized testing machines and application-specific arrangements.

Depending on technical feasibility, requirements may include alternative grips, additional load cells, special specimen fixtures, software functions, data acquisition, or integration with existing testing equipment. Share your material type, expected load, specimen dimensions, test temperature, required standard, and reporting needs to help determine the appropriate configuration.

Tensile Testing Machine Price in India

The price of a tensile testing machine in India depends on its capacity, load cells, control system, extensometer, software, grips, environmental chamber, calibration requirements, installation, and customization.

A 5 kN tensile testing machine with a low-temperature chamber is a more application-specific configuration than a basic ambient tensile tester. For a relevant quotation, provide your required test methods, operating temperature, specimen details, applicable standards, and any special accessories or documentation.

Contact Innotech Engineering Devices Private Limited for a quotation based on your technical requirements.

 Why Choose Innotech Engineering Devices Private Limited?

• Testing machines for industrial, laboratory, and quality-control applications
• Computerised and servo-controlled testing configurations
• Options for additional load cells and applications-specific grips
• Testing software with graphs, calculations, and report-generation features
• Low-temperature testing arrangement for suitable applications
• Customized testing-machine solutions based on technical requirements
• Installation, commissioning, operator training, and after-sales support as specified in the supply scope

Frequently Asked Questions

1. What is the capacity of the I-TTM-5kN?

The machine has a specified maximum capacity of 5 kN, with additional 500 N and 1 kN load cells listed in the supplied configuration.

2. What is the temperature range of the low-temperature chamber?

The chamber is specified to operate from −40°C to ambient temperature, with stated temperature accuracy of ±1°C and resolution of 0.1°C.

3. What tests can this tensile testing machine perform?

Depending on the specimen, accessories, and selected method, it can support tensile strength, breaking-load, elongation, and related tensile-property evaluation, including suitable low-temperature tests.

4. Does the machine include a digital display and test software?

The specified configuration includes digital display of load, elongation or displacement, and temperature, together with software features for graphs, calculations, test reports, and data analysis.

5. Which standards are referenced for this system?

The supplied specifications reference IS 10810-7, IS 1608:2005, IEC 60811-50, and IEC 60811-505. Confirm the applicable test method and required compliance for your specific application.

6. What affects the price of a 5 kN tensile testing machine in India?

Price depends on the load cells, extensometer, grips, software, chamber, calibration, installation, and customized requirements. Request a quotation with your test details for a suitable configuration.

7. Can Innotech customize the tensile testing machine?

Customization can be discussed for application-specific fixtures, load measurement, control, software, and integration requirements, subject to technical feasibility and confirmation in the final specification.

Request a Quotation

For the Innotech I-TTM-5kN, share your specimen material, test method, temperature requirements, load range, applicable standard, and desired accessories.
