C-Frame Hydraulic Sheet Metal Bending Machine (Hydraulic Press Brake)

Innotech Engineering Devices Private Limited is a manufacturer and supplier of C-Frame Hydraulic Sheet Metal Bending Machines in India. Also known as an Industrial Hydraulic Press Brake, this machine is designed for bending, forming and shaping sheet metal components using a hydraulic pressing mechanism.

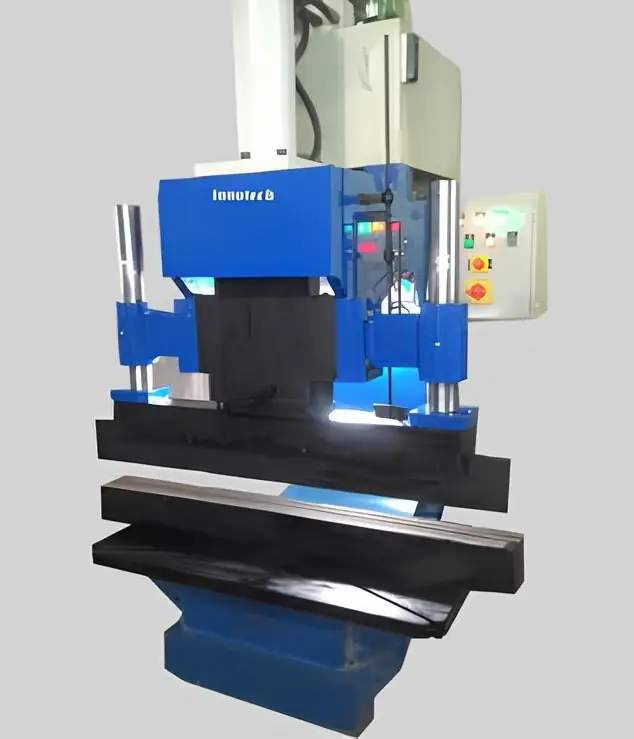

The machine features a heavy-duty C-frame structure, hydraulic upper pressing arrangement, upper and lower bending tooling and an electrical control panel. Its configuration is suitable for industrial metalworking and sheet metal fabrication applications where controlled bending force is required.

Innotech manufactures customized hydraulic sheet metal bending machines according to customer specifications, including bending capacity, working length, material thickness, tooling arrangement and production requirements.

What Is a Hydraulic Sheet Metal Bending Machine?

A Hydraulic Sheet Metal Bending Machine, commonly known as a Hydraulic Press Brake, is an industrial machine used to bend flat metal sheets into specific angles, shapes and profiles.

The machine applies force through a hydraulic mechanism to move the upper bending tool towards the lower die. The sheet metal is positioned between the tooling, and the applied force creates the required bend.

Hydraulic press brake machines are widely used in metal fabrication, automotive manufacturing, electrical enclosure production, industrial equipment manufacturing and other sheet metal processing industries.

Why Is a Hydraulic Press Brake Used?

Sheet metal bending is an important manufacturing process used to convert flat metal sheets into functional components and fabricated structures.

A hydraulic press brake is used to perform bending operations with controlled force and suitable tooling. It helps manufacturers produce components with specific angles, dimensions and profiles according to production requirements.

Depending on the machine configuration and tooling, it can be used for different bending operations involving mild steel, stainless steel, aluminium and other suitable sheet metals.

Working Principle of C-Frame Hydraulic Sheet Metal Bending Machine

The machine works through a hydraulic force generation and transmission system. The hydraulic mechanism operates the upper moving assembly, which carries the bending tool.

During operation, the metal sheet is positioned on the lower die or supporting tooling. The hydraulic system generates the required force to move the upper tool downward towards the sheet.

As the upper tool presses the sheet against the lower die, the material undergoes plastic deformation and takes the required bending angle or profile.

The bending result depends on the applied force, material properties, sheet thickness, tooling geometry, die opening and machine configuration.

C-Frame Construction and Machine Design

The machine is designed with a C-frame structural arrangement that provides access to the working area from the front and allows sheet metal components to be positioned for bending operations.

The hydraulic pressing mechanism provides the force required for bending, while the upper and lower tooling determines the bending profile. An electrical control arrangement supports machine operation.

The machine structure, working area, tooling and hydraulic system can be customized according to the customer's manufacturing requirements.

Hydraulic Press Brake Manufacturer in India

Innotech Engineering Devices Private Limited is an OEM manufacturer of industrial machinery, testing machines and customized equipment based in Bhiwadi, Rajasthan, India.

We manufacture and supply hydraulic sheet metal bending machines for industrial production units, fabrication workshops, engineering companies and manufacturing facilities.

Our focus is on developing machines according to actual customer requirements rather than limiting customers to standard configurations. We offer customized machine designs based on required bending force, working length, sheet thickness, material type and tooling requirements.

Customized Hydraulic Sheet Metal Bending Machine

Different sheet metal applications require different bending capacities, working lengths and tooling configurations. Innotech provides customized hydraulic bending machine solutions according to customer specifications.

Customization can include hydraulic capacity, bending length, machine dimensions, upper and lower tooling, control arrangements and other application-specific requirements.

Our team can help identify a suitable machine configuration based on the customer's material specifications, production requirements and intended bending operations.

Hydraulic Press Brake Manufacturer and Supplier Across India

Innotech manufactures and supplies hydraulic press brake machines across India from its manufacturing facility in Bhiwadi, Rajasthan.

We serve customers in Delhi NCR, Haryana, Punjab, Rajasthan, Uttar Pradesh, Gujarat, Maharashtra, Madhya Pradesh, Karnataka, Tamil Nadu, Telangana, West Bengal and other industrial regions.

Whether you are looking for a Hydraulic Press Brake Manufacturer in India, a Sheet Metal Bending Machine Supplier in Bhiwadi or a customized hydraulic bending solution for your manufacturing facility, Innotech can assist with your requirements.

Frequently Asked Questions (FAQs)

1. What is a C-Frame Hydraulic Sheet Metal Bending Machine?

It is an industrial hydraulic press brake designed to bend and form metal sheets using a hydraulic pressing mechanism and suitable upper and lower tooling.

2. What materials can be bent using a hydraulic press brake?

Depending on machine capacity and tooling, it can be configured for mild steel, stainless steel, aluminium and other suitable sheet metals.

3. What is the working principle of a hydraulic press brake?

It uses hydraulic force to move the upper bending tool towards the lower die, applying pressure to the metal sheet and producing the required bend.

4. Can Innotech customize hydraulic press brake machines?

Yes. Innotech offers customized manufacturing according to customer specifications, including bending capacity, working length, material thickness and tooling arrangements.

5. What determines the price of a hydraulic sheet metal bending machine?

The price depends on bending capacity, working length, material thickness, hydraulic system, frame construction, tooling and customization requirements.

6. Where can I buy a hydraulic sheet metal bending machine in India?

You can contact Innotech Engineering Devices Private Limited, an OEM manufacturer and supplier based in Bhiwadi, Rajasthan, for product details and customized quotations.

Consult Our Experts for Hydraulic Press Brake Requirements

Looking for an industrial hydraulic sheet metal bending machine for your manufacturing or fabrication facility?

Contact Innotech Engineering Devices Private Limited for technical consultation, machine customization, product details and the latest price.
Manufacturer: Innotech Engineering Devices Private Limited
Email: info@innotechgroup.net
Phone: +91 9810431604
Location: H-307, RIICO Industrial Area, Karoli, Tapukara, Bhiwadi, Rajasthan, India.

Consult our experts today for a hydraulic press brake manufactured according to your specifications.
